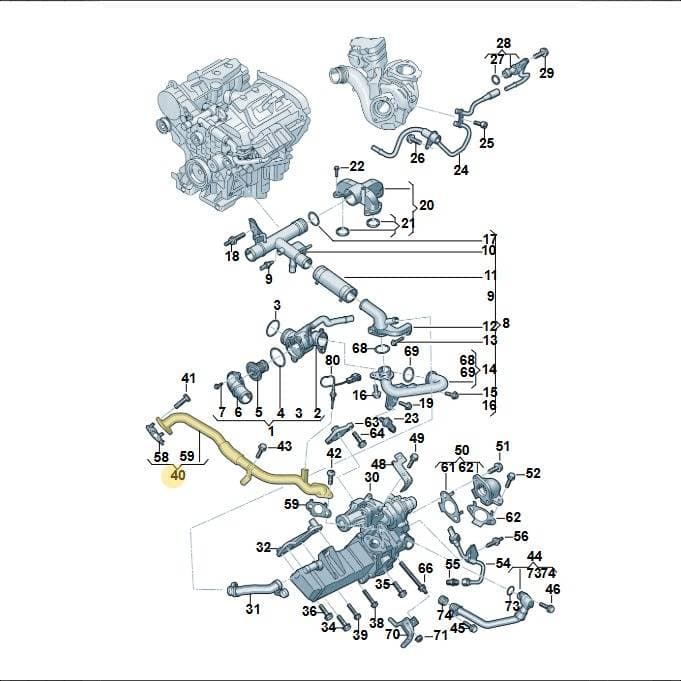

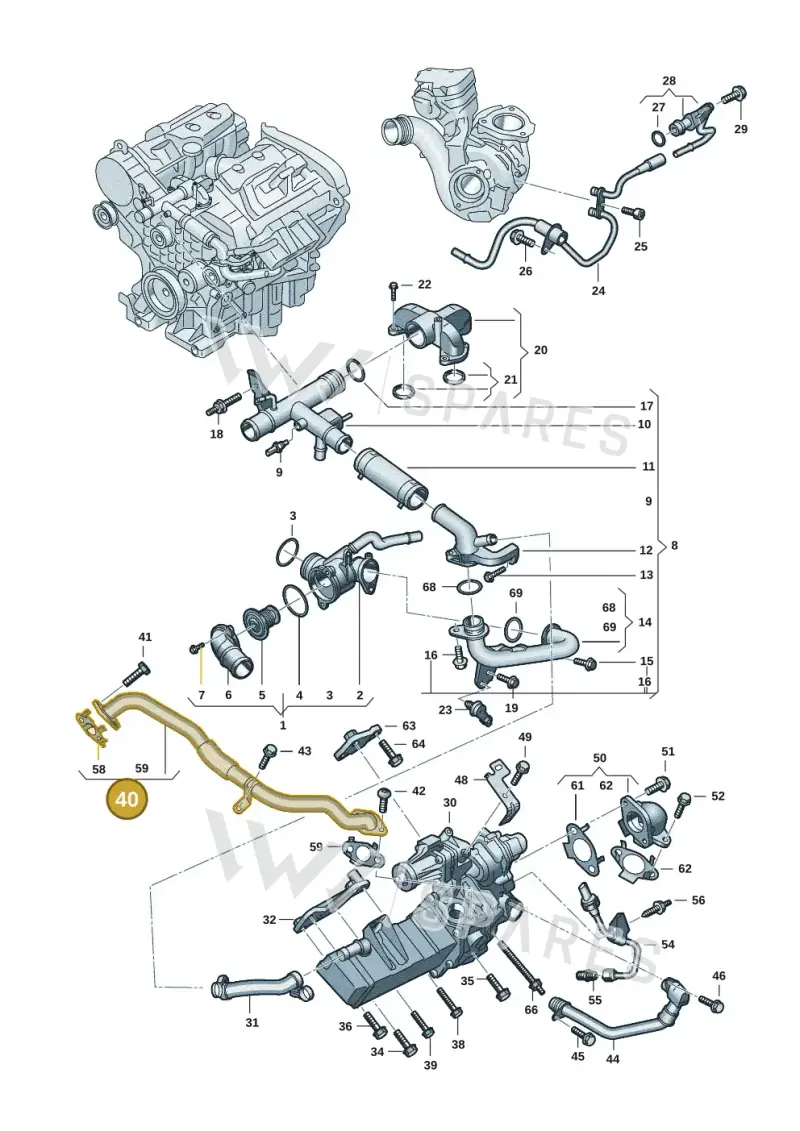

Number 40 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Connecting Pipe, part number 0XW131509. This pipe connects various components within the exhaust gas recirculation system, ensuring proper flow. It is located at position 40 in the diagram. Genuine OEM pipes are manufactured to exact specifications for leak-free connections and optimal flow.
Catalogue entry: PIPE.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 54 × 19.5 × 7.5 cm
- Shipping weight
- 0.62 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleConnecting Pipe — locate 0XW131509 Volkswagen Connecting Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Water Pump 0XW121011F
- 1Coolant Rg 0XW121116
- 2Seal 0XW121043D
- 2Coolant Rg 0XW121117
- 3Pulley 0XW121031B
- 3Seal 0XW121043F
- 4Seal 0XW121043C
- 4Bolt WHT011144
- 5Coolant Rg 0XW121113B
- 5Screw WHT010416
- 6Connection 0XW121132
- 7Part WHT010362
- 8Water Pipe 0XW121075C
- 9Sender 0XW919501A
- 10Water Pipe 0XW121075B
- 11Hose 0XW121058
- 12Connection 0XW121438
- 13Bolt WHT010384
- 14Water Pipe 0XW121075D
- 15Screw WHT010418
- 16Screw WHT010415
- 17Seal Ring 0XW121065
- 18Bolt WHT011044
- 20Connection 0XW121128
- 21Seal Ring 0XW121041A
- 22Screw WHT010417
- 24Water Pipe 0XW121051A
- 25Screw WHT010814
- 26Part WHT010363
- 27Seal Ring 0XW121065C
- 28Water Pipe 0XW121051D
- 29Part WHT010368
- 30Cooler 0XW131508A
- 30Radiator 0XW131508C
- 31Hose 0XW122051
- 32Bracket 0XW131159B
- 34Screw WHT010772
- 36Part WHT010583
- 38Part WHT010349
- 41Part WHT010453
- 43Screw WHT010457
- 44Water Pipe 0XW121049
- 48Bracket 2HJ971262
- 50Pipe 0XW131521C
- 52Part WHT010960
- 54Sensor 0XW906277A
- 55Adapter 0XW131739
- 56Bolt WHT011121
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Amarok twin cab | 2022- | 40 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
0XW131509 Volkswagen Connecting Pipe | Genuine OEM is fitted on: Amarok twin cab 2022-.
