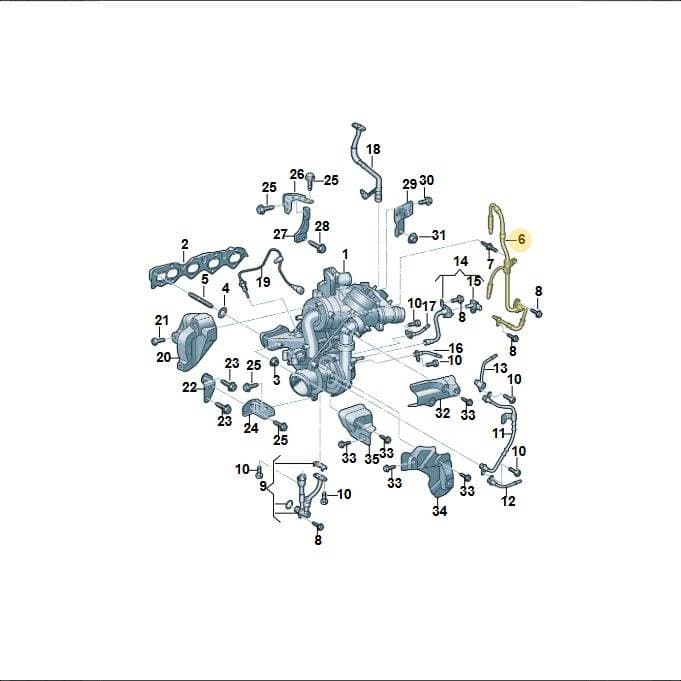

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Oil Pipe, part number 0XW145771C. This oil pipe transports oil to the turbocharger for lubrication and cooling. It is identified in the diagram as part of the turbocharger's oil supply system. The pipe's design ensures optimal oil flow to the turbocharger, which is essential for its operation under high temperatures and pressures. Genuine OEM ensures the correct specifications for reliable performance and durability.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 65 × 20 × 10 cm
- Shipping weight
- 0.43 kg
Parts diagram & fitment
1 vehicleOil Pipe — locate 0XW145771C Volkswagen Oil Pipe | Turbocharger Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(39)
- 1Turbo 0XW145701A
- 1Turbo 0XW145703B
- 1Turbo 0XW145703F
- 1Turbo 0XW145703K
- 1Turbo 0XW145703L
- 2Seal 0XW253039A
- 2Seal 0XW253115B
- 3Bolt WHT011312
- 3Stud WHT011360
- 4Part WHT010579
- 4Part WHT011275
- 5Shield 0XW253041F
- 5Washer 0XW253185
- 6Water Pipe 0XW121497A
- 6Bolt WHT010972
- 7Oil Pipe 0XW145771D
- 7Bolt WHT010395
- 8Hose 0XW145734G
- 8Oil Line 0XW145734F
- 9Hose 0XW145734E
- 9Seal 0XW145736P
- 10Part WHT010964
- 15Hose 2HJ145695B
- 15Hose 2HJ145695C
- 16Grommet 2HJ145218A
- 17Spacer 2HJ129734B
- 18Bolt WHT010952
- 19Part WHT010739
- 22Part WHT010399
- 23Bolt WHT010965
- 24Crossstrut 0XW145535C
- 25Bolt WHT011406
- 26Part WHT010478
- 27Bolt WHT010706
- 28Shield 0XW253703E
- 29Screw WHT010936
- 30Shield 0XW253041D
- 32Shield 0XW253703D
- 33Shield 0XW253041E
Diagrams & fitment data powered by oemdiagrams.com
0XW145771C Volkswagen Oil Pipe | Turbocharger Cooling is fitted on: Amarok twin cab 2022-.
