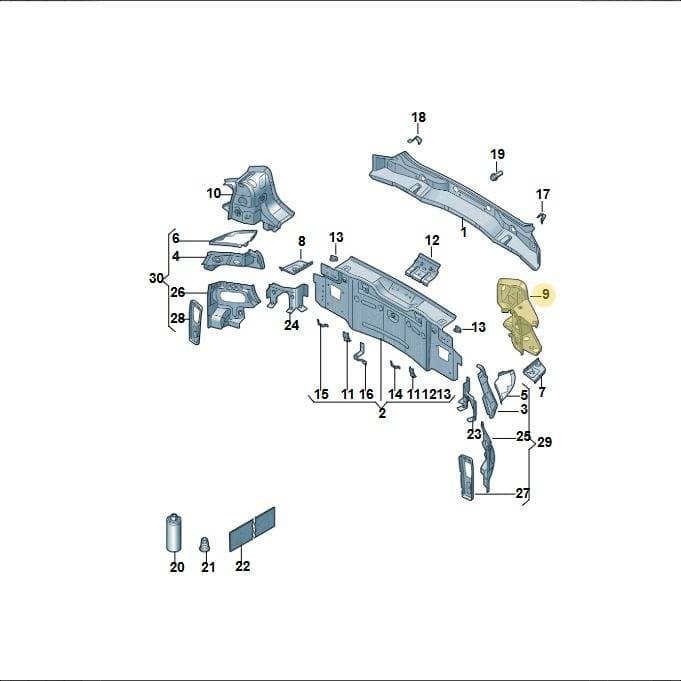

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal Channel Reinforcement, part number 11A813331A. This component reinforces the channel where weather seals are installed, ensuring a proper seal against the elements. It is located at position 9 in the diagram. Constructed from robust materials for long-lasting performance.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping weight
- 2.58 kg
Parts diagram & fitment
1 vehicleReinforcement For Seal Channel — locate 11A813331A Volkswagen Seal Channel Reinforcement | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(37)
- 1End Plate 11A813309
- 2End Plate 11A813301
- 2End Plate 11A813301B
- 7Bracket 11A813393
- 8Bracket 11A813394
- 9Reinforce 11E813331
- 9Reinforce 11E813331A
- 9Reinforce 11A813331
- 10Reinforce 11E813332
- 10Reinforce 11E813332A
- 10Reinforce 11A813332
- 10Reinforce 11A813332A
- 11Bracket 10A813745
- 12Reinforce 11A813323
- 13Bracket 5NA803849A
- 14Bracket Mt 11A813269
- 15Bracket Mt 11A813270
- 16Bracket 11A813175
- 17Support 11A813755
- 18Support 11A813756
- 19Screw N91017602
- 19Screw N90652602
- 202-pack Adh D180003M3
- 23Support 11A804749
- 24Support 11A804750
- 29Support 11E813319
- 29Support 11E813319A
- 29Support 11E813319B
- 29Support 11A813319
- 29Support 11A813319B
- 29Support 11A813319C
- 30Support 11E813320
- 30Support 11E813320A
- 30Support 11E813320B
- 30Support 11A813320
- 30Support 11A813320B
- 30Support 11A813320C
Diagrams & fitment data powered by oemdiagrams.com
11A813331A Volkswagen Seal Channel Reinforcement | Genuine OEM is fitted on: ID.4 Pro 2020-2023.
