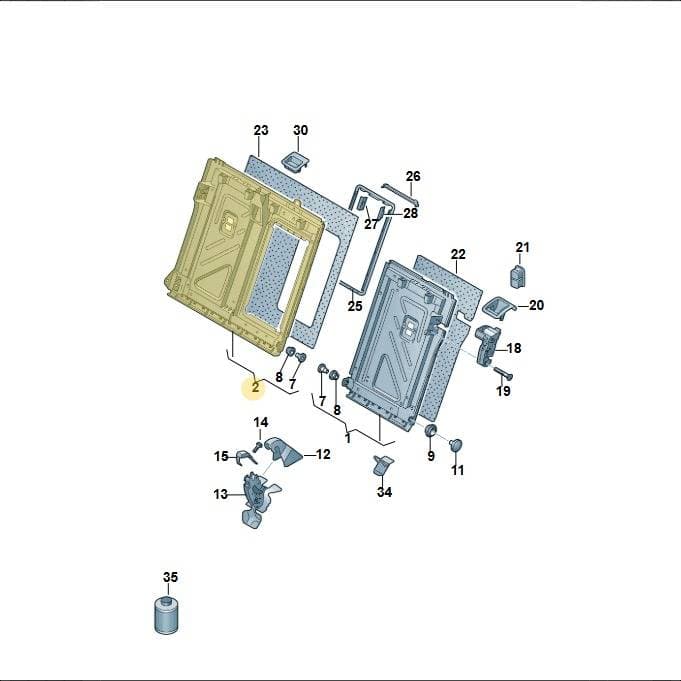

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Seat Frame, part number 11A885502ACA9. This component serves as the primary structural element for the rear seat assembly, providing support and mounting points. It is positioned as part of the rear seat structure. Features a black finish, indicated by the CA9 suffix. Genuine OEM seat frames ensure precise fitment and structural integrity for passenger safety and comfort.
Technical details
- Category
- Seats
- Customs (HS) code
- 94019990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 70 × 54 × 9.5 cm
- Shipping weight
- 4.43 kg
Parts diagram & fitment
1 vehicleBackrest Frame — locate 11A885502ACA9 Volkswagen Rear Seat Frame | Black CA9 in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Frame-back 11A885501
- 2Frame-back 11A885502
- 2Frame-back 11A885502A
- 2Part 11A885502C
- 7Bush 3C0885166
- 8Grommet 5Q0885649
- 9Grommet 5Q0885678B
- 12Cover 11A886197
- 14Bolt N10751101
- 15Clamp 5Q0886193
- 18B Rest RelRight5Q0885682J
- 18B Rest RelRight5Q0885682K
- 18B Rest RelRight5Q0885682M
- 18B Rest RelLeft5Q0885681J
- 18B Rest RelLeft5Q0885681K
- 18B Rest RelLeft5Q0885681M
- 19Screw N91128701
- 20TrimLeft5G0885893B
- 20TrimRight5G0885894B
- 21Trim 3G0886747
- 22Trim 5G0885753
- 23Trim 5G0885754
- 25Frame 5G0885219A
- 26Strip 8V0885771
- 27Panel 5G0886331D
- 28Panel 5G0886331C
- 35Adhesive D001210M2
Diagrams & fitment data powered by oemdiagrams.com
11A885502ACA9 Volkswagen Rear Seat Frame | Black CA9 is fitted on: ID.4 Pro 2020-2023.
