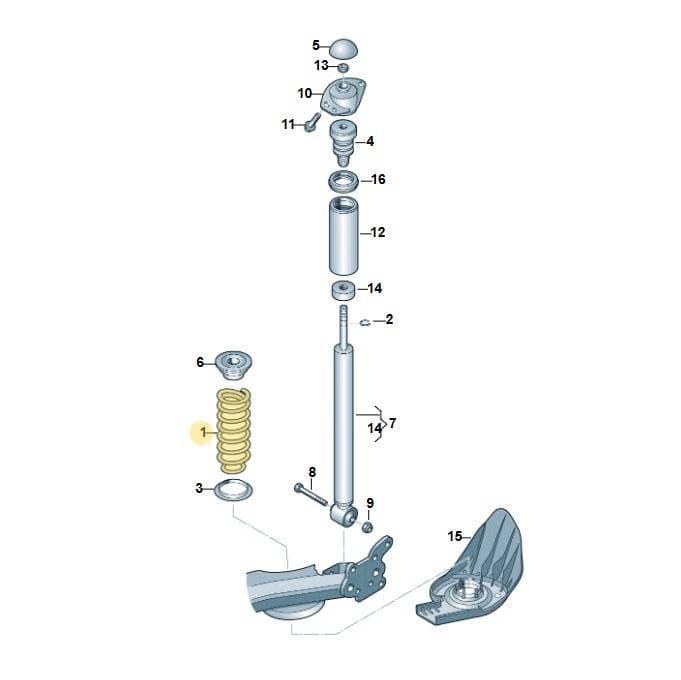

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Coil Spring, part number 1J0511115AL. This coil spring supports the vehicle's weight and absorbs road shocks for a comfortable ride. It is located at the rear of the vehicle. The spring is made of steel and is designed to withstand significant compression and expansion cycles.
Catalogue entry: COILSPRING ×2; PAINT MARK silver; PAINT MARK green.
Fitted with: 1J0511115AM COILSPRING, 1J0511115BC COILSPRING, 1J0511115BD COILSPRING, 1J0511115AE COILSPRING, 1J0512109 UNDERLAY, 1J0512149B UNDERLAY.
Technical details
- Category
- Suspension
- Country of origin
- Czech Republic
- Customs (HS) code
- 73202020
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 33.5 × 11.5 × 11.5 cm
- Shipping weight
- 1.55 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0YB
- 1JA
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
13 vehiclesCoil Spring — locate 1J0511115AL Volkswagen Rear Coil Spring | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly25
- 1Part 6Q0511115CB
- 1Part 6Q0511115CC
- 2Circlip 8D0512097
- 3Underlay 1J0512109
- 4Buffer 6Q0512131B
- 4Buffer 1J0512131
- 5Part 6R0512135
- 6Underlay 1J0512149B
- 7Part 6C0513025AH
- 7Part 6R0513025
- 7Part JZW513025E
- 7Part JZW598025E
- 7Part 6RF513025A
- 7Shock Abs 6RF513025B
- 7Shock Abs 6RU513025A
- 7Part JZW513025L
- 8Bolt N90517304
- 9Ut Hexagon Nut Self-locking Hexagon Nut N10295101
- 10Bearing 6R0513353
- 11Bolt N90648402
- 12Pipe 6Q0513425
- 12Pipe 1J0513425
- 13Ut Hexagon Nut Self-locking Hexagon Nut N10304102
- 14Part 6Q0513269H
- 16Ret Ring 6Q0513161A
Vehicle fitment table13
Europe (8)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Toledo Reference | 2015-2019 | 1 | ||
| Rapid | 2012-2022 | 1 | ||
| Toledo Reference | 2012-2015 | 1 | ||
| Polo | 2009-2014 | 1 | ||
| TOLEDO/LEON/LEON-4 | 2001-2006 | 1 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 1 | 2 | K8G,0A2,1D2,1JA,1X0 |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 1 | ||
| Golf | 1998-2000 | 1 |
Other markets (5)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Polo | 2014-2022 | 1 | ||
| Polo 1.6 | 2013-2022 | 1 | ||
| Jetta City "Mex"08> | 2007- | 1 | ||
| Golf 'R32' n. "USA" | 2004-2004 | 1 | ||
| Jetta USA | 2001-2005 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
1J0511115AL Volkswagen Rear Coil Spring | Genuine OEM is fitted on: Toledo Reference 2015-2019; Rapid 2012-2022; Toledo Reference 2012-2015; Polo 2009-2014; TOLEDO/LEON/LEON-4 2001-2006; GOLF/VAR./4MOT. A4 02 2001-2002; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; Polo 2014-2022; Polo 1.6 2013-2022; Jetta City "Mex"08> 2007-; Golf 'R32' n. "USA" 2004-2004; Jetta USA 2001-2005.
