1J0612041AN Vacuum Pipe With Non-Return Valve
€49.24 excl. VAT
- 1J0612041AGNot stocked
Jan 1999 - 1J0612041ANThis pageDiscontinued
Aug 2022
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

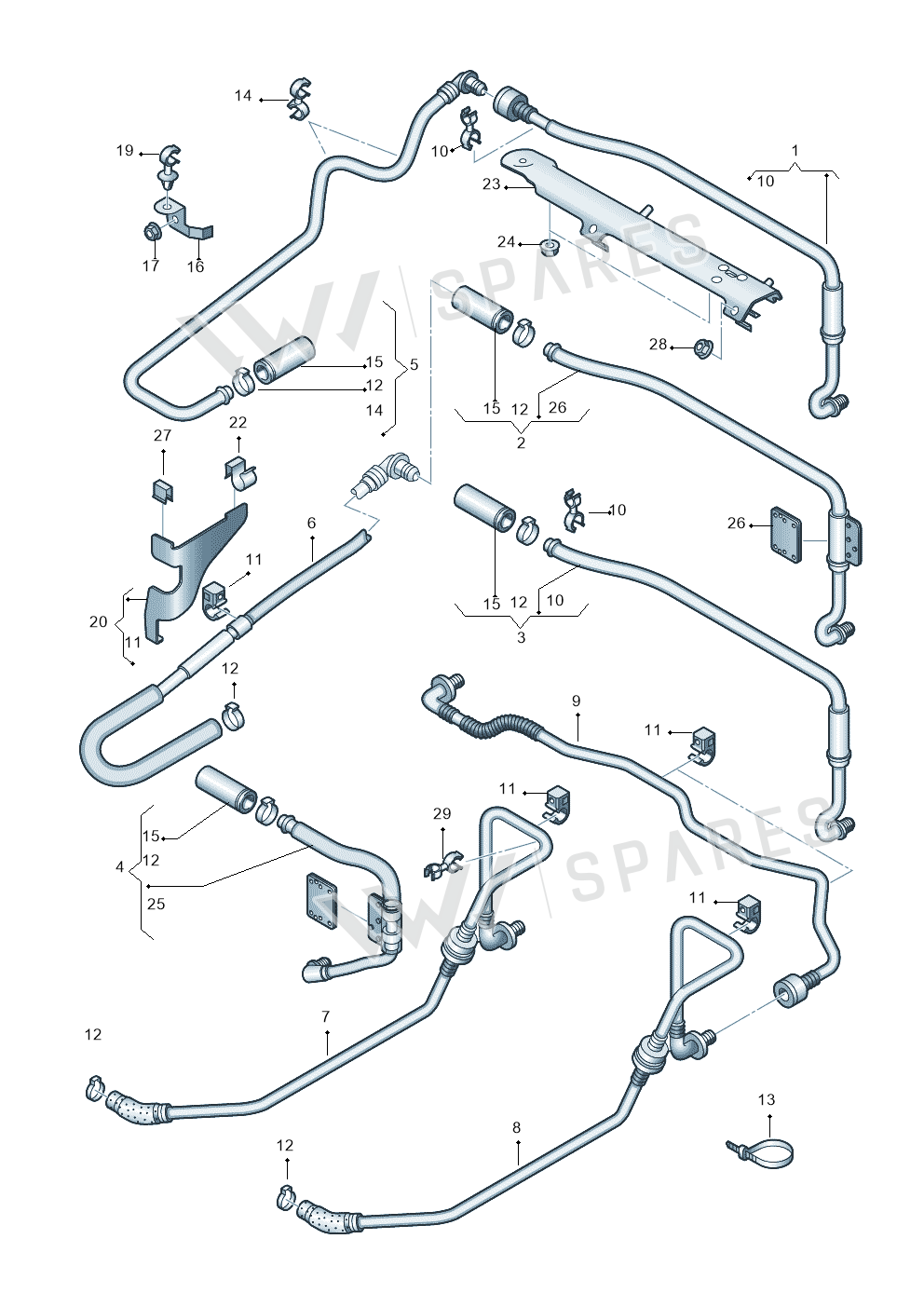

5 vehiclesVacuum Pipe With Non-return Valve — locate Vacuum Pipe With Non-Return Valve in the official exploded view and explore the surrounding assembly.
Parts in this assembly23
- 2Press Pipe 8L5612041K
- 3Press Pipe 8L5612041G
- 4Press Pipe 8L6612041G
- 5Press Pipe 8L9612041D
- 6Press Pipe 8L9612041M
- 7Press Pipe 1J0612041GQ
- 9Press Pipe 1J2612041F
- 10Retainer 893201687B
- 11Clip 4A0612797
- 12Clamp N10258201
- 13Cable Tie 443957818C
- 14Retainer 054133687B
- 17Ut"hex Nut Self-locking With Washer Hex Nut N90286703
- 19Cable Tie N90666101
- 20Bracket 8L9612077
- 22Bracket 1J0133396
- 23Bracket 8L9612391C
- 24Part N90708801
- 25Heat Insul 8L9121653
- 26Heat Insul 8L9121653A
- 27Clip 8L9612519A
- 28Part N90132603
- 29Bracket N10431201
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi TT Coupe/Roadster | 1999-2002 | 7 | 1 | PR:T8C |
| TOLEDO/LEON/LEON-4 | 1998-2001 | 3 | ||
| Golf | 1998-2000 | 3 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 3 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf BR/US | 1999-2001 | 3 | 1 | F |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta USA | 2001-2005 | 1 | PR:T8C+G0C+ |
Diagrams & fitment data powered by oemdiagrams.com
Vacuum Pipe With Non-Return Valve is fitted on: Audi TT Coupe/Roadster 1999-2002; TOLEDO/LEON/LEON-4 1998-2001; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; Golf BR/US 1999-2001.
