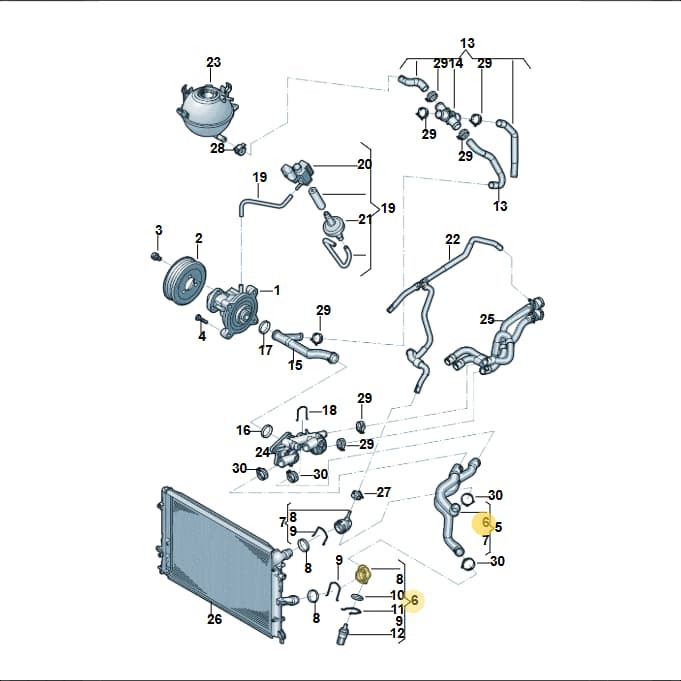

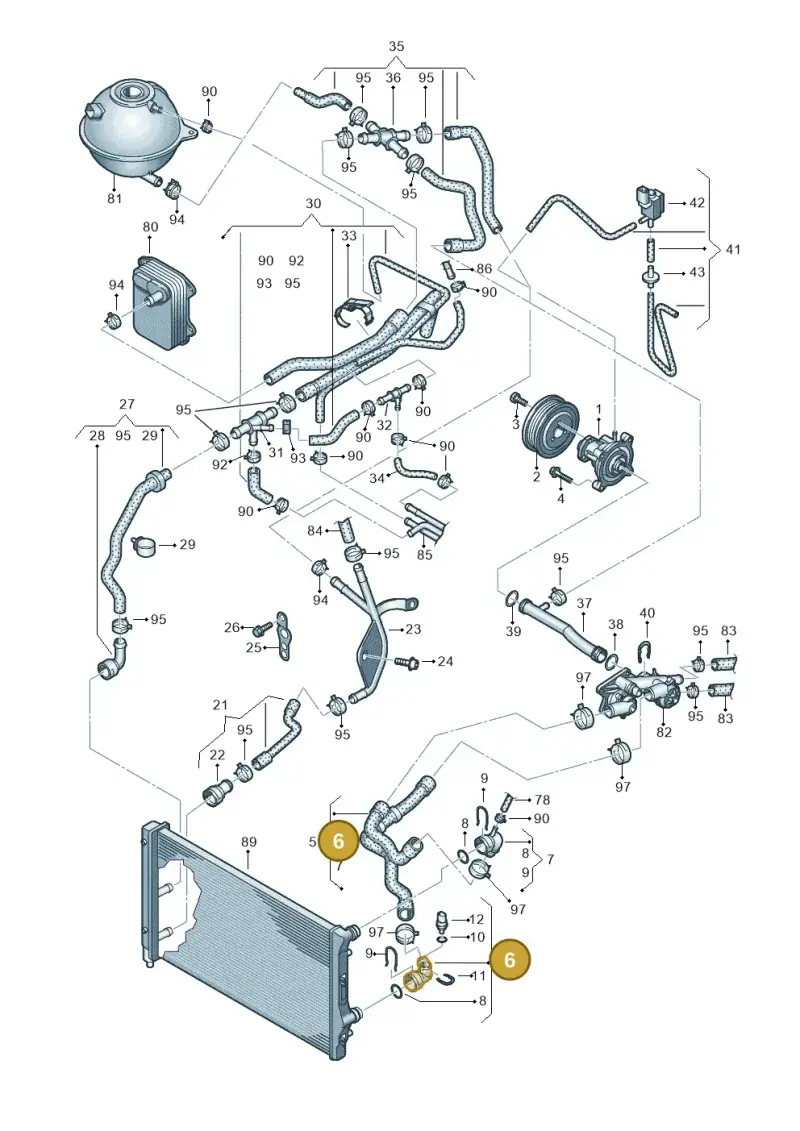

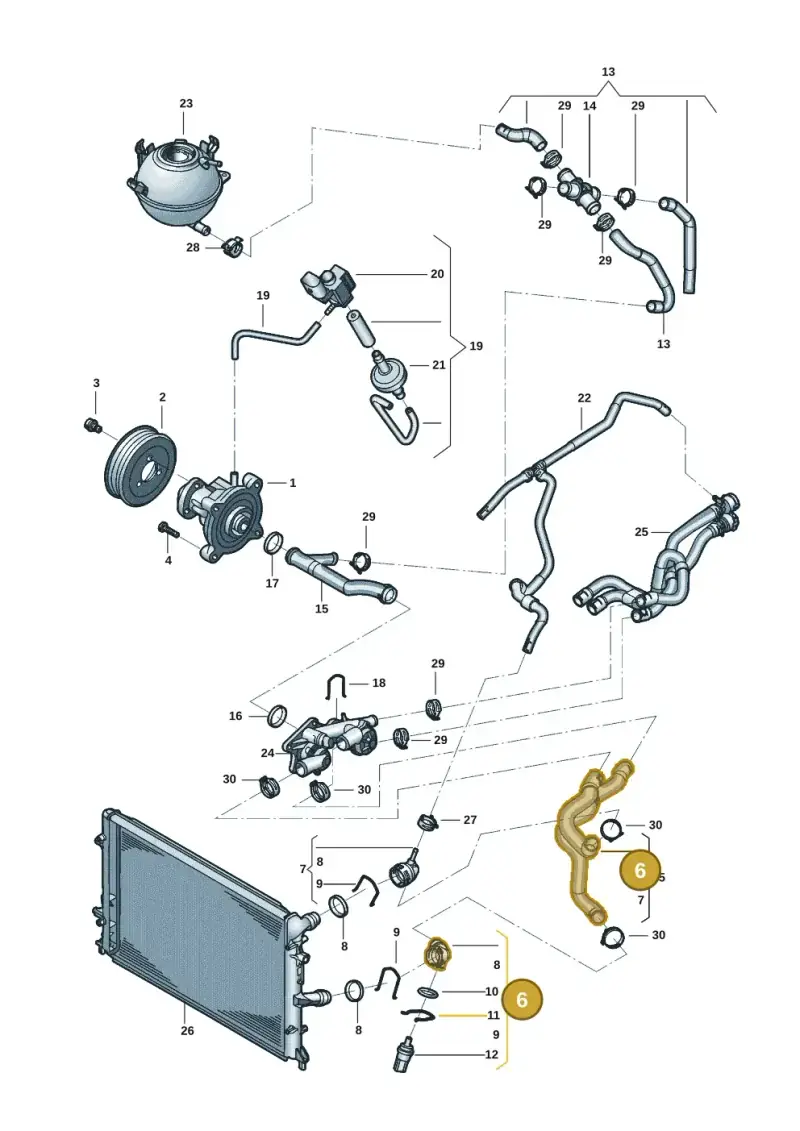

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Hose Coupling, part number 1K0122291CE. This component is designed to create a robust and leak-proof connection between various coolant hoses within the engine cooling system, ensuring proper circulation of coolant. It is located within the engine cooling system, connecting hoses. Weighing 0.088 kg, it measures 0.11 m in length, 0.09 m in width, and 0.05 m in height. Using a genuine OEM coupling ensures the correct material resistance to heat and coolant chemicals, along with precise dimensions for a secure fit, preventing leaks and maintaining engine temperature stability.
Technical details
- Category
- Engine Cooling
- Country of origin
- Spain
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11 × 9 × 5 cm
- Shipping weight
- 0.09 kg
Parts diagram & fitment
24 vehiclesQuick Acting Coupling — locate 1K0122291CE Volkswagen Coolant Hose Coupling | Engine Cooling in the official exploded view and explore the surrounding assembly.
Parts in this assembly(46)
- 1Water Pump 03F121004B
- 1Water Pump 03F121004EX
- 2Pulley 03F121031A
- 3Screw N91052201
- 4Bolt N91071701
- 5Part 1K0121049CB
- 5Part 1K0121049CF
- 6Coupl Piece 1K0122291BR
- 7Coupl Piece 1K0122291BE
- 7Coupl Piece 1K0122291BQ
- 8Seal Ring N90765301
- 9Spring 1J0121142
- 10Seal Ring N90316801
- 11Spring 032121142
- 12Sender 06A919501A
- 21Part 1K0122051GA
- 21Part 1K0122051GT
- 22Coupl Piece 3B0122291B
- 23Water Pipe 1K0121070CD
- 24Bolt N10009506
- 25Retaining 03C121079B
- 26Bolt N10216803
- 27Part 1K0122101JE
- 27Part 1K0122101HL
- 28Coupl Piece 1K0122291H
- 28Coupl Piece 1K0122291B
- 29Bracket 3C0121093D
- 30Hose 1K0122058M
- 31Junction 1K0121087P
- 33Bracket 1K0121093BM
- 34Hose 1K0121447EK
- 35Hose 1K0122109BM
- 36Junction 1K0121087T
- 37Water Pipe 03F121065A
- 38Seal Ring 03C121666
- 39Seal Ring 03C121665
- 40Spring 03F121142
- 41Line 03F121713
- 42Valve 037906283C
- 43Valve 046905291B
- 90Clamp N90686701
- 92Clamp N90770201
- 93Clamp N90926401
- 94Clamp N90686902
- 95Clamp N90687001
- 97Clamp N90687201
Diagrams & fitment data powered by oemdiagrams.com
1K0122291CE Volkswagen Coolant Hose Coupling | Engine Cooling is fitted on: golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Golf 2011-2013; Golf Plus 2011-2014; jetta 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Yeti 2013-2017; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013.
