Product overview

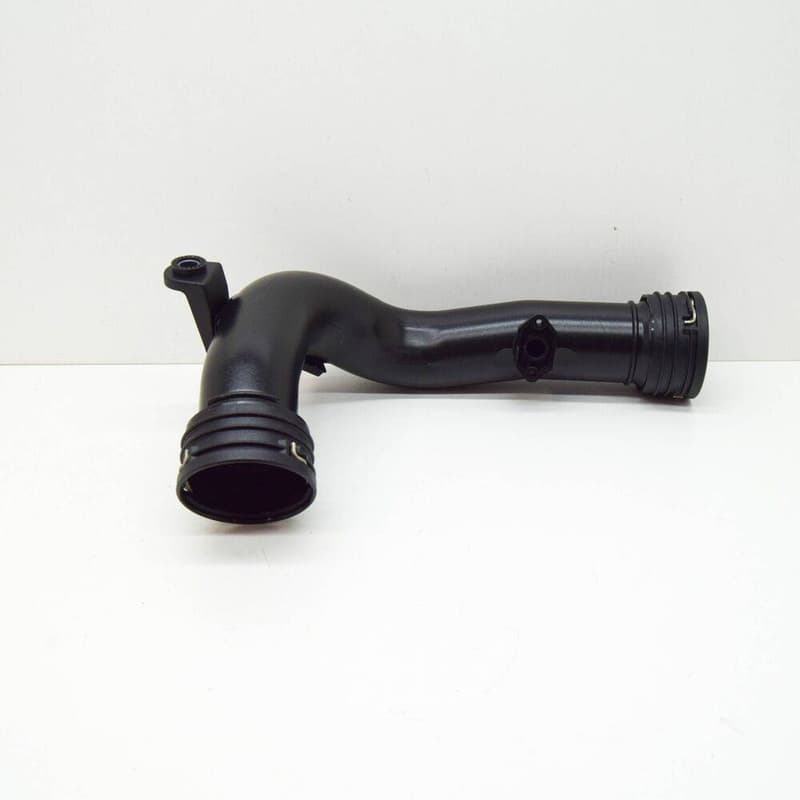

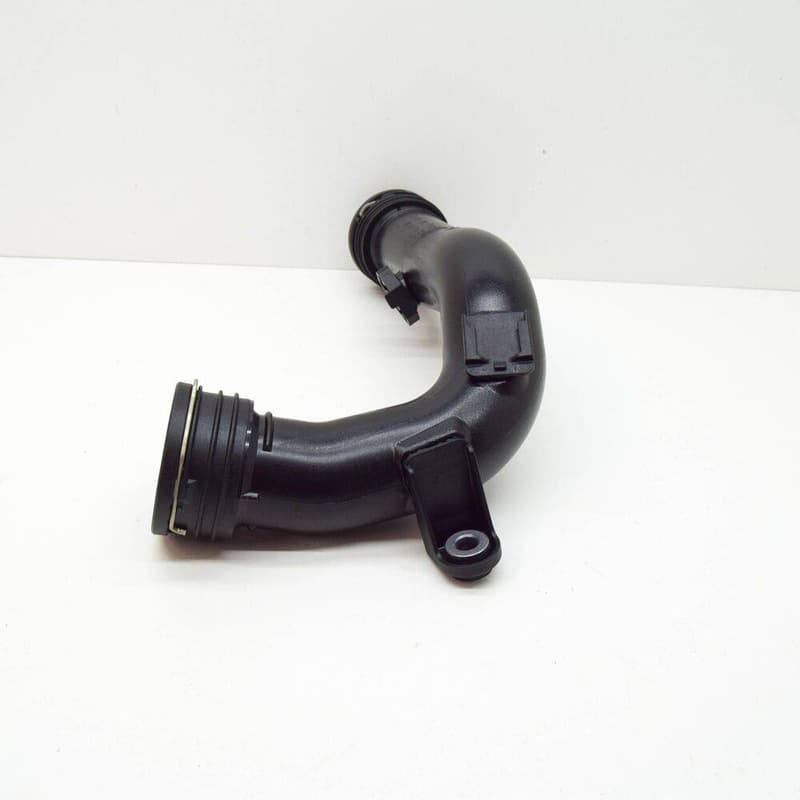

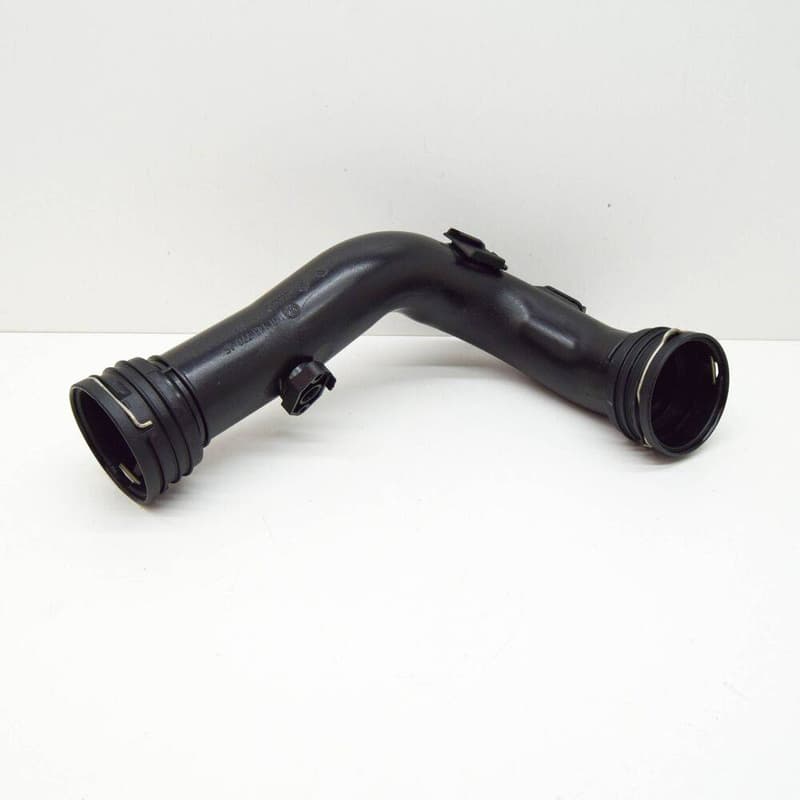

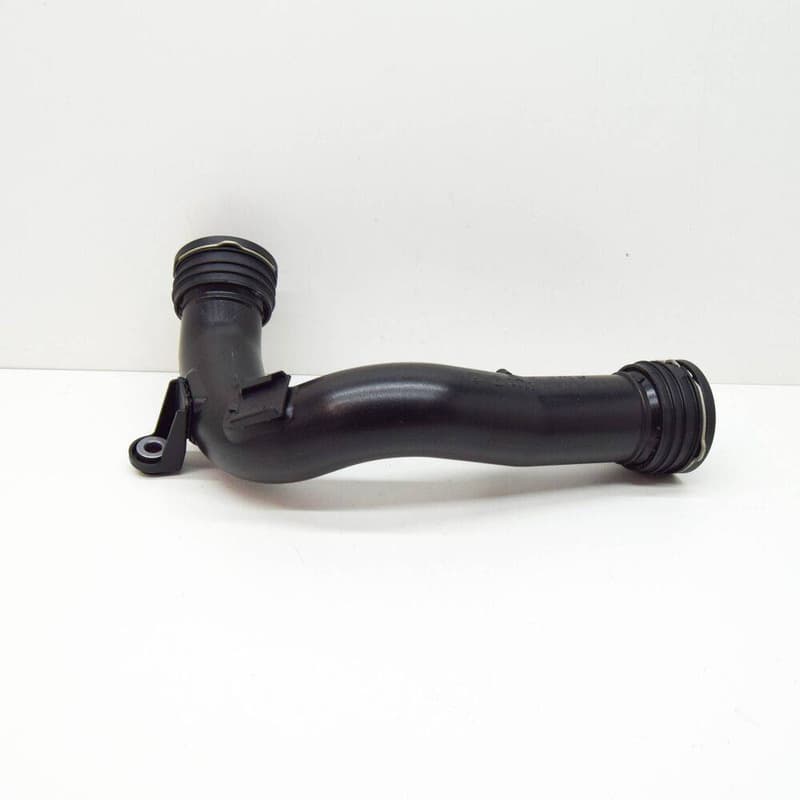

Genuine OEM Audi Charge Air Cooler Air Pipe, part number 1K0145770AF. This pipe is crucial for directing cooled air from the intercooler to the engine intake, maintaining proper air charge temperature. It is positioned within the engine's intake system. Weighing 0.458 kg and measuring approximately 0.399 m in length, this pipe is designed for precise routing and secure connections. Opting for a genuine OEM pipe ensures correct fitment, material integrity, and resistance to temperature and pressure fluctuations, critical for turbocharger system reliability.
Technical details
- Category
- Intake & Turbo
- Country of origin
- Italy
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39.9 × 18.7 × 11.3 cm
- Shipping weight
- 0.46 kg
Parts diagram & fitment
23 vehiclesAir Pipe — locate 1K0145770AF Audi Charge Air Cooler Air Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 1Cooler 1K0145803L
- 1Cooler 1K0145803S
- 1AClip 1J0145769H
- 1BSeal 1K0121345D
- 1CSeal 1K0121345E
- 3Seal Ring 3C0145117F
- 4Hose 1K0145834L
- 5Clip 1J0145769G
- 6Air Pipe 1K0145770AA
- 6ADamper 7M0129808
- 6BScrew N0138845
- 7Hose 1K0145838D
- 7Hose 1K0145838N
- 8ASeal Ring 3C0145117H
- 9Pipe 1K0145832E
- 9Pipe 1K0145832B
- 10Clip 1K0145769J
- 10AClip 1J0145769F
- 11Pipe 1K0145762CL
- 11Pipe 1K0145762CK
- 12Seal Ring 3C0145117
- 13Hose 1K0145790C
- 13Hose 1T0145790B
- 15Bush 1K0129734A
- 15ASpacer 6N0129734
- 16Grommet 1K0129669A
- 16AGrommet 867129669
- 17Screw N90172004
- 18Sensor 038906051B
- 18Sensor 038906051C
- 19Bolt N10208901
- 19ABolt N90993601
- 25Bolt N90817003
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
1K0145770AF Audi Charge Air Cooler Air Pipe | Genuine OEM is fitted on: GOLF 2003-2005; Jetta "USA"05> 2005-; GOLF PLUS 05> 2005-; Passat/4Motion 2005-2007; Golf/Rabbit 2005-2007; TOURAN 2005-2006; JETTA 06> 2006-; TOURAN 2006-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; passat estate 2008-2011; Touran 1.9 2008-2010; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013; octavia ambiente 2008-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-.
