1K0145770R Air Pipe
€73.05 excl. VAT
- 1K0145770RThis pageNot stocked
May 2010 - 1K0145770AKCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

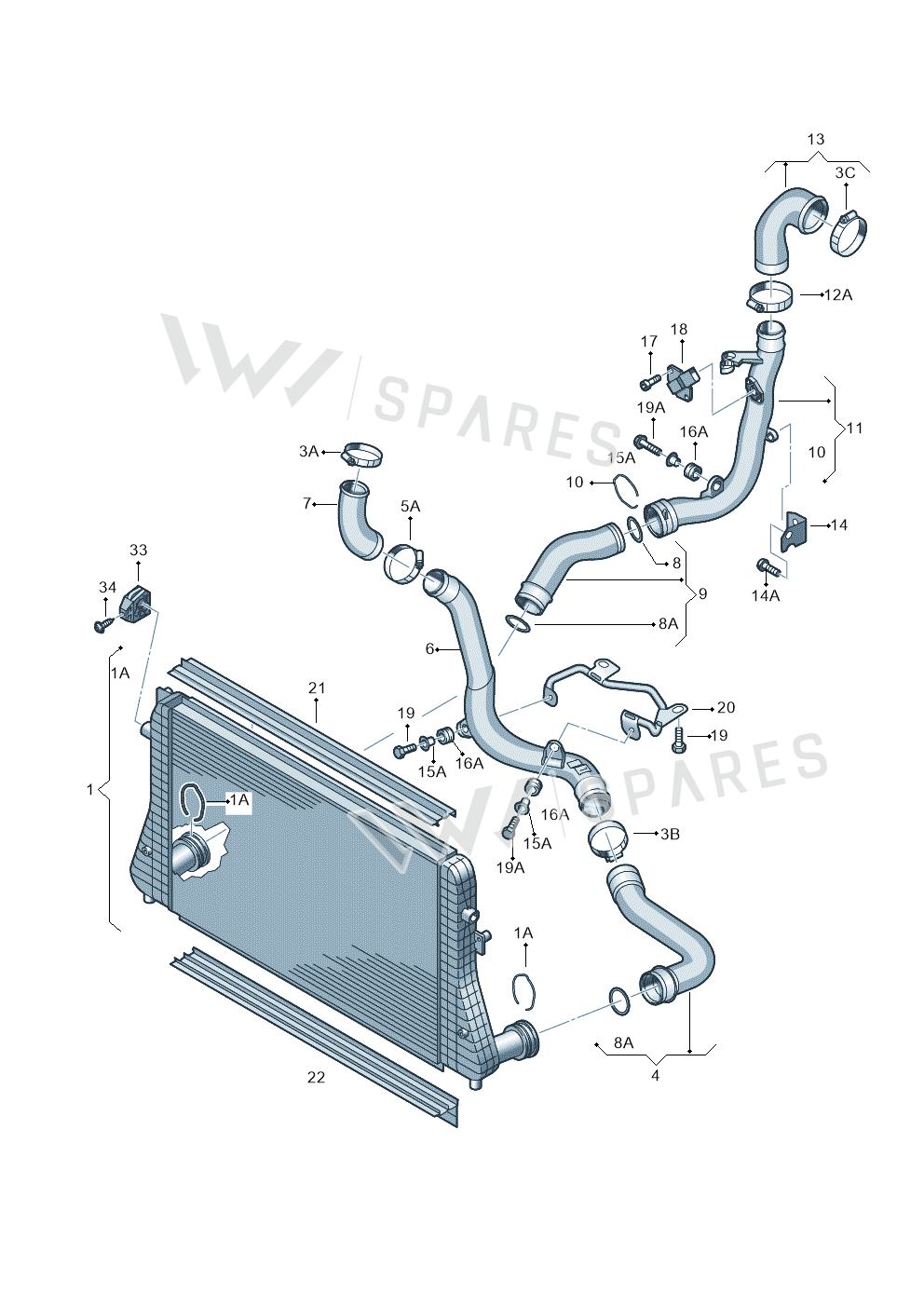

9 vehiclesAir Pipe — locate Air Pipe in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Cooler 1K0145803T
- 1AClip 1J0145769D
- 1AClip 1K0145769J
- 3AClamp N10518801
- 3BClamp N10518901
- 3CClamp N10544401
- 4Hose 1K0145832F
- 6Pipe 1K0145840K
- 7Hose 1K0145828C
- 8Seal Ring 3C0145117D
- 9Hose 1K0145834P
- 10Clip 1K0145769H
- 13Hose 1K0145838L
- 14SupportRight03C199207A
- 14Bracket 1K0145961B
- 14APart N91026802
- 14ABolt N10335202
- 15ASpacer 6N0129734
- 16AGrommet 867129669
- 17Screw N90288606
- 18Sensor 03G906051E
- 19Screw N91104901
- 19ABolt N90993601
- 20Part 1K0145812B
Vehicle fitment table9
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| jetta | 2008-2011 | 11 | 1 | |
| GOLF VARIANT 07> | 2007- | 11 | 1 | |
| JETTA 06> | 2006- | 11 | 1 | |
| TOURAN | 2006- | 11 | 1 | D4P |
| GOLF PLUS 05> | 2005- | 11 | 1 | TF0 |
| JETTA 06> | 2005- | 11 | 1 | |
| TOURAN | 2005-2006 | 11 | 1 | D4P |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 11 | 1 | D4P |
| Golf/Rabbit | 2005-2007 | 11 | 1 | D4P |
Diagrams & fitment data powered by oemdiagrams.com
Air Pipe is fitted on: jetta 2008-2011; GOLF VARIANT 07> 2007-; JETTA 06> 2006-; TOURAN 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; TOURAN 2005-2006; Golf/Rabbit 08> 2007-; Golf/Rabbit 2005-2007.
