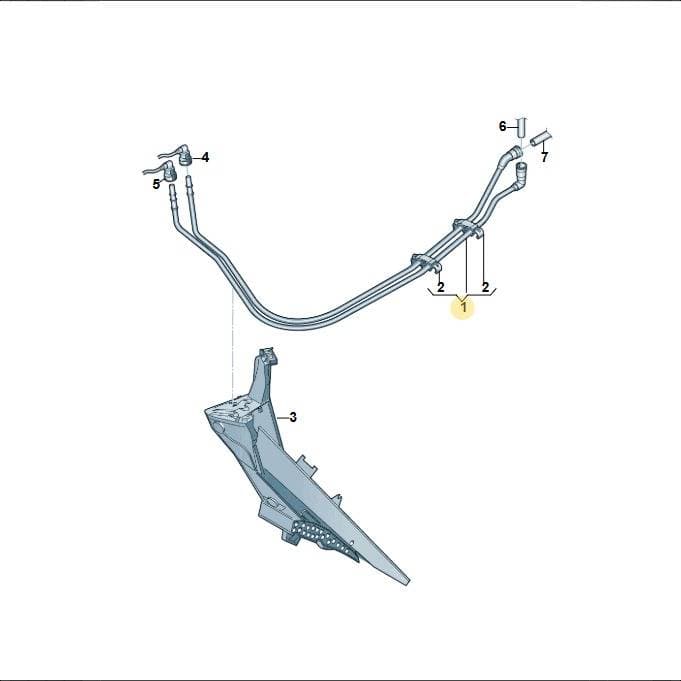

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Line Set, part number 1K0200059CB. This set of fuel lines connects various components of the fuel system. It is located in the fuel system assembly. The set has a length of 2.21 meters and weighs 0.15 kg. Genuine OEM fuel lines are manufactured to precise specifications to prevent leaks and ensure proper fuel flow.
Technical details
- Category
- Fuel System
- Country of origin
- Czech Republic
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 221 × 5.5 × 7 cm
- Shipping weight
- 0.15 kg
Parts diagram & fitment
25 vehiclesLines — locate 1K0200059CB Volkswagen Fuel Line Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(23)
- 1Fuel Line 1K0201293E
- 1Fuel Line 1K0201293B
- 2Fuel Line 1K0201294C
- 2Fuel Line 1K0201294J
- 2Fuel Line 1K0201294B
- 3Part 1K0200059BC
- 3ALines 1K0200059P
- 3ALines 1K0200059M
- 4Clip 1H0201449
- 5Heat Insul 1K0201961C
- 6Cover 1K0201970
- 7Fuel Line 1K0201418B
- 8Fuel Line 1T0201418C
- 9Filter 1K0201051K
- 9Filter 6Q0201051J
- 10Filter 6Q0201511
- 11Filter 6X0201511B
- 12Screw N90496802
- 13Part 6Q0201398
- 14Regulator 6Q0201559A
- 16Spacer 1K0201958A
- 17Seal Ring 6Q0201621
- 18Seal Ring 6Q0201844
Diagrams & fitment data powered by oemdiagrams.com
1K0200059CB Volkswagen Fuel Line Set | Genuine OEM is fitted on: GOLF 2003-2005; GOLF PLUS 05> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; EOS-Cabriolet-Coupe 2006-; TOURAN 2006-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; Touran 1.9 2008-2010; jetta variant 2009-2014; Touran 2.0 2010-2015; Eos BlueMotion 2010-2015; Golf Cabriolet 2011-2016; Golf Plus 2011-2014; Scirocco 2.0 2014-2017; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; Yeti 2013-2017.
