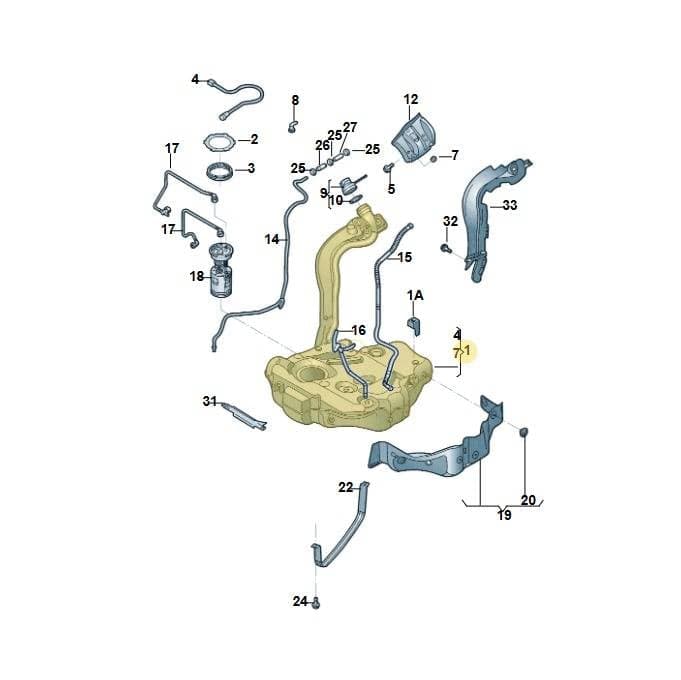

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 1K0201060HD. This fuel tank is responsible for storing and delivering fuel to the engine. It is located in the fuel system assembly. The tank is constructed from durable materials to ensure longevity and reliable fuel containment. Genuine OEM parts are manufactured to precise specifications for optimal performance and safety.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 117 × 107 × 57 cm
- Shipping weight
- 11.42 kg
Parts diagram & fitment
6 vehiclesFuel Tank — locate 1K0201060HD Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Part 1K0201055AL
- 1Container 1K0201055AM
- 1Container 1K0201060DQ
- 1Container 1K0201060GA
- 1Fuel Tank 1K0201060GL
- 1Container 1K0201060HC
- 1Container 5C0201055G
- 1Container 5C0201055H
- 1Container 5C0201055J
- 1Container 5C0201055K
- 1Container 5C0201055N
- 1Container 5C0201060B
- 1Container 5C0201060F
- 2Part 1K0201375
- 4Line 1J0201142A
- 4Line 1H0201142D
- 5Clip 1J0201250
- 5Bolt N10189407
- 7Bush 1K0201048A
- 7Bush 1J0201048C
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AM
- 9Part 3D0201550AC
- 9Part 3D0201550AF
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AC
- 9Part 5C0201550AH
- 9Part 5C0201550E
- 9Part 5Q0201550J
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550L
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550AT
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5WA201550K
- 10Seal Ring 1K0201557A
- 13Sensor 5C0201733
- 14Pipe 1K0201931AB
- 14Pipe 5C0201931Q
- 14APipe 5C0201931D
- 14APipe 5C0201931H
- 14APipe 5C0201931P
- 14BPipe 5C0201931
- 14BPipe 1K0201931G
- 15Line 1K0201993M
- 15Line 1K0201993AF
- 16Line 1K0201995F
- 19Heat Sh 5C0201307A
- 19Heat Sh 1Q0201307C
- 20Clip 441863987B
- 22Strap 1K0201656C
- 23Tube 5C0201673B
- 23Tube 5C0201673A
Diagrams & fitment data powered by oemdiagrams.com
1K0201060HD Volkswagen Fuel Tank | Genuine OEM is fitted on: jetta 2014-2017; Jetta 1.6 2014-2018; Jetta 1.4 2014-2017; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-.
