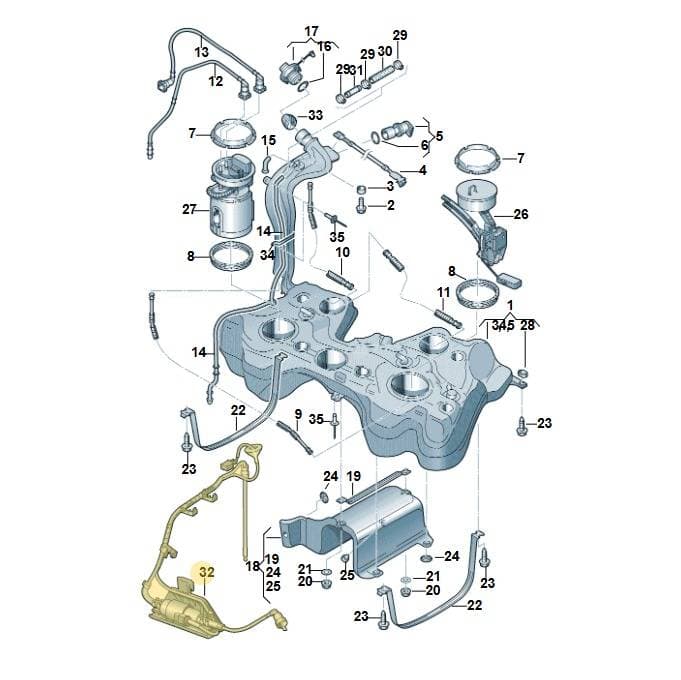

Number 32 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Extraction Unit, part number 1K0201607AF. This unit extracts fuel from the tank and meters it for delivery to the engine. It is located in the fuel tank assembly. Genuine OEM extraction units are precisely calibrated to ensure accurate fuel metering and optimal engine performance.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.5 × 27 × 11.5 cm
- Shipping weight
- 0.61 kg
Parts diagram & fitment
8 vehiclesExtraction Unit With Metering Pump — locate 1K0201607AF Volkswagen Extraction Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Fuel Tank 1K0201060GB
- 1Container 1K0201060GE
- 2Bolt N90693804
- 3Bush 1J0201048C
- 4Line 1J0201142A
- 9Line 1K0201995E
- 10Line 1K0201993S
- 11Line 1K0201993AA
- 11Line 1K0201993R
- 14Part 1K0201931D
- 15End Piece 895201890
- 16Seal Ring 1K0201557A
- 17Part 1K0201550AF
- 17Part 8P0201550B
- 17Part 1K0201550M
- 18Heat Sh 1K0201307F
- 20Ut Hexagon Nut Self-locking Hexagon Nut N90289105
- 21Washer N90057703
- 22Strap 1K0201655B
- 23Bolt N0195308
- 24Washer N90796502
- 28Bush 1K0201048A
- 29Clip N10199201
- 31Sleeve 191201316A
- 32Metering 1K0201607R
- 32Pump 2K0963303B
- 32Metering 1K0201607Q
- 33Ins Piece 1K0201112E
- 33Ins Piece 1K0201112D
Diagrams & fitment data powered by oemdiagrams.com
1K0201607AF Volkswagen Extraction Unit | Genuine OEM is fitted on: superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; superb 2013-2015; Yeti 2013-2017; golf 2.0 2008-2011; golf estate 2009-2013; Golf 2011-2013.
