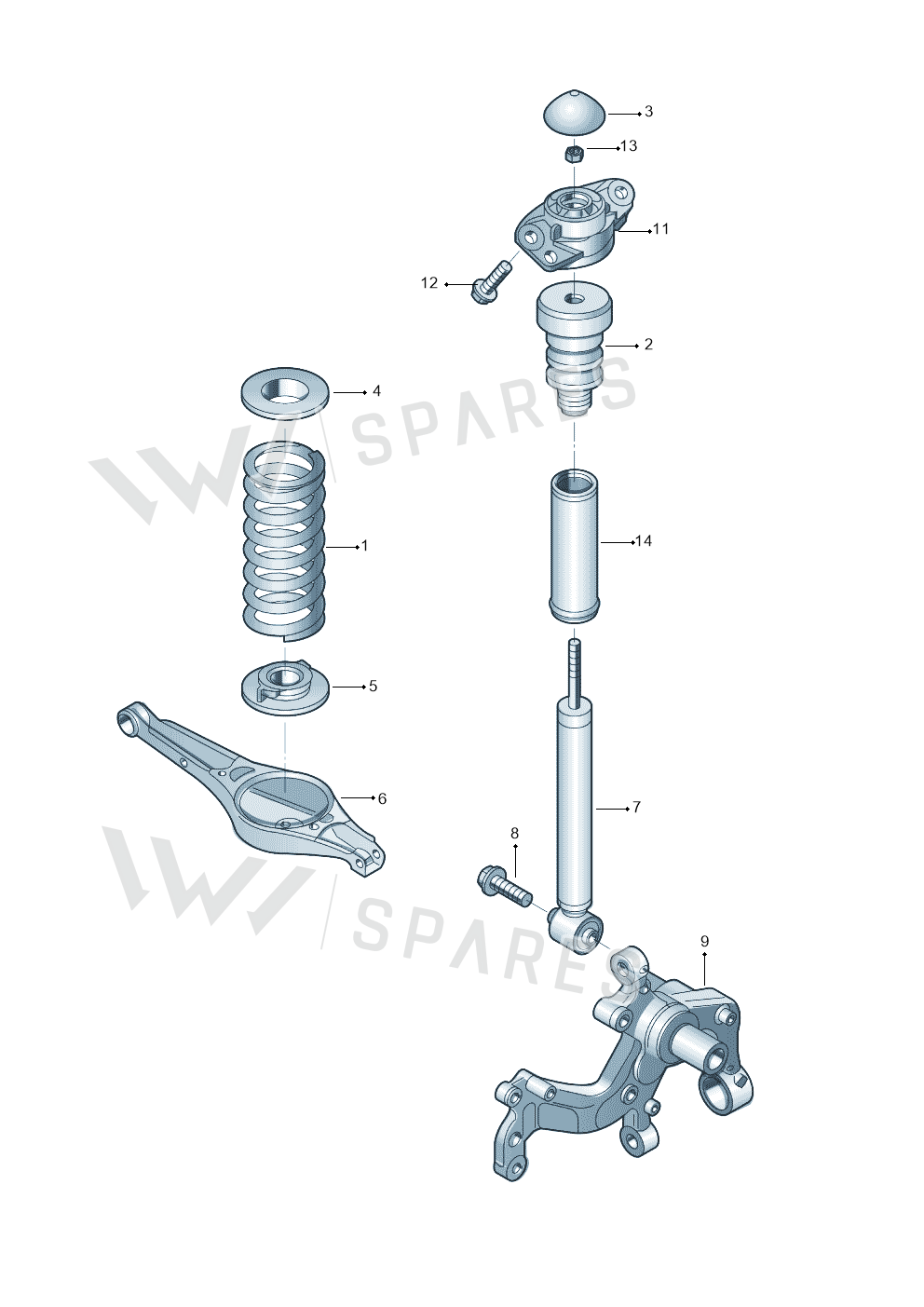

Spring Support exploded parts diagram — Superb Ambition · 2009-2015, position 5
Exploded view
Superb Ambition · 2009-2015 · position 5Full diagram ↓
1K0512297C

1K0512297C Spring Support

€6.38
incl. 21% VAT

€5.27 excl. VAT

Supersession roadoldest to newest
  1. 1K0505311ENot stocked
    May 2003
  2. 1K0512297CThis pageNot stocked
    Jun 2007
  3. 1K0512297DCurrent number
Current part number1K0512297DWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

7 vehicles

Spring Support — locate Spring Support in the official exploded view and explore the surrounding assembly.

Parts in this assembly13
Vehicle fitment table7

Europe (4)

VehicleYearsPos.QtyRemarkPR
Superb Ambition2009-201552
Audi TT Coupe/Roadster 08>2007-52PR:1BL,1BV1BL,1BV,1X0
JETTA 06>2005-52
Audi A3/S3/quattro2005-2007521X0

Other markets (3)

VehicleYearsPos.QtyRemarkPR
OCTAVIA "CN."07>2007-52
Jetta "USA"05>2005-52
TOURAN (SVW) "CN"04>2004-52

Diagrams & fitment data powered by oemdiagrams.com

Spring Support is fitted on: Superb Ambition 2009-2015; Audi TT Coupe/Roadster 08> 2007-; JETTA 06> 2005-; Audi A3/S3/quattro 2005-2007; OCTAVIA "CN."07> 2007-; Jetta "USA"05> 2005-; TOURAN (SVW) "CN"04> 2004-.
