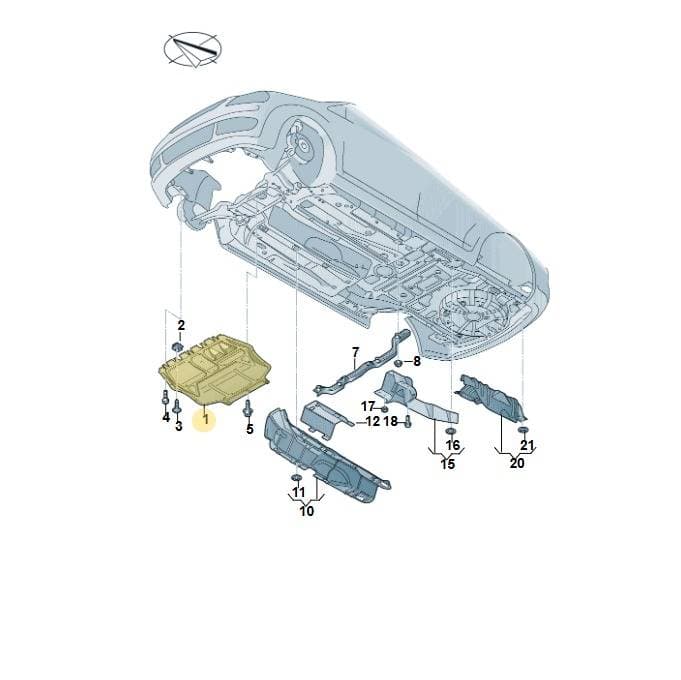

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Noise Insulation Panel, part number 1K0825237AG. This panel reduces noise and heat transfer from the underside of the vehicle into the cabin. It is located in the underbody assembly. Constructed from specialized materials, it effectively dampens sound and insulates against heat. Genuine OEM noise insulation panels are designed for optimal acoustic and thermal performance.
Technical details
- Category
- Underbody & Splash Shields
- Country of origin
- Italy
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 101 × 75 × 5 cm
- Shipping weight
- 1.88 kg
Parts diagram & fitment
40 vehiclesNoise Insulation — locate 1K0825237AG Volkswagen Noise Insulation Panel | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 1K0825951 — the later replacement part.
Parts in this assembly(31)
- 1Stone ChipRight1K0825002B
- 1Stone ChipLeft1K0825001B
- 3Part N90959101
- 4Bolt N10354602
- 5PartLeft1K0825201M
- 5TrimRight1K0825202AF
- 5TrimRight1K0825202AG
- 6Trim 1K0825206A
- 7Part N90970702
- 8Collar Nut N10579101
- 9Insulation 1K0825235AB
- 9Insulation 1K0825235AD
- 9Insulation 1K0825237P
- 9Insulation 1K0825237K
- 10Clip N90533301
- 12Bolt 1K0825951
- 13CoverRight1K0825272A
- 13CoverLeft1K0825271A
- 16Heat Sh 1K0825661N
- 16Heat Sh 1K0825671N
- 17Washer N90796502
- 18Part 1K0825701J
- 18Heat Sh 1K0825711J
- 20Bolt N90471802
- 21Heat Sh 1K0825721E
- 24Part N90833801
- 25BungsRight1K0825962B
- 25BungsLeft1K0825961B
- 28Bracket 1K0825221
- 29Bolt N10063205
- 30Collar Nut N90183802
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
1K0825237AG Volkswagen Noise Insulation Panel | Genuine OEM is fitted on: GOLF 2003-2005; CADDY 2004-; CADDY-FAW "CN" 05> 2005-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; JETTA 06> 2006-; TOURAN 2006-; Jetta Vagon 08> 2008-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; caddy panel van 2008-2010; Touran 1.9 2008-2010; jetta 2008-2011; golf estate 2009-2013; jetta variant 2009-2014; Caddy Maxi Kombi 2010-2015; Touran 2.0 2010-2015; Golf 2011-2013; Golf Plus 2011-2014; Scirocco 2.0 2014-2017; caddy kombi 2015-2020; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Sportback 2008-2013.
