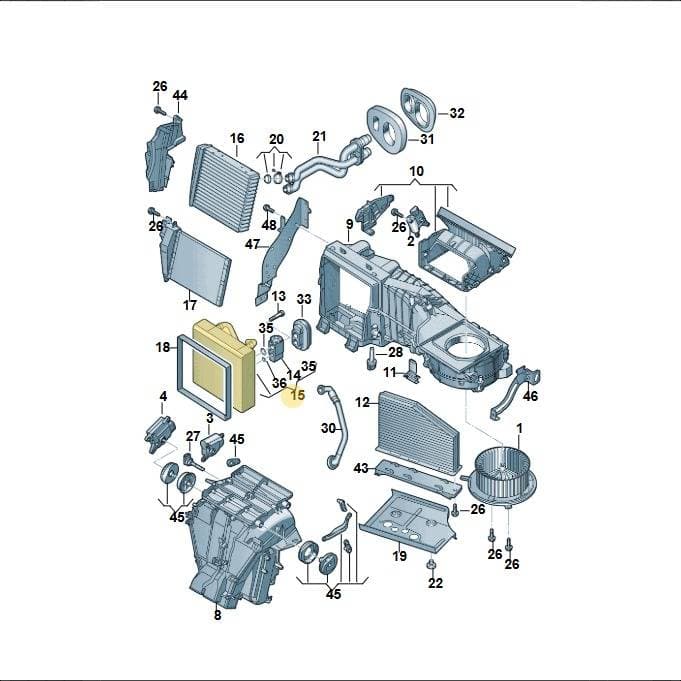

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Evaporator With Expansion Valve, part number 1K1816103. This component is a critical part of the air conditioning system, absorbing heat from the cabin air as the refrigerant expands and evaporates within its coils. It is typically located within the dashboard assembly.
Technical details
- Category
- Heating & A/C
- Country of origin
- Germany
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24.5 × 24.5 × 18 cm
- Shipping weight
- 1.74 kg
Parts diagram & fitment
5 vehiclesEvaporator With Expansion Valve — locate 1K1816103 Volkswagen Evaporator With Expansion Valve | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(40)
- 1BlowerLeft1K1819015E
- 2Motor 1K0907511C
- 3Part 1K0907511Q
- 4Servomotor 5Q0907511L
- 8Part 1K1820353C
- 9Housing 1K1820007A
- 10Int Duct 1K1819304
- 11Resistance 1K0959263A
- 12Pollen Fil 1K0819644B
- 12Dust Filt 1K1819653B
- 12Od Filter 1K1819669
- 12Part JZW819653B
- 13Screw N10476301
- 14Expans Val 1K0816679
- 14Expans Val 1K0820679
- 15Evaporator 1K1820103E
- 16Heat Exch 1K0819031E
- 17Heat Element 1K0963235G
- 18Seal 1K0820080
- 19Cover 5K1819593
- 20Gask Set 8E0898380
- 21Water Pipe 1K1819857C
- 22Screw WHT000155
- 26Screw N10424102
- 27Temperature Sensor 3D0907543A
- 28Temperature Sensor 1K0907543G
- 30PipeLeft1K1260113D
- 31Seal 1K0820061
- 32Grommet 1K0820751C
- 33Seal 1K0820139
- 35Seal Ring 8E0260749D
- 36Seal Ring 8E0260749
- 43Cover 1K0819422B
- 44Cover 1K1819349F
- 44Cover 1K1819349E
- 45Lever 1K0898002A
- 45Lever 1K1898001
- 46Bracket 1K1819453
- 47Bracket 1K1819473H
- 48Bolt N90532901
Diagrams & fitment data powered by oemdiagrams.com
1K1816103 Volkswagen Evaporator With Expansion Valve | Genuine OEM is fitted on: Passat CC 2011-2016; Scirocco 2.0 2014-2017; jetta 2014-2017; Sharan BlueMotion 2015-2022; Yeti 2013-2017.
