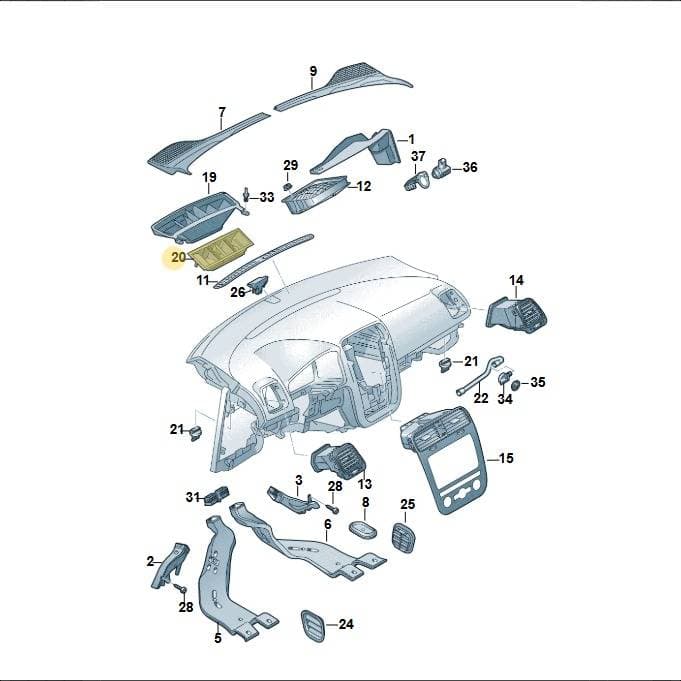

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen HVAC Intermediate Piece, part number 1K1819241. This component connects and supports various parts within the heating, ventilation, and air conditioning (HVAC) system. It is located in the dashboard assembly. The part weighs 0.125 kg. Genuine OEM parts ensure precise fitment and reliable performance in the complex HVAC system.
Technical details
- Category
- Body Interior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 16 × 16 cm
- Shipping weight
- 0.13 kg
Parts diagram & fitment
13 vehiclesIntermediate Piece — locate 1K1819241 Volkswagen HVAC Intermediate Piece | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(35)
- 1CoverRight1K2815159A
- 1CoverLeft1K1815159A
- 2VentRight1K2819152B
- 2VentLeft1K1819151B
- 3VentRight1K2819151A
- 3VentLeft1K1819152B
- 5Air Channel 1K0819805D
- 6Air Channel 1K0819806D
- 8Cover 1K0819425
- 9DeflectorRight1K2819415B
- 9DeflectorLeft1K1819415B
- 10Air Guide 5M0819633
- 11Air Vent 1K1857473
- 12Cover 1K0941369A
- 12Manifold 1K0815479B
- 13Air Vent 1K0819703B
- 14Air Vent 1K0819704D
- 15Air Vent 1K0819728J
- 18Cover 1K0819153C
- 19IntermedRight1K2819063B
- 19IntermedLeft1K1819063B
- 20IntermedRight1K2819241
- 22HoseLeft1K1816311
- 22HoseRight1K2816311
- 24Trim 1K0819465B
- 25Trim 1K0819466B
- 28Bolt N90698606
- 29Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 30Vent 1K0819203A
- 31Part 1K0819663
- 33Spring Rivet 4D0868307
- 34Union 1K0820731
- 35Valve 3B0816355
- 36Bungs 1T0857489
- 37Temperature Sensor 1K0907543E
Diagrams & fitment data powered by oemdiagrams.com
1K1819241 Volkswagen HVAC Intermediate Piece | Genuine OEM is fitted on: GOLF 2003-2005; Jetta "USA"05> 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; EOS-Cabriolet-Coupe 2006-; GOLF VARIANT 07> 2007-; Jetta Vagon 08> 2008-; Golf/Rabbit 08> 2007-; Scirocco 2.0 2008-2014; EOS 2.0 2008-2010; jetta 2008-2011; Eos BlueMotion 2010-2015; Scirocco 2.0 2014-2017.
