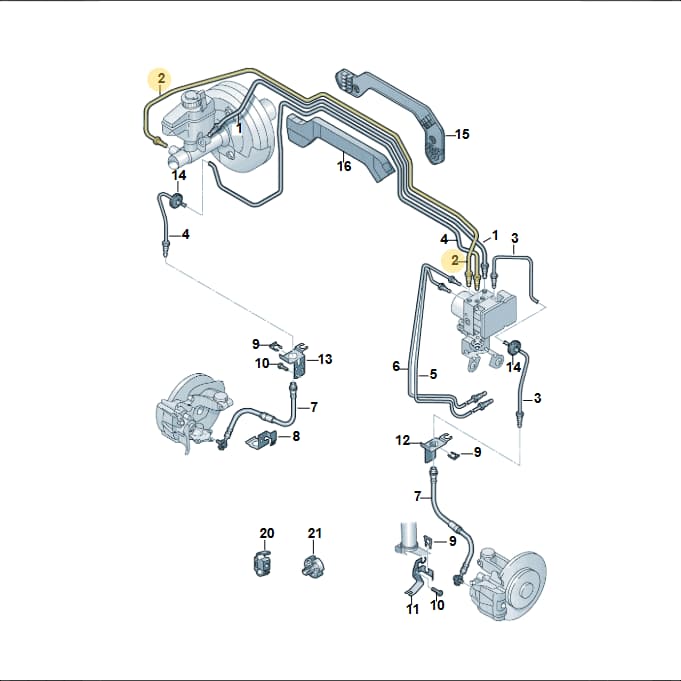

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Skoda Brake Line, part number 1K2614740J. This line transfers hydraulic pressure to the front right brake caliper, enabling braking. It is a critical component of the hydraulic braking system. Manufactured to precise specifications for safe braking.
Technical details
- Category
- Brakes
- Country of origin
- Germany
- Customs (HS) code
- 87083091
- Manufacturer
- Skoda
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 82.5 × 23 × 7.5 cm
- Shipping weight
- 0.14 kg
Parts diagram & fitment
21 vehiclesBrake Pipe — locate 1K2614740J Skoda Brake Line | Front Right in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(35)
- 1Brake PipeLeft1K1614739H
- 1Brake PipeRight1K2614739J
- 3Brake PipeLeft1K1614740J
- 3Brake PipeRight1K2614740E
- 3Brake PipeRight1K2614740H
- 5Brake PipeLeft1K1614723H
- 5Brake PipeRight1K2614723F
- 7Brake PipeLeft1K1614724J
- 7Brake PipeRight1K2614724F
- 7Brake PipeRight1K2614724M
- 10Grommet 1K0611751
- 11RetainerRight1K0611842D
- 11RetainerLeft1K0611841E
- 12Bolt N01021533
- 13Washer N01152426
- 14Bracket 191611715
- 15Brake Hose 1K0611701K
- 16Brake Pipe 1K2614741H
- 18Brake LineLeft1K1614725C
- 18Brake LineRight1K2614725C
- 19Brake Pipe 1K2614742G
- 21Brake Line 1K2614726C
- 23Junction 1K0611755
- 24Bracket 1H0611797
- 25Clip 8K0611797D
- 26Bracket 1H0611797C
- 27Retainer 1K0611797A
- 28RetainerRight1K0611846B
- 28RetainerLeft1K0611845B
- 29Bolt N90245210
- 30CoverRight3C2611716
- 30CoverLeft1K1611716B
- 31Cover 1K1611732D
- 36Cover 1K1611732B
- 37Spring 1K0611715
Diagrams & fitment data powered by oemdiagrams.com
1K2614740J Skoda Brake Line | Front Right is fitted on: GOLF VARIANT 07> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; EOS 2.0 2008-2010; golf estate 2009-2013; Eos BlueMotion 2010-2015; Golf Cabriolet 2011-2016; Golf 2011-2013; Golf Plus 2011-2014; Scirocco 2.0 2014-2017; TOLEDO 05> 2004-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; superb 2013-2015; Yeti 2013-2017.
