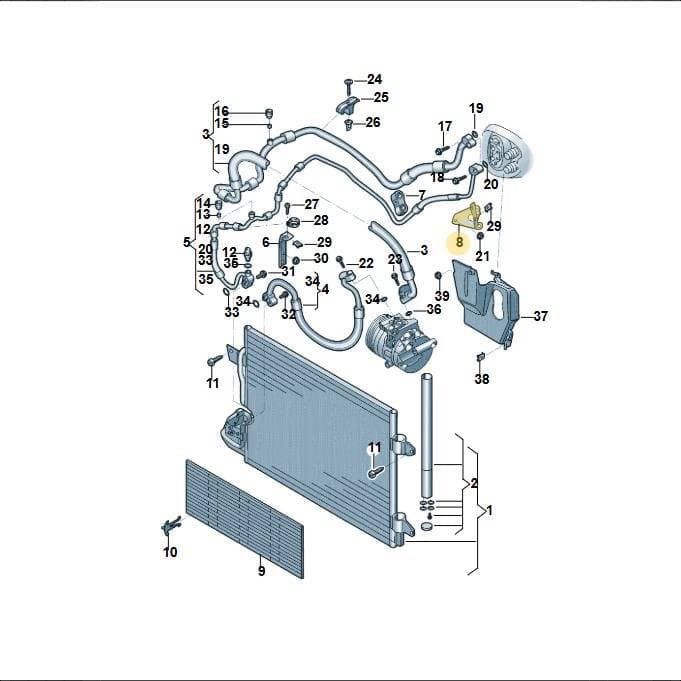

Number 8 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bracket, part number 1K2820769. This bracket is used for mounting various components within the air conditioning system, ensuring their secure placement and proper alignment. It is indicated as part 8 in the diagram. The part weighs 0.071 kg and has dimensions of 0.095m x 0.09m x 0.06m. Genuine OEM brackets are manufactured to precise specifications, guaranteeing a perfect fit and reliable support for critical AC system parts.
Technical details
- Category
- Heating & A/C
- Country of origin
- Spain
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 9.5 × 9 × 6 cm
- Shipping weight
- 0.07 kg
Parts diagram & fitment
58 vehiclesBracket — locate 1K2820769 Volkswagen Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(40)
- 1Condenser 1T0820411E
- 2Part 1T0298403
- 4Hose 1T0820743AK
- 4Hose 1T0820743AL
- 4Hose 1T0820743AM
- 5Hose 1K0820721AK
- 5Hose 1K0820721BE
- 5Hose 1K0820721BD
- 6Hose 1T0820741R
- 6Hose 1T0820741AL
- 7Bracket 1K0820769F
- 8Bracket 1K0820769D
- 9Clip 1J0820774A
- 12Seal 321820061D
- 13Seal 321819017
- 15Part 1K0820746
- 16Clip 3D0867646
- 17Bolt N90817003
- 18Sensor 1K0959126B
- 20Valve 8E0820855
- 21Part 8A0820871AB
- 24Part 357820809B
- 25Screw N10414401
- 27Seal Ring 4E0260749B
- 28Seal Ring 3D0260749C
- 31Ut Hexagon Nut Self-locking Hexagon Nut N90289102
- 32Screw N0139771
- 33Clamp N0206262
- 36Screw N0439391
- 37Clip 1J0820774
- 38Part 811807577C
- 40Clamp N10236601
- 41Part N90755701
- 42Collar Nut N90175203
- 46Seal Ring 4E0260749A
- 47Seal Ring 8E0260749
- 48Part N90610601
- 49Seal Ring 8E0260749C
- 50Bracket 1K0820758
- 51Screw N10553901
Diagrams & fitment data powered by oemdiagrams.com
1K2820769 Volkswagen Bracket | Genuine OEM is fitted on: TOURAN 2003-2005; GOLF 2003-2005; CADDY 2004-; Jetta "USA"05> 2005-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; Golf/Rabbit 2005-2007; TOURAN 2005-2006; EOS-Cabriolet-Coupe 2006-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; TOURAN 2006-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; TIGUAN 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; Scirocco 2.0 2008-2014; caddy panel van 2008-2010; EOS 2.0 2008-2010; Touran 1.9 2008-2010; jetta 2008-2011; golf estate 2009-2013; Caddy Maxi Kombi 2010-2015; jetta 2010-2014; Touran 2.0 2010-2015; Eos BlueMotion 2010-2015; new beetle 2011-2016; new beetle cabriolet 2011-2016; Golf Cabriolet 2011-2016; Tiguan 4Motion 2011-2018; Golf 2011-2013; Golf Plus 2011-2014; Jetta 1.4 2013-2015; Scirocco 2.0 2014-2017; jetta 2014-2017; Beetle 2016-2019; new beetle cabriolet 2016-2019; Jetta 1.4 2014-2017; caddy kombi 2015-2020; OCTAVIA/COMBI/4X4 04> 2004-; superb comfort 2008-2013; octavia ambiente 2008-2013; Yeti 2009-2013; superb 2013-2015; Yeti 2013-2017; ALTEA 2004-2006; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Altea XL Reference 2013-2013; Audi A3/S3/quattro 2005-2007; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Cab. 2.0 TDI 2007-2013; Audi A3 Sportback 2008-2013; Audi RS3 Sportback 2011-2012.
