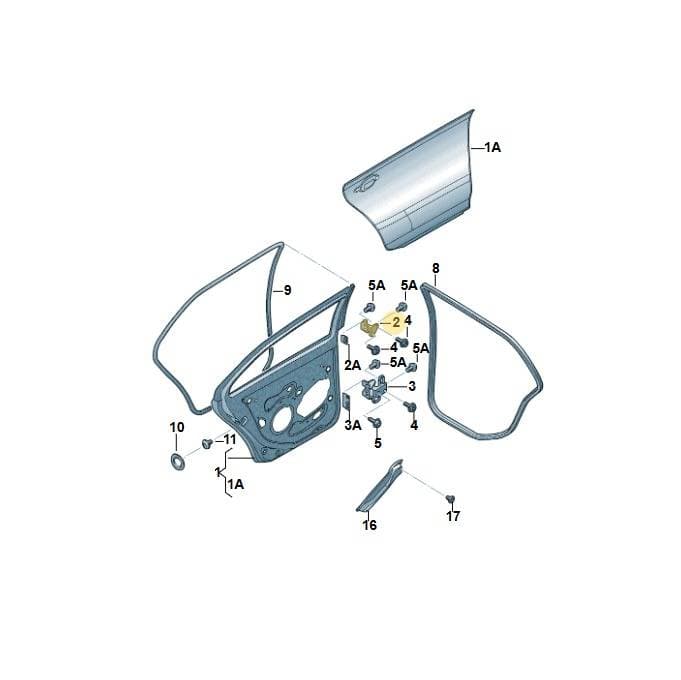

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Door Hinge, part number 1K9833402E. This hinge is located on the rear door assembly. Proper hinge alignment is crucial for smooth door operation and sealing.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 83021000
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8 × 7.6 × 5.3 cm
- Shipping weight
- 0.38 kg
Parts diagram & fitment
8 vehiclesDoor Hinge — locate 1K9833402E Volkswagen Rear Door Hinge | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Superseded by 1K4833412K — the later replacement part.
Parts in this assembly(24)
- 2Retainer 1K5833300J
- 2Retainer 1K5833299J
- 5Plate 1K0831288B
- 8HingeLeft1K9833401E
- 9Part WHT000340
- 10Bolt N90930503
- 11Screw N91070301
- 12HingeRight1K4833412Q
- 12HingeLeft1K4833411Q
- 14Screw N90823203
- 15Screw N91036701
- 16ReinforcementRight1K5833508B
- 16ReinforcementLeft1K5833507B
- 17Screw N90800503
- 18Part N90348411
- 20Bolt WHT000329
- 23Clip 1K6837200B
- 24Door SealRight1K5839702A
- 24Door SealLeft1K5839701A
- 26Door Seal 1K5867913A
- 28Bungs 8Z0837111
- 29Sound Abs 323863950
- 32Bolt WHT000410
- 33Adhesive DH00910003
Compatible / alternative parts(4)
Diagrams & fitment data powered by oemdiagrams.com
1K9833402E Volkswagen Rear Door Hinge | Genuine OEM is fitted on: BORA-FAW "CN" 06> 2005-; JETTA 06> 2006-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; golf estate 2009-2013; Golf 2009-2014; Golf 2011-2013; Golf Plus 2011-2014.
