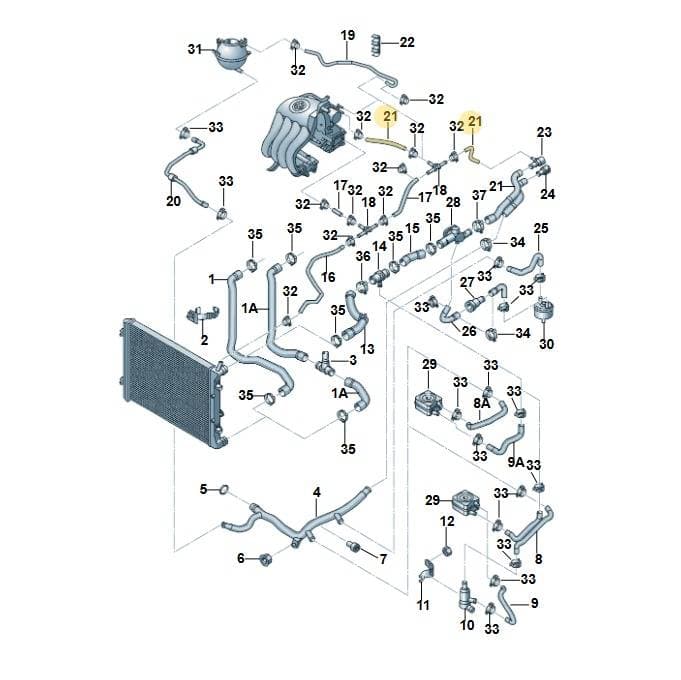

Number 21 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Coolant Hose, part number 1KM121156B. This flexible tube carries coolant between engine components and the radiator, playing a vital role in maintaining optimal engine temperature. It is positioned within the engine cooling system. Genuine OEM hoses are constructed with specific materials and dimensions to withstand high temperatures and pressures, ensuring reliable coolant flow and preventing leaks.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 37 × 18 × 17 cm
- Shipping weight
- 0.37 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesCoolant Hose — locate 1KM121156B Volkswagen Coolant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly37
- 1Hose 5C0122051
- 1AHose 5C0122051B
- 2Bracket 1K0121093B
- 3Junction 5C0122087
- 4Water Pipe 06A121065DG
- 4Water Pipe 06A121065DP
- 5Seal Ring WHT006407
- 6Collar Nut N90175205
- 7Screw N0447276
- 8Hose 5C0122062
- 8AHose 5C0121058B
- 9Hose 5C0121062
- 9AHose 1K0121096AE
- 10Pre-heater 06G965529
- 11Bracket 06A121093C
- 12Part N10650301
- 13Hose 5C0122101L
- 14Tpiece 1K0121087AE
- 15Hose 5C0122101K
- 16Hose 5C0122447D
- 17Hose 5C0122447C
- 18Tpiece N90693001
- 19Hose 5C0121447
- 20Hose 5C0122109
- 22Bracket 3B0133687A
- 23Coupl Piece 1K0122291C
- 24Coupl Piece 3B0122291B
- 25Hose 1K0121058T
- 26Hose 5C0122096
- 27Coolant Rg 1K0121113A
- 28Part 06A121132AG
- 32Clamp N90686701
- 33Clamp N90686902
- 34Clamp N90687001
- 35Clamp N90687201
- 36Clamp N91159901
- 37Clamp N90687101
Vehicle fitment table7
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| jetta | 2014-2017 | 21 | 1 | ||
| jetta | 2010-2014 | 21 | 1 | ||
| GOLF | 2003-2005 | 27 | 1 | TB2 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 27 | 1 | TB2 | |
| OCTAVIA "CN."07> | 2007- | 30 | 1 | BXX | TE2 |
| BORA-FAW "CN" 06> | 2005- | 30 | 1 | ||
| Golf/Rabbit | 2005-2007 | 27 | 1 | TB2 |
Diagrams & fitment data powered by oemdiagrams.com
1KM121156B Volkswagen Coolant Hose | Genuine OEM is fitted on: jetta 2014-2017; jetta 2010-2014; GOLF 2003-2005; Golf/Rabbit 08> 2007-; OCTAVIA "CN."07> 2007-; BORA-FAW "CN" 06> 2005-; Golf/Rabbit 2005-2007.
