Product overview

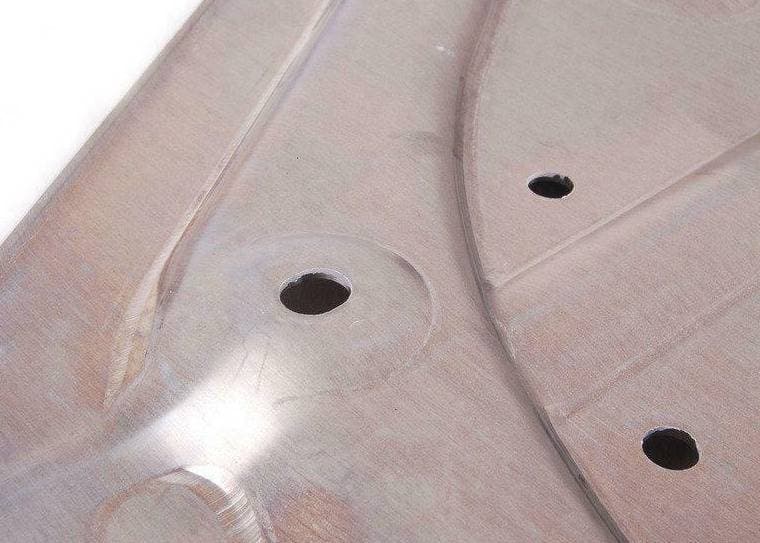

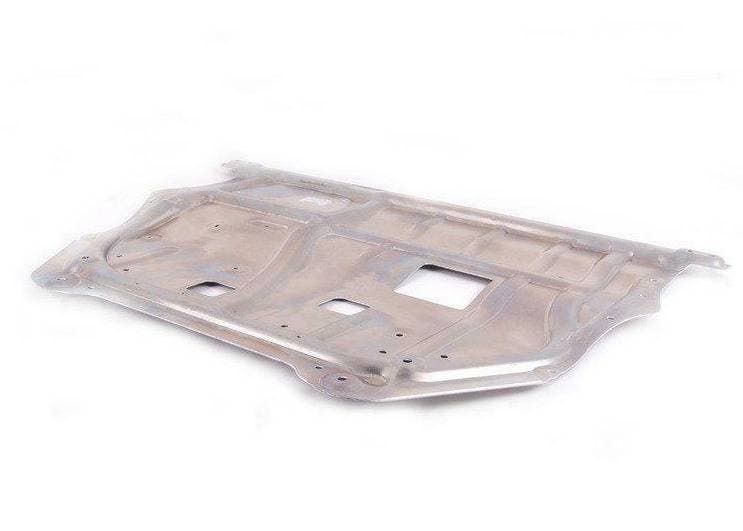

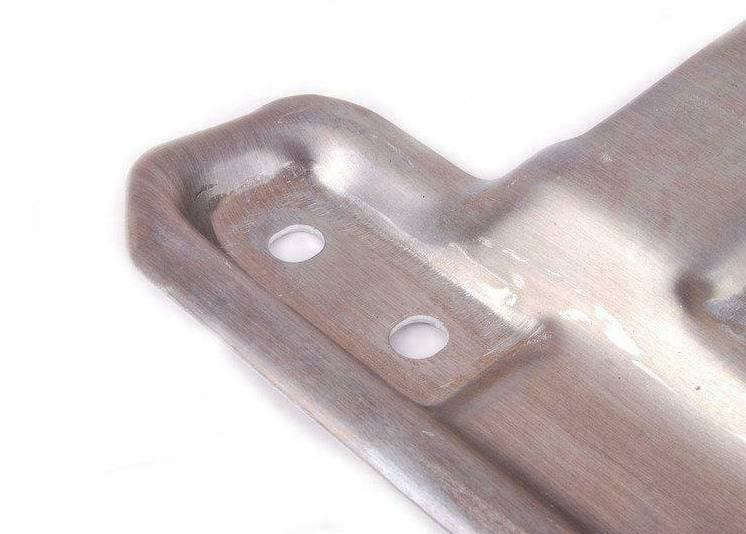

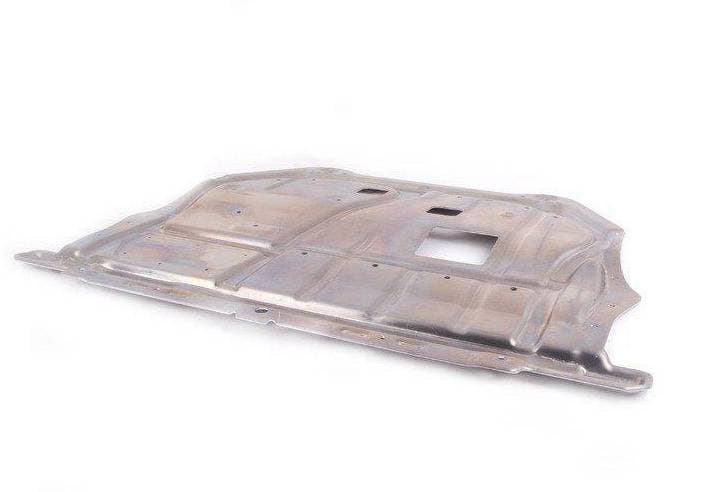

Genuine OEM Volkswagen Belly Pan Noise Insulation, part number 1Q0825237B. This underbody panel is designed to reduce noise generated by road conditions, engine, and drivetrain components, contributing to a quieter cabin environment. It is installed on the underside of the vehicle, often beneath the engine or transmission area, also providing protection against road debris. Weighing approximately 4.616 kg and measuring 1.11 m in length and 0.78 m in width, it is typically made from a molded composite material with sound-absorbing properties. Choosing genuine OEM underbody insulation ensures precise fitment, optimal acoustic performance, and durable protection against environmental elements.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 111 × 78 × 4 cm
- Shipping weight
- 4.62 kg
Parts diagram & fitment
3 vehiclesNoise Insulation — locate 1Q0825237B Volkswagen Belly Pan Noise Insulation | Underbody Protec... in the official exploded view and explore the surrounding assembly.
Parts in this assembly(23)
- 2Bungs N90710301
- 3Bolt N10354602
- 4Bolt N91055601
- 5BracketRight1Q0825344
- 5BracketLeft1Q0825343
- 8Radius Rod 1Q0806493B
- 10Screw N90870902
- 11Screw N91056902
- 14TrimRight1Q0825202B
- 14TrimRight1Q0825202C
- 14TrimLeft1Q0825201A
- 15Collar Nut WHT000713
- 18Washer N90796502
- 20Part N90833801
- 22Heat Sh 1K0825671N
- 25Heat Sh 1K0825711H
- 27Bolt N0195306
- 29Insulation 5K0825635
- 30CoverLeft1K0825271A
- 30CoverRight1K0825272A
- 31BungsLeft1K0825961B
- 31BungsRight1K0825962B
- 32Part N90970702
Diagrams & fitment data powered by oemdiagrams.com
1Q0825237B Volkswagen Belly Pan Noise Insulation | Underbody Protec... is fitted on: EOS-Cabriolet-Coupe 2006-; EOS 2.0 2008-2010; Eos BlueMotion 2010-2015.
