Target · Diagram
Find this reference above

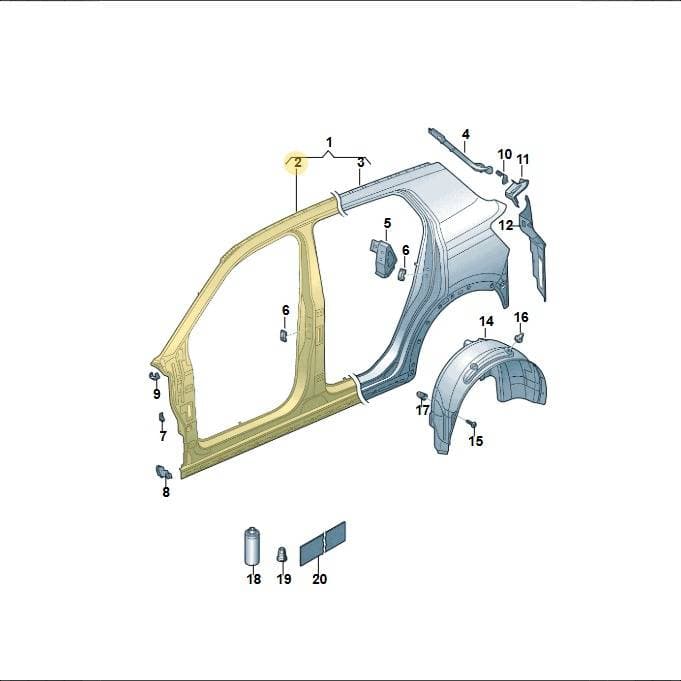

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Pillar A Section, part number 2GM809835B. This part forms a critical structural component of the vehicle's front pillar, contributing to chassis rigidity and occupant safety. It is located at the front of the vehicle's main body structure. The section measures approximately 1.53m in length, 1.33m in width, and 0.16m in height, with a weight of 5.93 kg. Genuine OEM pillar sections are manufactured to exact specifications for structural integrity and safety compliance.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 153 × 133 × 16 cm
- Shipping weight
- 5.93 kg
Parts diagram & fitment
1 vehicleSection — locate 2GM809835B Volkswagen Pillar A Section | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Superseded by 2GM831051N — the later replacement part.
Parts in this assembly(41)
- 1Side PartRight2GM809606F
- 1Side PartRight2GM809606G
- 1Side PartRight2GM809606H
- 1Side PartRight2GM809606J
- 1Side PartLeft2GM809605F
- 1Side PartLeft2GM809605G
- 1Side PartLeft2GM809605H
- 1Side PartLeft2GM809605J
- 2SectionRight2GM809836
- 2SectionRight2GM809836A
- 2SectionRight2GM809836B
- 2SectionLeft2GM809835
- 2SectionLeft2GM809835A
- 3SectionRight2GM809844
- 3SectionRight2GM809844A
- 3SectionRight2GM809844B
- 3SectionLeft2GM809843
- 3SectionLeft2GM809843A
- 3SectionLeft2GM809843B
- 4Seal ChannelRight2GM809642C
- 4Seal ChannelRight2GM809642D
- 4Seal ChannelLeft2GM809641C
- 4Seal ChannelLeft2GM809641D
- 5ReinforceRight2GM809614
- 5ReinforceLeft2GM809613
- 6Plate 6R0810681
- 7Bracket 1K5809693
- 8PlateRight2GM810222A
- 8PlateLeft2GM810221A
- 9R Bracket 2GM810380A
- 9R BracketRight2GM810396A
- 9R Bracket 2GM810379A
- 9R BracketLeft2GM810395A
- 14LinerRight2GM810972C
- 14LinerRight2GM810972E
- 14LinerRight2GM810972H
- 14LinerLeft2GM810971C
- 14LinerLeft2GM810971E
- 15Bolt N90974701
- 16Part N10621301
- 17Part WHT004694
Compatible / alternative parts(12)
- Part 2GM854939G
- Part 2GM853855B
- Part 2GM854939L
- Part 2GM853855D
- Part 2GM854731
- Part 2GM821105B
- Part 2GM821111A
- Part 2GM854731E
- Part 2GM805911
- Part 2GM821111B
- Part 2GM854949F
- Part 2GM854949M
Diagrams & fitment data powered by oemdiagrams.com
2GM809835B Volkswagen Pillar A Section | Genuine OEM is fitted on: T-Cross 1,0 2018-2024.
