Target · Diagram
Find this reference above

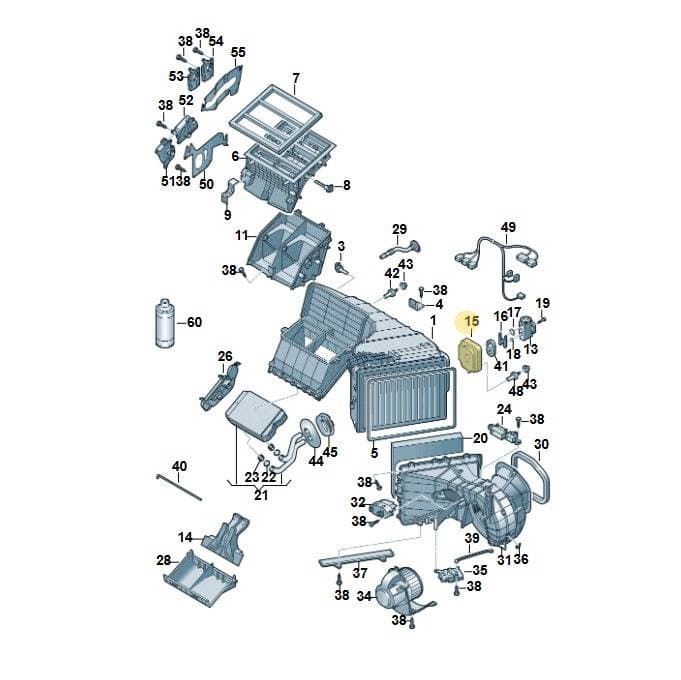

Number 15 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Evaporator Seal, part number 2H2820513. This seal is designed to seal the evaporator housing, preventing refrigerant leaks and maintaining the efficiency of the air conditioning system. It is located at position 15 in the diagram.
Catalogue entry: SEAL rhd; EXPANS VAL.
Fitted with: 7L0820679D EXPANS VAL, 2H1820513 SEAL, 7L0820678 BRACKET, 8E0260749 SEAL. RING, N10476301 SCREW, 7H0819737 SEAL.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 14 × 10.3 × 4.5 cm
- Shipping weight
- 0.08 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesSeal — locate 2H2820513 Volkswagen Evaporator Seal | HVAC in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1HousingRight2H2820087
- 1Housing 2HH820087
- 3Temperature Sensor 1J0907543A
- 4Bracket 7L0819147
- 5Sealg Cord 7H0819211
- 6PartRight7E2820351
- 6PartLeft7E1820351
- 7Seal 7H0819064B
- 8Temperature Sensor 4B0820539
- 9BracketRight7H2819259
- 9BracketLeft7H1819259
- 11Part 7E0819352
- 13Expans Val 7L0820679D
- 14Air Guide 7H0898409
- 15SealLeft2H1820513
- 16Bracket 7L0820678
- 17Seal Ring 8E0260749
- 18Seal Ring 8E0260749A
- 19Screw N10476301
- 20Filter 7H0819631
- 20Dust Filt 7H0819631A
- 20Od Filter 7E0819631
- 21Heat Exch 7L0819031A
- 21Heat Exch 7L0819031
- 22Seal Ring N90973201
- 23Clamp Spring 7H0819139
- 24Bracket 7L0820536
- 26Cover 7L0815159A
- 26Cover 7L0815159
- 28Cover 7H1819422A
- 29Drain Tube 2H0820119
- 30SealRight2H2819143
- 30SealLeft2H1819143
- 31Housing 7L0815153A
- 31Housing 7L0815153
- 32Regulator 3C0907521G
- 34BlowerRight2H2820021B
- 34BlowerLeft2H1820021B
- 35Motor 7L0907511AP
- 35Motor 7L0907511AN
- 36Clip 7H0819059
- 37Cover 7H1819913
- 38Screw N10424102
- 39Coupl Rod 7L0819313
- 40Part 7P1820117
- 41Seal 7H0819737
- 42Rubber Bush 7L0819133
- 43Part N90217304
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. |
|---|---|---|
| Amarok twin cab | 2022- | 15 |
| Amarok twin cab | 2016-2022 | 15 |
| Amarok twin cab | 2012-2016 | 15 |
| Amarok twin cab | 2009-2012 | 15 |
Diagrams & fitment data powered by oemdiagrams.com
2H2820513 Volkswagen Evaporator Seal | HVAC is fitted on: Amarok twin cab 2022-; Amarok twin cab 2016-2022; Amarok twin cab 2012-2016; Amarok twin cab 2009-2012.
