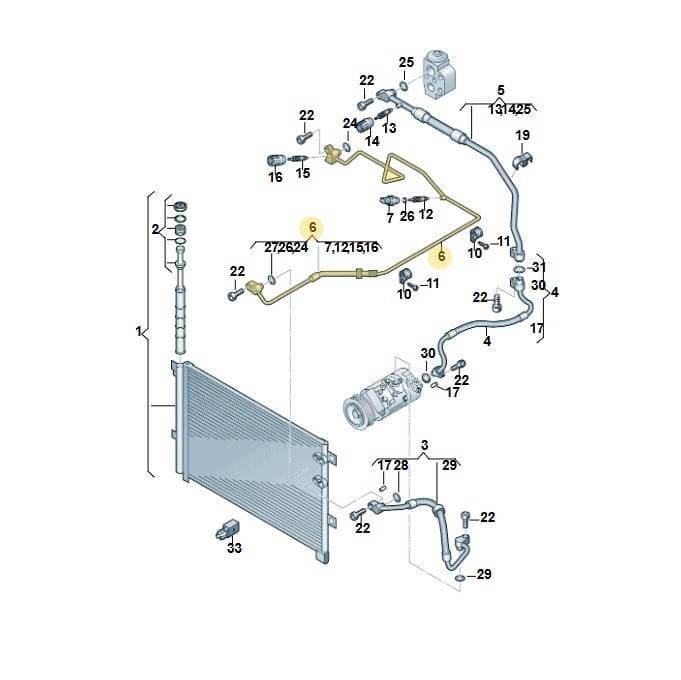

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Line, part number 2H3820741B. This line carries refrigerant within the vehicle's air conditioning system. It is located in the A/C system assembly. The precise dimensions and material ensure efficient cooling and system integrity.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 112.5 × 97 × 18.5 cm
- Shipping weight
- 0.42 kg
Parts diagram & fitment
2 vehiclesRefrigerant Line — locate 2H3820741B Volkswagen Refrigerant Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(25)
- 1Condenser 2H0820411D
- 2Insert 7E0298403
- 3Line 2H6820721A
- 3Hose 2H0820721K
- 4Pipe 2H0820744G
- 5Line 2H3820743C
- 5Line 2H4820743B
- 5Hose 2H1820743C
- 6PipeRight2H2820741E
- 6PipeLeft2H1820741G
- 7Sensor 5K0959126
- 10Clamp N0206517
- 11Ut Hexagon Nut Self-locking Hexagon Nut N02300215
- 12Valve 7D0820855
- 13Valve 8E0820855
- 14Part 3C0820231
- 16Part 3C0820581
- 17Part N10420602
- 19Bracket 4H0260759H
- 22Screw N10414402
- 24Seal Ring 3D0260749C
- 25Seal Ring 4E0260749B
- 26Seal Ring 8E0260749
- 28Seal Ring 4E0260749A
- 30Seal Ring 8E0260749C
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
2H3820741B Volkswagen Refrigerant Line | Genuine OEM is fitted on: Amarok twin cab 2022-; Amarok twin cab 2016-2022.
