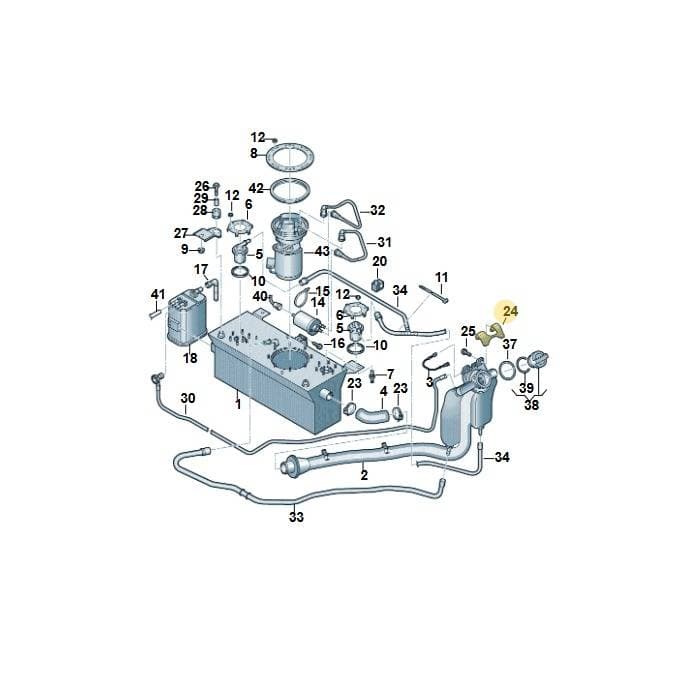

Number 24 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Bracket, part number 2K3201503. This bracket serves as a mounting point for other components within the assembly. It is located at position 24 on the diagram. This part has a length of 0.085 meters and a width of 0.045 meters. Genuine OEM brackets are manufactured with precise tolerances to ensure a secure and reliable fit, preventing vibration and premature wear.
Technical details
- Category
- Engine
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8.5 × 4.5 × 3 cm
- Shipping weight
- 0.06 kg
Parts diagram & fitment
4 vehiclesBracket — locate 2K3201503 Volkswagen Bracket | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(40)
- 1Container 2K0201075G
- 2Fuelfiller 2K0201129
- 3Line 1H0201142D
- 4Part 2K0201404
- 5Valve 1K0201751A
- 6Clamp Ring 2K0201833B
- 8Clamp Ring 2K0201833
- 10Seal Ring 2K5201119
- 12Ut Hexagon Nut Self-locking Hexagon Nut N01118312
- 14Filter 6Q0201051J
- 15Cable Tie N10662201
- 16Screw N90496802
- 18Container 1T0201801
- 20Clip 3D0201449M
- 23Clamp N10518701
- 25Bolt N90999503
- 26Bolt N10106905
- 27Bracket 2K0201505D
- 28Mounting 2K0201245
- 29Bush 2K0201048A
- 30Pipe 2K0201931A
- 31Fuel Line 2K0201293A
- 32Fuel Line 2K0201294A
- 33Line 2K0201993B
- 34Line 2K0201995B
- 35AFuelfiller 2K0201333A
- 35CPart 2K0201106C
- 36Part 2K0201579
- 37Part WHT002062
- 38Washer WHT002065
- 39Ap&cap With Retaining Strap For Fuel Tank Cap 2K0201550A
- 40Seal Ring 1K0201557A
- 41Line 2K0201160A
- 42Pipe 2K0201080C
- 43Clip 1H0201449
- 44Seal Ring WHT003418
- 45Fuel Line 2K5201293D
- 46Seal 2K0201253A
- 48Ring N10716201
- 49Heat Insul 1K0201961C
Diagrams & fitment data powered by oemdiagrams.com
2K3201503 Volkswagen Bracket | Genuine OEM is fitted on: CADDY 2004-; caddy panel van 2008-2010; Caddy Maxi Kombi 2010-2015; caddy kombi 2015-2020.
