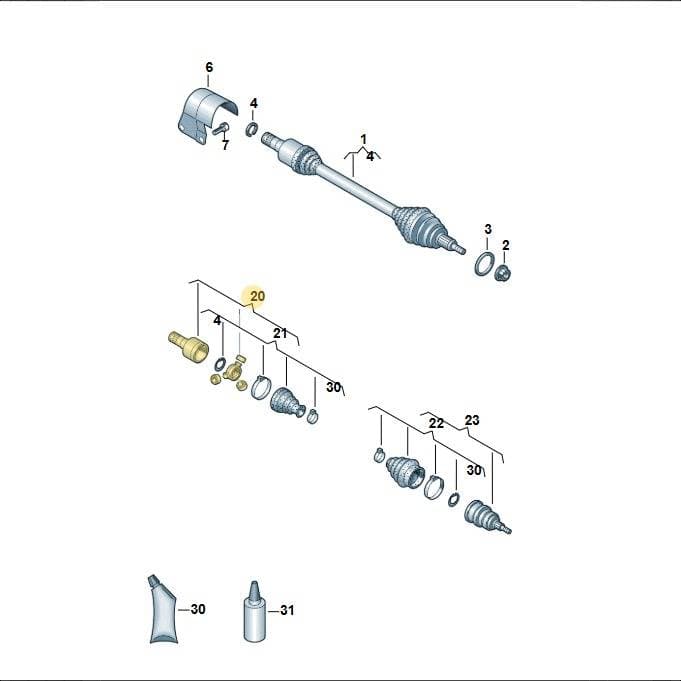

Number 20 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen CV Joint Assembly, part number 2Q0498103H. This assembly transmits rotational power from the transmission to the wheels while allowing for suspension movement and steering. It is located at the inner end of the drive axle assembly, indicated by position 20 on the diagram. Genuine OEM CV joint assemblies are manufactured to precise tolerances to ensure smooth operation and durability, preventing premature wear and vibration.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 16 × 15 × 15.5 cm
- Shipping weight
- 1.94 kg
Parts diagram & fitment
6 vehiclesConst Vel Joint With Joint Prot Sleeve — locate 2Q0498103H Volkswagen CV Joint Assembly | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(36)
- 1PartRight2Q0407272BK
- 1DriveshaftRight2Q0407272CL
- 1DriveshaftRight2Q0407272N
- 1DriveshaftRight2Q0407452AX
- 1DriveshaftRight2Q0407452JX
- 1DriveshaftLeft2Q0407271BM
- 1DriveshaftLeft2Q0407451HX
- 2Part 6Q0407396B
- 3Washer 6Q0407623E
- 4Ring 12E407298
- 6Heat Sh 6C0407721
- 7Bolt N10653102
- 20PartLeft2Q0498103GX
- 20PartLeft2Q0498103J
- 20PartRight2Q0498104D
- 20Part 6F0498103A
- 20PartLeft2Q0498103G
- 21PartLeft2Q0498201J
- 21PartRight2Q0498202B
- 21Part 6F0498201A
- 21PartLeft2Q0498201C
- 22Part 2Q0498203F
- 22Part 2Q0498203L
- 22Part 2Q0498203M
- 22Part 2Q0498203C
- 22Part 2Q0498203E
- 23Part 2Q0498099G
- 23Part 2Q0498099GX
- 23Part 2Q0498099H
- 23Part 2Q0498099HX
- 23Part 2Q0498099J
- 23Part 6F0498099
- 30Grease G052186A3
- 30Grease G052738A2
- 30Grease G070528A2
- 31Lubr Oil G052135A1
Diagrams & fitment data powered by oemdiagrams.com
2Q0498103H Volkswagen CV Joint Assembly | Genuine OEM is fitted on: Arona FR 2017-; Ibiza FR 2017-; Audi A1 sportback 1.0 2018-; fabia 2021-; Kamiq 2019-; Polo 1.0 BlueMotion 2017-2024.
