Product overview

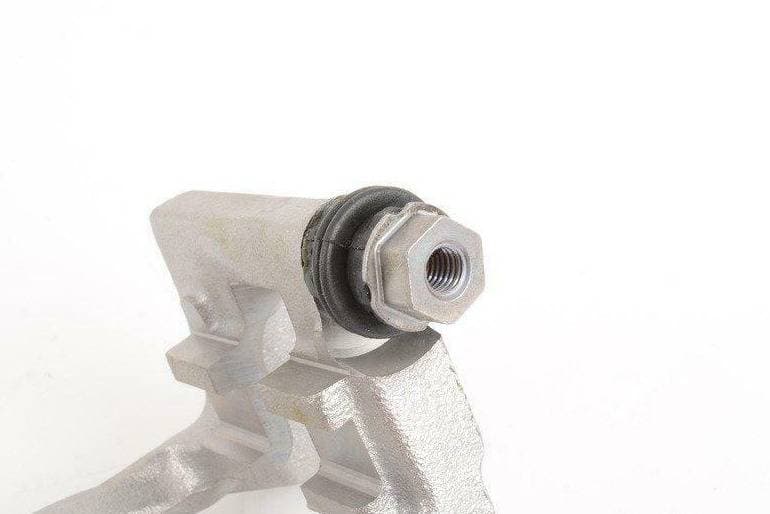

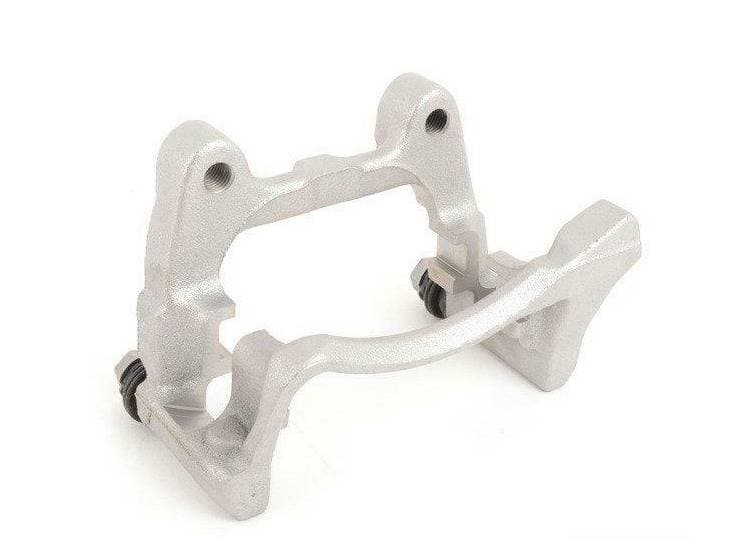

Genuine OEM Volkswagen Rear Brake Caliper Carrier, part number 3AA615425B. This essential component is designed to securely hold the brake caliper in its correct position, ensuring proper brake pad alignment and effective braking. It is specifically for the left-hand side of the vehicle's rear axle. Constructed from robust cast metal, it provides the necessary rigidity and strength for braking forces. Weighing approximately 1.29 kg, this carrier is built to withstand demanding conditions. Choosing a genuine OEM brake caliper carrier ensures precise mounting, correct tolerances, and optimal braking system performance and safety.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 17 × 10.5 × 9.5 cm
- Shipping weight
- 1.29 kg

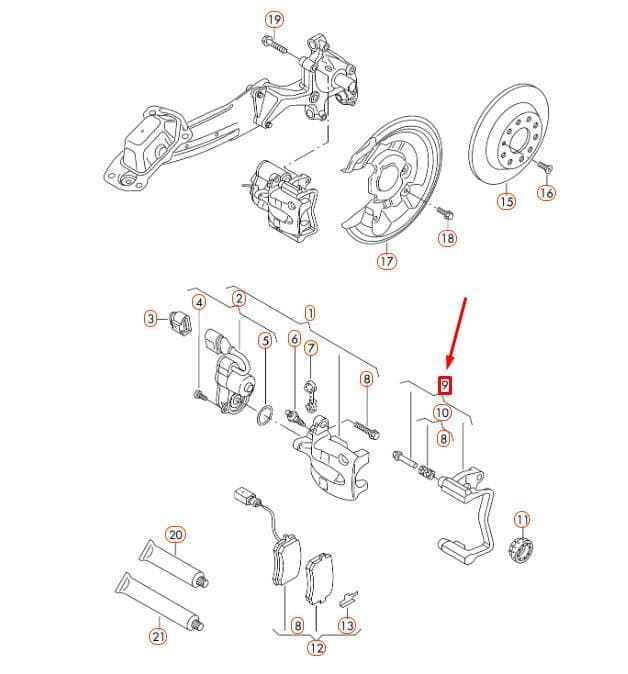

Parts diagram & fitment
9 vehiclesBrake Carrier With Pad Retaining Pin — locate 3AA615425B Volkswagen Rear Brake Caliper Carrier | Left Side in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(30)
- 1Bolt WHT003250
- 2Part 211611483
- 3Valve 1K0615273C
- 4HousingRight3C0615404B
- 4HousingLeft3C0615403B
- 6Plate BrakRight3AA615426B
- 7Servomotor 3C0998281A
- 8Seal Ring 4E0615137
- 9Screw N01470111
- 10Screw N91168901
- 11Brakedisc 1K0615601AD
- 11Brake Disc JZW615601F
- 12Cov PlateLeft5N0615611D
- 12Cov PlateRight5N0615612C
- 12Cov PlateRight5N0615612D
- 12Cov PlateLeft5N0615611C
- 13Bolt N91073301
- 15Bolt N10648301
- 16Br Lining 3C0698451F
- 16Part JZW698451E
- 16Part JZW698451G
- 17Plate 1K0615231B
- 18Rep Set 1K0698470
- 19Gask Set 8D0698671
- 20BracketRight3C0615376A
- 20BracketLeft3C0615375A
- 21Screw N10687901
- 22Paste G000650
- 23Grease G052150A2
- 25Housing 1J0973752
Compatible / alternative parts(10)
Diagrams & fitment data powered by oemdiagrams.com
3AA615425B Volkswagen Rear Brake Caliper Carrier | Left Side is fitted on: Passat CC 2008-2012; passat estate 2008-2011; Sharan Blue Motion 2010-2015; Passat saloon 2010-2015; Tiguan 4Motion 2011-2018; Passat CC 2011-2016; ALTEA 2004-2006; ALTEA 07> 2006-; Audi Q3 quattro 2011-2015.
