3AF809605 Side Part
€815.74 excl. VAT
- 3AF809605This pageNot stocked
Dec 2011 - 3AF809605ANot stocked
Jul 2012 - 3AF809605BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

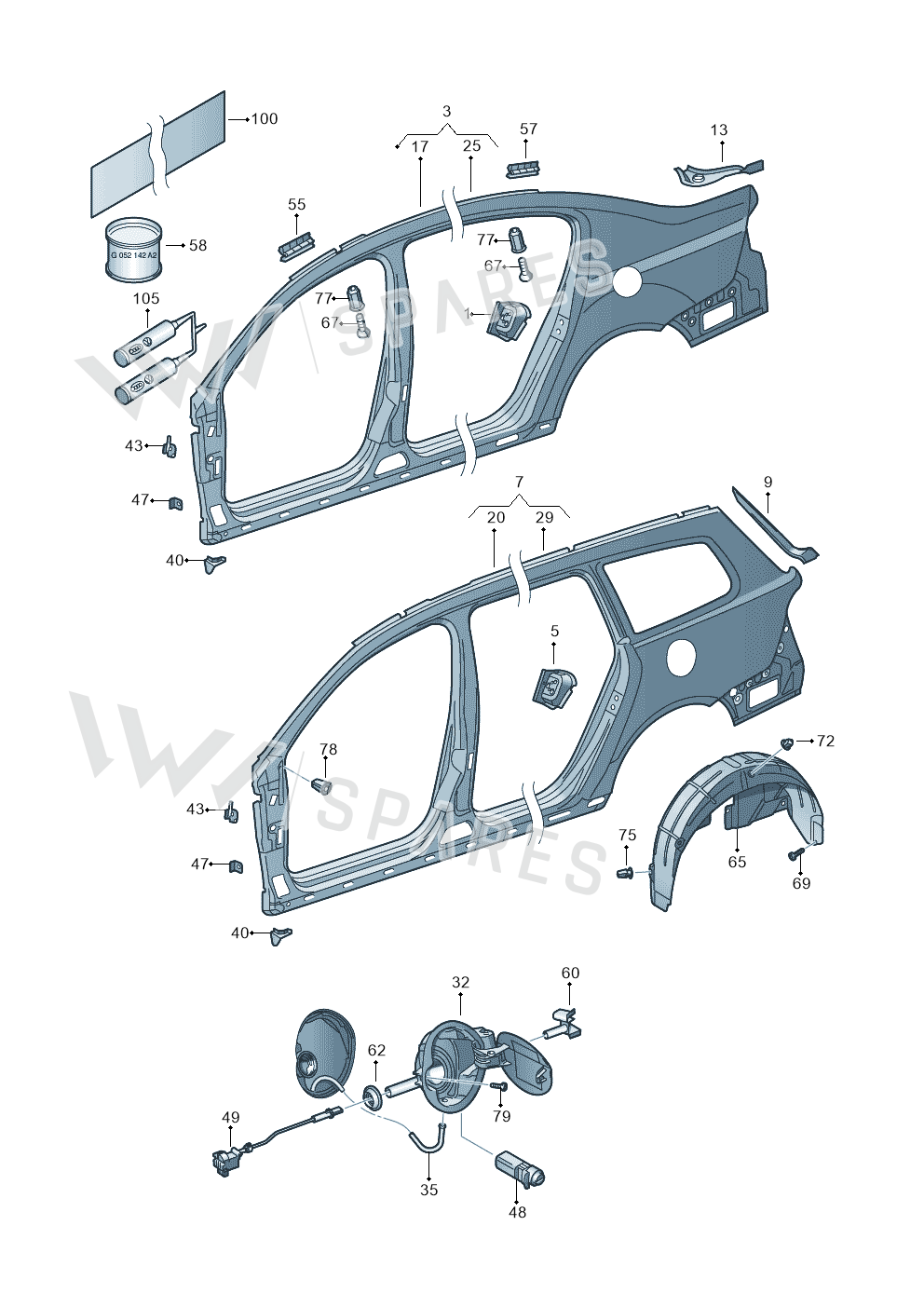

1 vehicleSide Part — locate Side Part in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1ReinforceRight3C5809612
- 1ReinforceLeft3C5809611
- 3Side PartRight3AE809606B
- 3Side PartLeft3AE809605B
- 5ReinforceRight3C9809612
- 5ReinforceLeft3C9809611
- 7Side PartRight3AF809606B
- 7Side PartLeft3AF809605B
- 9Seal ChannelRight3AF809642
- 9Seal ChannelLeft3AF809641
- 13Seal ChannelRight3AE809644
- 13Seal ChannelLeft3AE809643
- 17SectionRight3AE809836
- 17SectionLeft3AE809835
- 20SectionRight3AF809836
- 20SectionLeft3AF809835
- 25SectionRight3AE809844
- 25SectionLeft3AE809843
- 29SectionRight3AF809844
- 29SectionLeft3AF809843
- 32Part 3AE809857A
- 32Tank Flap 3AF809857
- 32Part 3AF809857A
- 32Tank Flap 3AE809857
- 35Hose 3AA809937
- 35Part 3D0809937B
- 40BracketRight3C0810334
- 40BracketLeft3C0810333
- 43BracketRight3C0810380
- 43BracketLeft3C0810379
- 47Bracket 3C0810423
- 48Open Aid 6Q6809986C
- 49Element 3AA810773
- 55ReinforceRight3AE810826
- 55ReinforceLeft3AE810825
- 57ReinforceRight3AE810828
- 57ReinforceLeft3AE810827
- 58Hard Foam D506110A2
- 582 Pk Foam D506KD1A3
- 60Sleeve 3AF810899
- 60Sleeve 3AE810899
- 62Seal Ring 3B0810911A
- 65LinerRight3AA810972B
- 65LinerLeft3AA810971B
- 67Screw 6Q0860137A
- 69Bolt N10354602
- 72Part N10516801
- 75Part N90833801
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Passat saloon | 2010-2015 | 7 | 1 | K8D |
Diagrams & fitment data powered by oemdiagrams.com
Side Part is fitted on: Passat saloon 2010-2015.
