Product overview
Genuine OEM Volkswagen Coolant Pipe, part number 3C0121070AB. This critical component is responsible for transporting engine coolant throughout the cooling system, ensuring efficient heat exchange and maintaining optimal engine operating temperatures. It connects various hoses and components within the engine bay. Weighing 0.2485 kg with dimensions of approximately 39cm x 9cm x 5cm. Using a genuine OEM coolant pipe guarantees correct routing geometry, material resistance to coolant chemicals, and precise fitment, preventing leaks and cooling system failures.
Technical details
- Category
- Engine Cooling
- Country of origin
- Germany
- Customs (HS) code
- 40093100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39 × 9 × 5 cm
- Shipping weight
- 0.25 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

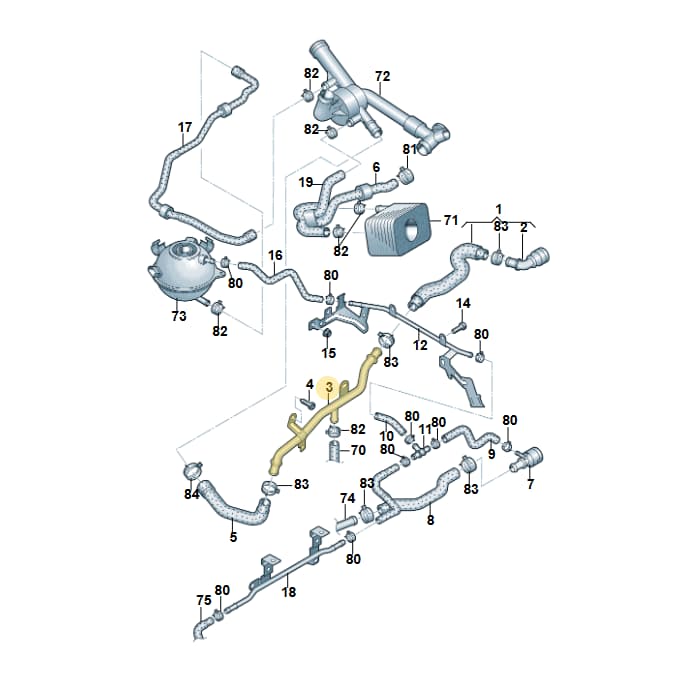

14 vehiclesCoolant Pipe — locate 3C0121070AB Volkswagen Coolant Pipe | Engine Cooling System in the official exploded view and explore the surrounding assembly.
Parts in this assembly22
- 1Hose 3C0122073EJ
- 2Coupl Piece 1J0122291D
- 4Bolt N91096701
- 5Hose 3C0121073S
- 6Hose 03H121049
- 7Coupl Piece 1K0122291C
- 8Hose 3C0121157AT
- 9Hose 3C0121447AQ
- 10Hose 3C0121447AP
- 11Tpiece N90693001
- 12Water Pipe 3C0121070AA
- 14Bolt N10335202
- 15Collar Nut N10609202
- 16Hose 3C0121447AK
- 17Hose 3C0121109AC
- 18Bracket 03H131561B
- 80Clamp N90686701
- 81Clamp N90926401
- 82Clamp N90686901
- 83Clamp N90687001
- 84Clamp N90687101
- 85Clamp N90687201
Vehicle fitment table14
Europe (9)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| superb | 2013-2015 | 3 | 1 | |
| Passat CC | 2011-2016 | 3 | 1 | |
| Passat saloon | 2010-2015 | 3 | 1 | TV0 |
| superb comfort | 2008-2013 | 3 | 1 | |
| Passat CC | 2008-2012 | 3 | 1 | |
| passat estate | 2008-2011 | 3 | 1 | |
| EOS 2.0 | 2008-2010 | 3 | 1 | TV0 |
| Passat/4Motion 08 | 2007- | 3 | 1 | |
| Passat/4Motion | 2005-2007 | 3 | 1 | TH0 |
Other markets (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| New Passat | 2015-2022 | 3 | 1 | |
| New Passat | 2011-2019 | 3 | 1 | |
| New Passat | 2011-2015 | 3 | 1 | TV0 |
| Magotan 1.4 | 2011-2012 | 3 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3C0 platform | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
3C0121070AB Volkswagen Coolant Pipe | Engine Cooling System is fitted on: superb 2013-2015; Passat CC 2011-2016; Passat saloon 2010-2015; superb comfort 2008-2013; Passat CC 2008-2012; passat estate 2008-2011; EOS 2.0 2008-2010; Passat/4Motion 08 2007-; Passat/4Motion 2005-2007; New Passat 2015-2022; New Passat 2011-2019; New Passat 2011-2015; Magotan 1.4 2011-2012; 3C0 platform.
