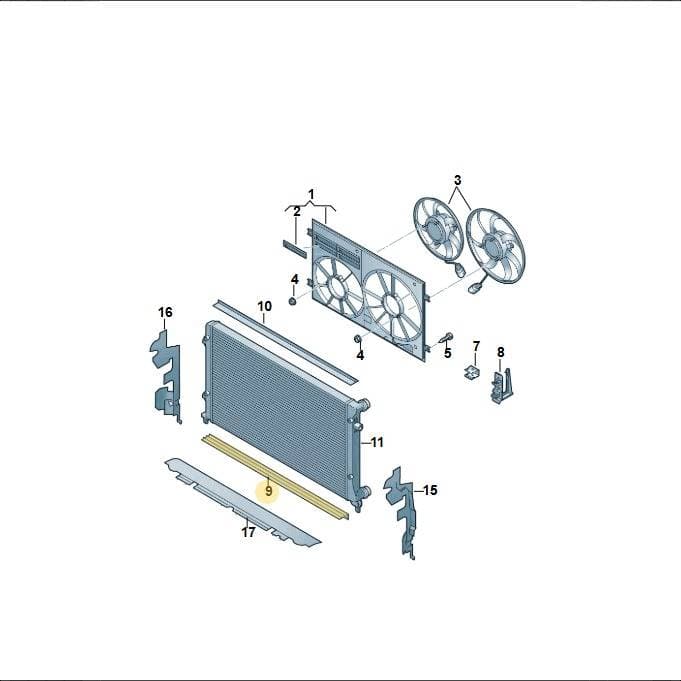

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal, part number 3C0121345AJ. This seal creates a barrier to prevent leaks of fluids such as coolant or oil. It is located at the lower edge of the radiator assembly. The seal measures approximately 0.574 meters in length, 0.04 meters in width, and 0.036 meters in height. Genuine OEM seals are manufactured to precise tolerances to ensure a perfect fit and reliable sealing performance, preventing costly leaks and damage.
Technical details
- Category
- Engine Cooling
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 57.4 × 4 × 3.6 cm
- Shipping weight
- 0.05 kg
Parts diagram & fitment
7 vehiclesSeal — locate 3C0121345AJ Volkswagen Seal | Radiator Lower in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Housing 03C121111H
- 2Cover 03C121121C
- 3Seal Ring 03C121119C
- 4Coolant Rg 03C121110A
- 5Screw N10611201
- 8Cover 03C121118C
- 9Seal Ring 03C121119
- 10Coolant Rg 03C121110F
- 12Sender 06A919501A
- 13Seal Ring N90316801
- 14Spring 032121142
- 17Seal 03C121119E
- 18Bolt N91097001
- 20Tank 1K0121407A
- 21Cover 3B0121321
- 22Seal Ring 1H0121687A
- 23Bolt N91090701
- 24Part 811807577C
- 25Coolant G013A8JM8
- 25Coolant G013A8JM9
- 25Coolant G013A8JM1
- 30Radiator 1K0121253F
- 30Part 1K0121253P
- 31Seal 3C0121345AL
- 33Bracket 1K0121367C
- 34Bolt N90808201
- 35Bush 1K0121367F
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
3C0121345AJ Volkswagen Seal | Radiator Lower is fitted on: Passat/4Motion 2005-2007; MAGOTAN (PASSAT) 07> 2007-; Passat/4Motion 08 2007-; Passat CC 2008-2012; passat estate 2008-2011; Passat saloon 2010-2015; Passat CC 2011-2016.
