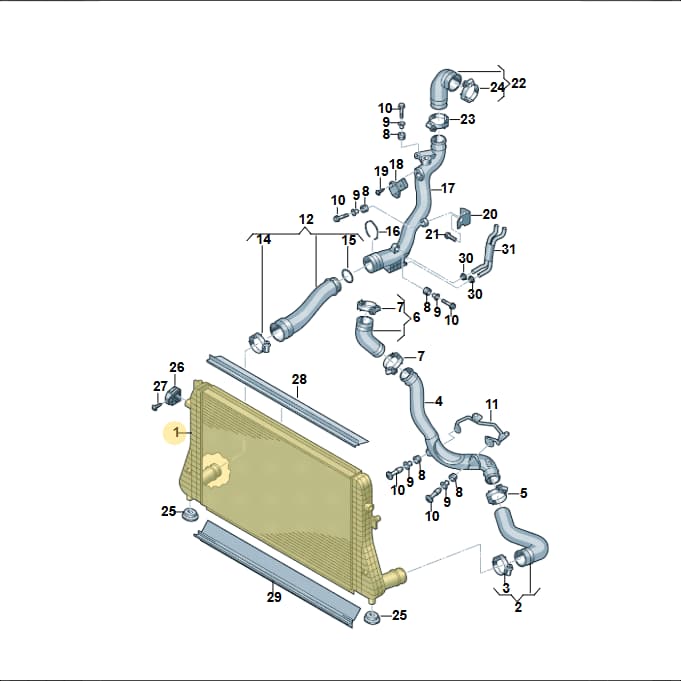

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Engine Charge Air Cooler, part number 3C0145805AP. This component is crucial for turbocharged engines, cooling the compressed air from the turbocharger before it enters the engine. It is typically located at the front of the vehicle, often behind the bumper. Weighing 5.607 kg and measuring 0.87m in length, it is a substantial part of the intake system. Using a genuine OEM charge air cooler ensures factory-specified cooling efficiency and durability, critical for engine longevity and performance.
Technical details
- Category
- Intake & Turbo
- Customs (HS) code
- 87089135
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 87 × 46 × 14 cm
- Shipping weight
- 5.61 kg
Parts diagram & fitment
3 vehiclesCharge Air Cooler — locate 3C0145805AP Volkswagen Engine Charge Air Cooler | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(28)
- 1Cooler 3C0145805AM
- 2Hose 1K0145832AK
- 3Clamp N10619901
- 4Chargetube 1T0145840
- 5Clamp N10518901
- 6Hose 1K0145828C
- 7Clamp N10518801
- 8Grommet 867129669
- 9Bush 1K0129734B
- 10Bolt N90993601
- 11Part 1K0145812B
- 12Hose 3C0145834Q
- 15Seal Ring 3C0145117D
- 16Clip 1K0145769H
- 17Air Pipe 3AA145770
- 18Sensor 03G906051E
- 19Bolt N90905903
- 20Bracket 1K0145961B
- 21Bolt N10335202
- 22Hose 1K0145838L
- 24Clamp N10544401
- 25Bush 1K0121367F
- 26Bracket 1K0121367P
- 27Bolt N90808201
- 28Seal 3C0121345AN
- 29Seal 3C0121345AH
- 30Support 03C199207A
- 31Screw N91026802
Diagrams & fitment data powered by oemdiagrams.com
3C0145805AP Volkswagen Engine Charge Air Cooler | Genuine OEM is fitted on: Passat CC 2008-2012; Passat saloon 2010-2015; Passat CC 2011-2016.
