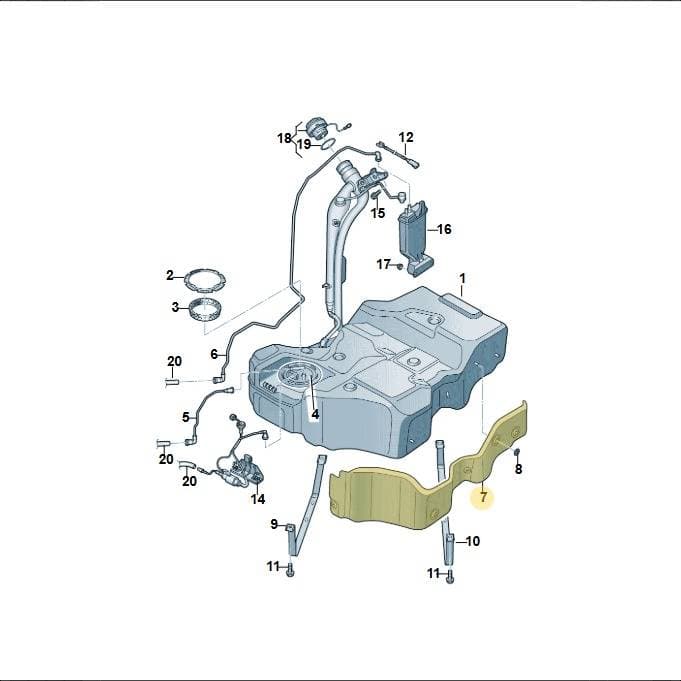

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield Plate, part number 3C0201307. This heat shield protects fuel system components from excessive heat. It is located in the fuel system assembly. The part has dimensions of 0.625m length, 0.6m width, and 0.2m height, weighing 0.431 kg. Genuine OEM heat shields are precisely shaped to fit and effectively dissipate heat, protecting sensitive fuel system components.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 62.5 × 60 × 20 cm
- Shipping weight
- 0.43 kg
Parts diagram & fitment
6 vehiclesHeat Sh — locate 3C0201307 Volkswagen Heat Shield Plate | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(19)
- 1Container 3C0201055M
- 1Part 3C0201055AG
- 1AContainer 3C0201055AH
- 2Part 1K0201375
- 6Fuel Line 3C0201293C
- 6Fuel Line 3C0201293B
- 7Fuel Line 3C0201294A
- 9Washer N90335005
- 10Line 3C0201995B
- 12Line 1J0201142A
- 17Clip 1T0971939B
- 18Part 3C0201550E
- 18APart 3C0201550F
- 19Seal Ring 191201557
- 21End Piece 895201890
- 22Container 3C0201801E
- 23Collar Nut N90175205
- 25Bolt N0195307
- 26Bolt N10157902
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
3C0201307 Volkswagen Heat Shield Plate | Genuine OEM is fitted on: Passat/4Motion 2005-2007; Passat/4Motion 08 2007-; Passat CC 2008-2012; passat estate 2008-2011; Passat saloon 2010-2015; Passat CC 2011-2016.
