Product overview

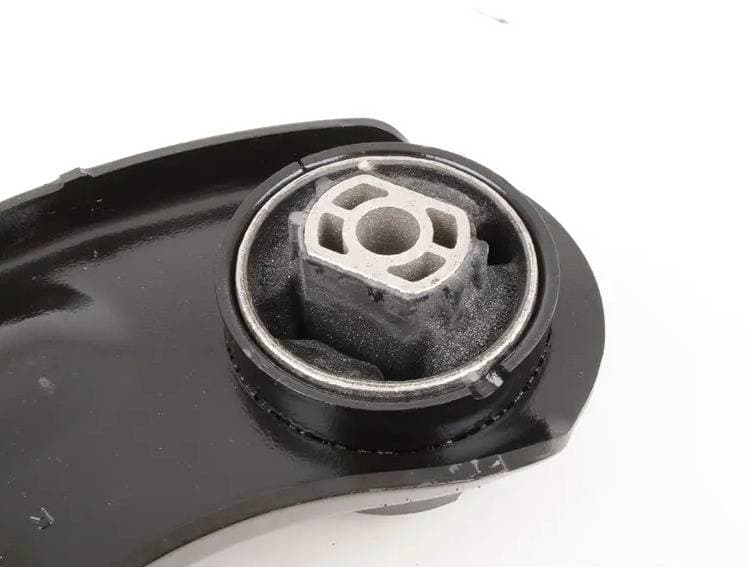

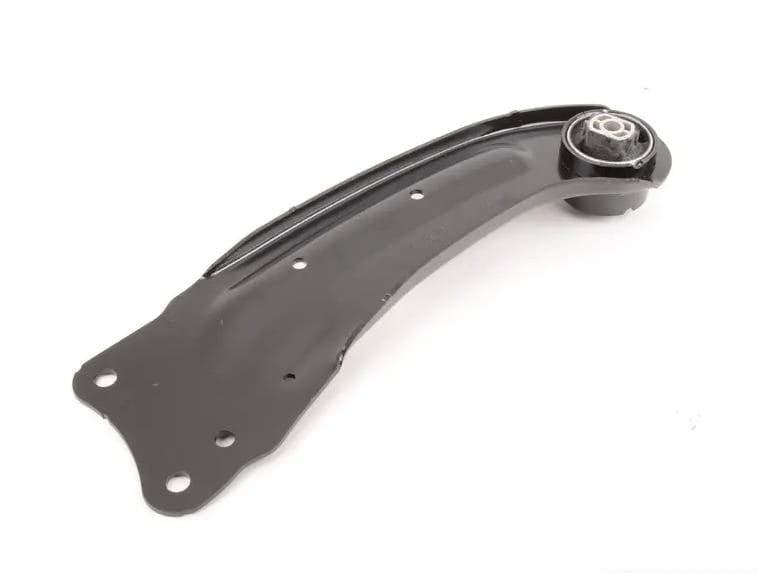

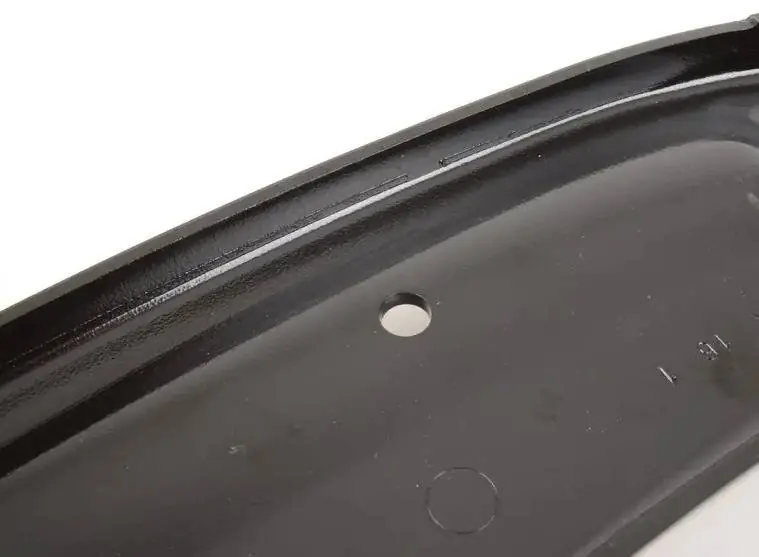

Genuine OEM Audi Rear Trailing Arm, part number 3C0505224F. This critical suspension component is located at the rear right side of the vehicle, connecting the wheel hub assembly to the chassis. It helps control wheel movement and maintain proper alignment, contributing to stable handling and ride comfort. Constructed from robust metal and weighing approximately 1.736 kg, it includes a pre-installed bushing. Opting for a genuine OEM trailing arm ensures the correct suspension geometry, material strength, and bushing quality, which are essential for maintaining vehicle stability, tire wear, and overall safety.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088099
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 45 × 15 × 7 cm
- Shipping weight
- 1.74 kg

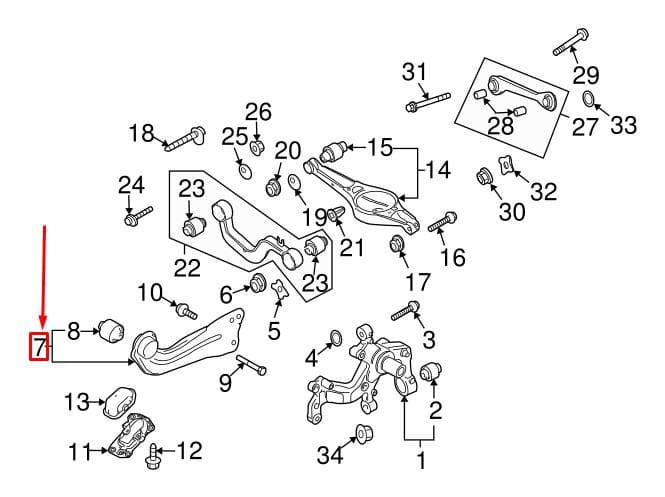

Parts diagram & fitment

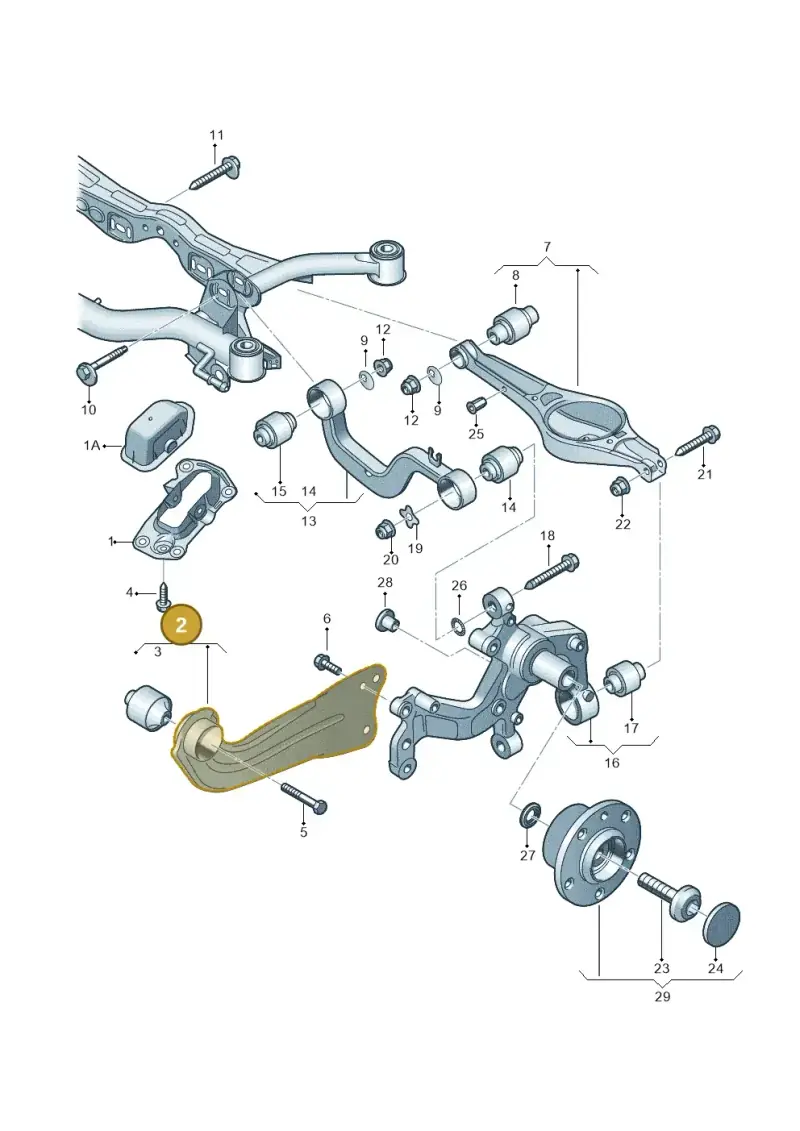

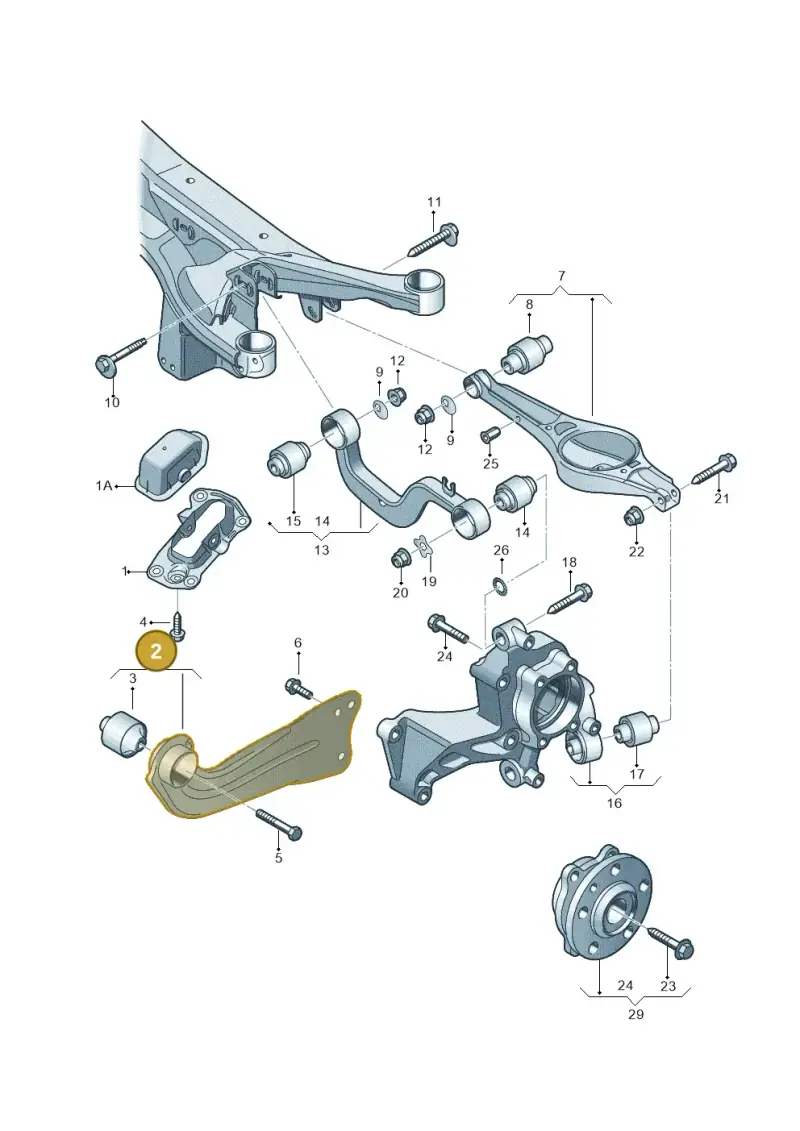

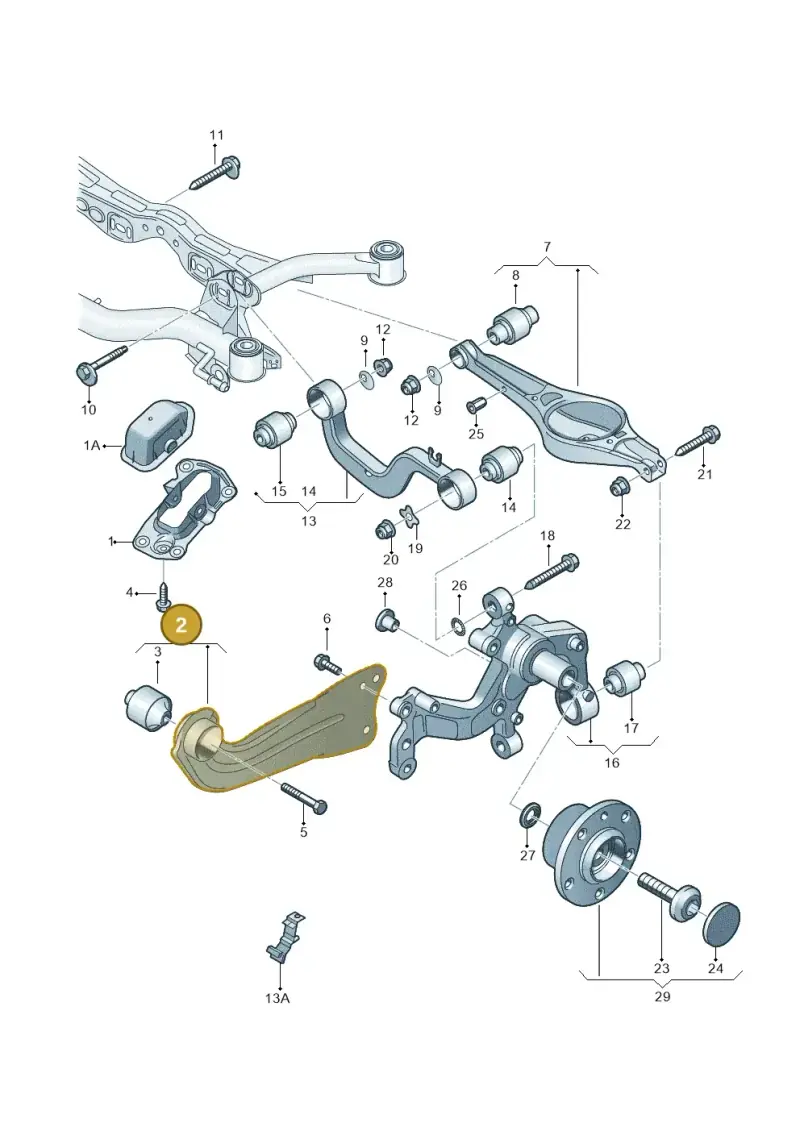

6 vehiclesAxle Guide — locate 3C0505224F Audi Rear Trailing Arm | Right Side in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(29)
- 1Bracket 3C0505130B
- 1Bracket 3C0505129B
- 1AAp Cover Cap For Bearing Support Cover Cap ForRight3C0501476A
- 1AAp Cover Cap For Bearing Support Cover Cap ForLeft3C0501475A
- 2Axle GuideLeft3C0505223F
- 3Rubber Bush 1K0505541D
- 4Bolt N90648402
- 5Bolt N10170804
- 6Bolt N10628401
- 7Part 1K0505311AB
- 9Washer WHT000232
- 10Bolt WHT000227
- 11Bolt WHT001761
- 12Collar Nut N10106402
- 13Wishbone 5Q0505323C
- 16HousingRight3C0505434K
- 16HousingLeft3C0505433K
- 17Rubber Bush 1K0505553A
- 18Bolt N91201301
- 19Washer 1K0505193
- 20Collar Nut N10401801
- 21Bolt N10640501
- 23Bolt WHT007150
- 24Part 1J0501249C
- 25Part N10597701
- 26Ret Washer WHT000724
- 27Washer WHT000412
- 28Part 3C0501249
- 29Wheel Bear 3G0598611A
Compatible / alternative parts(10)
Diagrams & fitment data powered by oemdiagrams.com
3C0505224F Audi Rear Trailing Arm | Right Side is fitted on: Audi Q3 1.4 2016-; Audi Q3 1.4 2012-2016; Audi RSQ3 qu. 2.5 2013-2018; Audi Q3 2.0 TDI 2014-2019; Audi Q3 quattro 2.0 2016-2019; Tiguan 4Motion 2011-2018.
