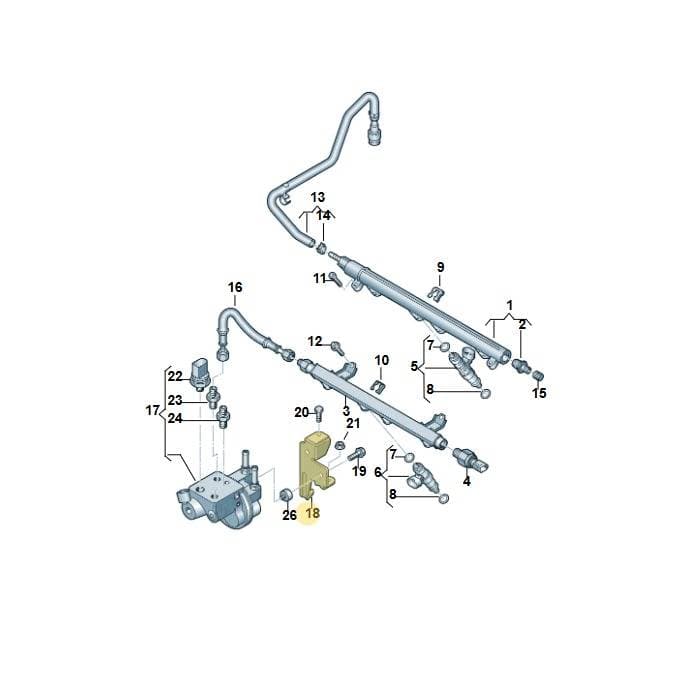

Number 18 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Retaining Plate, part number 3C0906109. This component is designed to securely hold specific parts in place within the fuel system assembly. It is located at position 18 in the diagram. The plate weighs 0.18 kg and measures 0.12m x 0.08m x 0.04m. Genuine OEM retaining plates ensure precise fitment and secure mounting, preventing component vibration or displacement.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 73269098
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 12 × 8 × 4 cm
- Shipping weight
- 0.18 kg
Parts diagram & fitment
9 vehiclesRetaining Plate — locate 3C0906109 Volkswagen Retaining Plate | Fuel System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(29)
- 1Rail 06A133317AN
- 2Valve 022133434
- 3Rail 06G133317
- 4Sensor 03C906051A
- 5Valve 06A906031CE
- 6Gas Valve 03C906039A
- 6Gas Valve 06G906039
- 7Seal Ring 06A906145
- 7Seal Ring 07C906149
- 8Seal Ring 06A906149B
- 9Clip 037133047
- 10Clip 06A133047A
- 11Bolt N10156206
- 12Bolt N10451405
- 13Fuel Line 1T0133986E
- 14Clamp N90686701
- 15Part 06G133335
- 16Fuel Line 2K0133321
- 17Regulator 3C0906011E
- 18Part 2K0198469
- 19Bolt N10005306
- 20Bolt N90440706
- 21Collar Nut N01508213
- 22Sensor 2K0906052A
- 23Connection 2K0201287A
- 23Connection 2K0201287B
- 24Connection 2K0201287
- 24Connection 2K0201287C
- 26Rubber Bush 2K0959209A
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
3C0906109 Volkswagen Retaining Plate | Fuel System is fitted on: CADDY 2004-; TOURAN 2005-2006; TOURAN 2006-; caddy panel van 2008-2010; passat estate 2008-2011; Touran 1.9 2008-2010; Caddy Maxi Kombi 2010-2015; Touran 2.0 2010-2015; Passat saloon 2010-2015.
