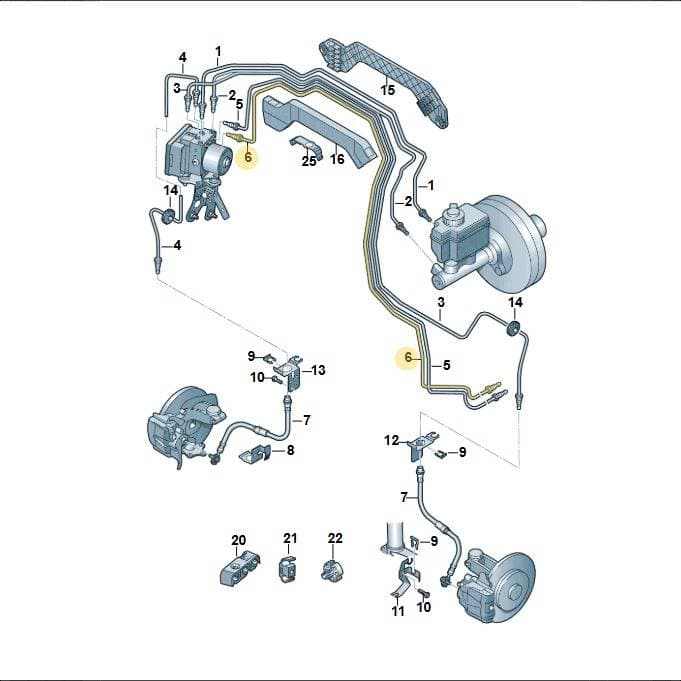

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Brake Pipe, part number 3C1614726B. This brake pipe transports brake fluid under pressure from the master cylinder to the brake calipers or wheel cylinders. It is located at position 6 in the brake system assembly. The pipe has a length of 0.76 meters. Genuine OEM brake pipes ensure precise fluid transfer and maintain system integrity, preventing leaks and ensuring optimal braking performance.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 76 × 70 × 28 cm
- Shipping weight
- 0.14 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesBrake Pipe — locate 3C1614726B Volkswagen Brake Pipe | Position 6 in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly25
- 1Brake PipeRight3C2614739D
- 1Brake PipeLeft3C1614739D
- 2Brake PipeRight3C2614740D
- 2Brake PipeLeft3C1614740D
- 3Brake PipeRight3C2614723
- 3Brake PipeLeft3C1614723A
- 4Brake PipeRight3C2614724
- 4Brake PipeLeft3C1614724
- 5Brake PipeRight3C2614725A
- 5Brake PipeLeft3C1614725B
- 6Brake PipeRight3C2614726A
- 7Brake Hose 3AA611701A
- 8Retainer 1K0611842D
- 9Bracket 191611715
- 10Screw N10703001
- 11Retainer 3C0611841A
- 12RetainerLeft1K0611845B
- 13RetainerRight1K0611846B
- 14Grommet 1K0611751
- 15CoverRight3C2611716
- 15CoverLeft1K1611716B
- 16Cover 1K1611732F
- 16Prot Plate 3C1611732
- 20Bracket 3C0611797C
- 21Clip 8K0611797D
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| Passat CC | 2011-2016 | 6 |
| Passat CC | 2008-2012 | 21 |
| passat estate | 2008-2011 | 21 |
Diagrams & fitment data powered by oemdiagrams.com
3C1614726B Volkswagen Brake Pipe | Position 6 is fitted on: Passat CC 2011-2016; Passat CC 2008-2012; passat estate 2008-2011.
