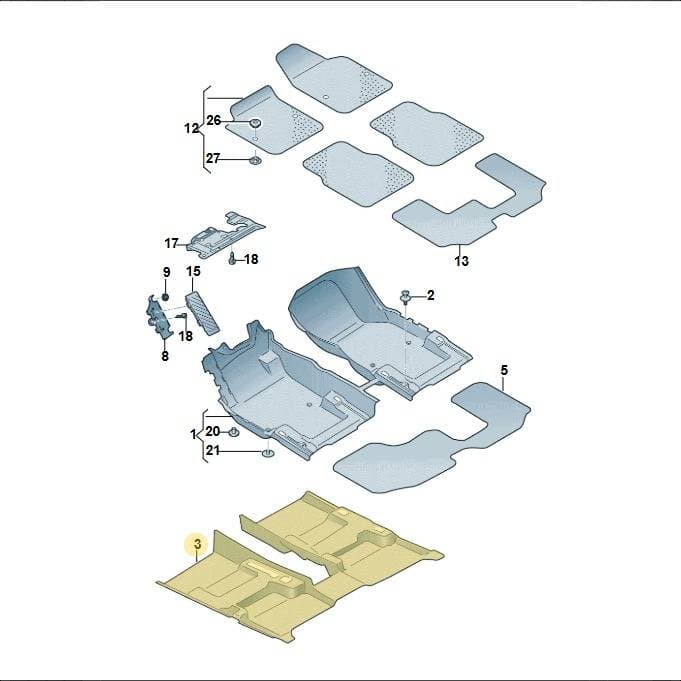

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Floor Insulation, part number 3CN863919C. This component provides thermal and acoustic insulation for the vehicle's floor, enhancing cabin comfort. It is located in the floor area, as indicated by diagram position 3. The part weighs 4.92 kg and has dimensions of 1.53m x 1.4m x 0.17m. Genuine OEM floor insulation is critical for maintaining cabin temperature and reducing road noise.
Technical details
- Category
- Interior Trim
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 153 × 140 × 17 cm
- Shipping weight
- 4.92 kg
Parts diagram & fitment
1 vehicleInsulation For Floor — locate 3CN863919C Volkswagen Floor Insulation | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(18)
- 1Flooring 3CN863103J
- 1Flooring 3CN863103K
- 2Spring Rivet N91158501
- 3Insulation 3CN863920C
- 3Insulation 3CN863920D
- 5Flooring 3CN863367E
- 5Flooring 3CN863367D
- 8Holder 3CN864775
- 9Collar Nut N90757901
- 12Floor Mat 3CN863011B
- 15Cover 3CN864551
- 15Cover 3CN864777
- 17Cover 3CN863081D
- 18Bolt N90698606
- 20Bracket 8E0864227
- 21Part 8E0864229
- 26Part 3C0864521
- 27Bracket 3C0864523
Compatible / alternative parts(12)
- Part 3CN863103A
- Part 3CN863103F
- Part 3CN863920C
- Part 3CN863367C
- Part 3CN863367E
- Part 3CN863934E
- Part 3CN863103H
- Part 3CN863934F
- Part 3CN863934G
- Part 3CN863367B
- Part 3CN863920B
- Part 3CN863920D
Diagrams & fitment data powered by oemdiagrams.com
3CN863919C Volkswagen Floor Insulation | Genuine OEM is fitted on: Atlas 2023-2024.
