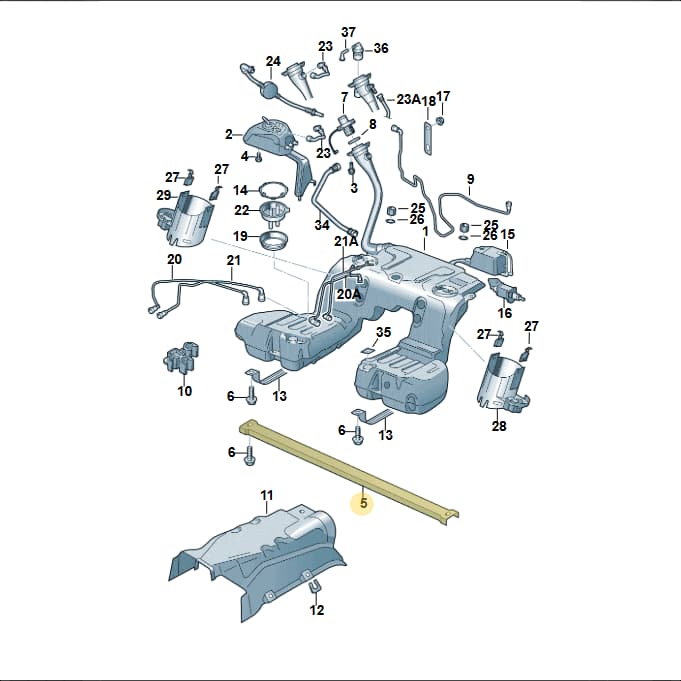

Number 5 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Cross Member, part number 3D0201259A. This structural component provides essential support for the fuel tank assembly, ensuring its secure mounting. Manufactured to precise specifications for reliable fit and function, it is a critical part of the fuel system's integrity.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 91 × 5.2 × 7.5 cm
- Shipping weight
- 0.83 kg
Parts diagram & fitment
4 vehiclesCross Member For Fuel Tank — locate 3D0201259A Volkswagen Fuel Tank Cross Member | OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(43)
- 1Container 3D0201060CF
- 1Container 3D0201060CG
- 1Part 3D0201060BQ
- 2Container 3D0201301AA
- 3Bolt N90440706
- 4Bolt N10158605
- 6Bolt N0197006
- 7Part 3D0201550AC
- 7Part 3D0201550P
- 7Part 3D0201550AE
- 8Seal Ring 3C0201557
- 9Line 3D0201160K
- 9Line 3D0201160S
- 10Clip 3D0201449N
- 11Shield Plt 3D0201308F
- 12Ret Washer N90070306
- 13Strap 3D0201653A
- 14Part WHT000506
- 17Collar Nut N01508210
- 18Strap 3D0201211A
- 20Fuel Line 3D0201293J
- 20Fuel Line 3D0201293G
- 20AFuel Line 3D0201293H
- 20AFuel Line 3D0201293R
- 21Fuel Line 3D0201294H
- 21Fuel Line 3D0201294F
- 21APart 3D0201294N
- 21AFuel Line 3D0201294Q
- 23Line 3D0201993AB
- 23Line 3D0201993B
- 23ALine 3D0201993N
- 24Line 3D0201160T
- 24Line 3D0201160G
- 26Seal Ring 8E0919133B
- 26Seal Ring 1J0919133B
- 27Part 3D0201398
- 28Bracket 3D0201505G
- 29Bracket 3D0201505H
- 30Prot Plate 4E0201308A
- 31Bolt N0901484
- 32Part N90327504
- 33Cover 3D0201976A
- 34Line 3D0201993J
Diagrams & fitment data powered by oemdiagrams.com
3D0201259A Volkswagen Fuel Tank Cross Member | OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
