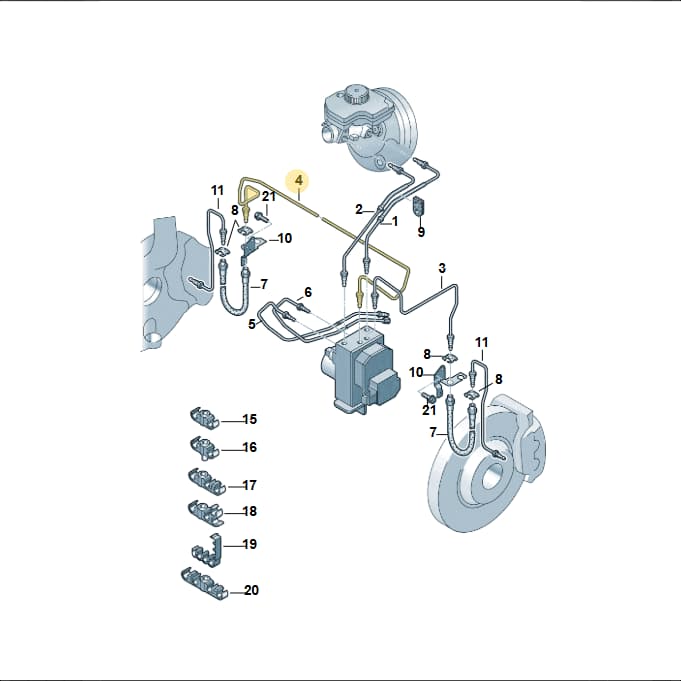

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hydraulic System Hose, part number 3D1614724J. This hose is a critical component that connects the hydraulic system to the brake hose, ensuring proper brake function. It is positioned in the hydraulic system assembly. Manufactured from durable materials to withstand brake system pressures and environmental conditions. Genuine OEM parts ensure exact fitment and reliable operation, crucial for safety-critical systems like brakes.
Technical details
- Category
- Emissions
- Customs (HS) code
- 87083091
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 108 × 24 × 14 cm
- Shipping weight
- 0.15 kg
Parts diagram & fitment
4 vehiclesBrake Pipe From Hydraulics To Brake Hose — locate 3D1614724J Volkswagen Hydraulic System Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(23)
- 1Brake Pipe 3D1614721E
- 1Brake Pipe 3D1614721F
- 2Brake Pipe 3D1614722E
- 2Brake Pipe 3D1614722F
- 3Brake Pipe 3D1614723H
- 5Brake Line 3D1614739H
- 6Brake Line 3D1614740H
- 7Brake Hose 3D0611701G
- 8Spring 4D0611715B
- 9Grommet 3D1614769
- 10RetainerRight3D0611844C
- 10RetainerLeft3D0611843C
- 11Brake LineLeft3D0611721H
- 11Brake LineLeft3D0611721J
- 11Brake LineRight3D0611722H
- 11Brake LineRight3D0611722J
- 15Bracket 3D0611797
- 16Bracket 3D0611797D
- 17Bracket 3D0611797A
- 18Bracket 3D0611797E
- 19Bracket 6N0611797D
- 20Bracket 3D0611797C
- 21Bolt N90245210
Diagrams & fitment data powered by oemdiagrams.com
3D1614724J Volkswagen Hydraulic System Hose | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
