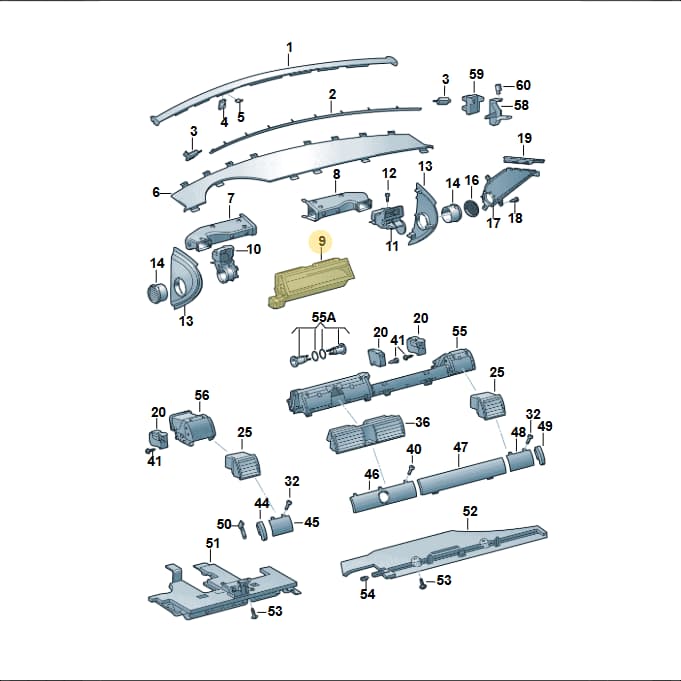

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Air Distribution Box, part number 3D1819509C. This component is responsible for directing airflow within the cabin climate control system, ensuring proper ventilation and temperature distribution. It is marked as number 9 in the diagram and is part of the dashboard assembly. The part weighs 0.865 kg. Genuine OEM air distribution boxes are designed for exact fitment and optimal airflow, ensuring the efficiency of the heating and A/C system.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 35.5 × 17.6 × 11.7 cm
- Shipping weight
- 0.87 kg
Parts diagram & fitment
4 vehiclesAir Distribution Housing — locate 3D1819509C Volkswagen Air Distribution Box | Heating & A/C in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 1Air Vent 3D0857206C
- 1Air Vent 3D0857206B
- 2Trim 3D0819955A
- 2Trim 3D0819955
- 3PartRight3D0858756
- 3PartLeft3D0858755
- 4Clip 3B0858137
- 5Clip 4A0853107
- 6CoverRight3D2815755A
- 6CoverLeft3D1815755B
- 7Air GuideRight3D2819633A
- 7Air GuideLeft3D1819633B
- 8Air GuideRight3D2819634A
- 8Air GuideLeft3D1819634A
- 9HousingRight3D2819509C
- 17Air Channel 3D0819870
- 17Air Channel 3D0819869
- 19Air VentRight3D0819696
- 19Air VentRight3D0819696A
- 19Air VentLeft3D0819695
- 19Air VentLeft3D0819695A
- 20Servomotor 3D0820511A
- 25VentLeft3D1819702
- 25VentRight3D2819701
- 25VentRight3D2819702
- 25VentLeft3D1819701
- 36Vent 3D0819728
- 41Screw N0441155
- 44Panel 3D0858419C
- 45TrimRight3D2815743A
- 45TrimLeft3D1815743C
- 46TrimLeft3D1819744F
- 46TrimRight3D2819744C
- 46TrimRight3D2819744D
- 46TrimLeft3D1819744E
- 47Panel 3D1853189D
- 48TrimRight3D2815744A
- 48TrimLeft3D1815744B
- 49Panel 3D0858420C
- 50PartRight3D1857526
- 50PartLeft3D1857525
- 51CoverRight3D2819659
- 51CoverLeft3D1819659A
- 52CoverRight3D2819592A
- 52CoverLeft3D1819592A
- 53Bolt N90807405
- 55HousingRight3D2853203E
- 55TrimLeft3D1853204J
Diagrams & fitment data powered by oemdiagrams.com
3D1819509C Volkswagen Air Distribution Box | Heating & A/C is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
