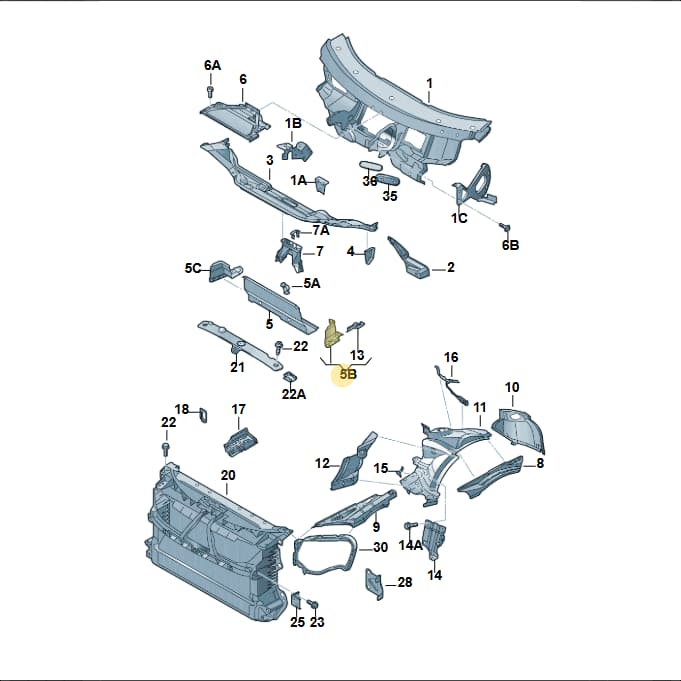

Number 5B marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Reinforcement for Water Box, part number 3D2806269B. This reinforcement bracket provides structural support to the water box assembly, ensuring its proper mounting and stability within the engine bay. Manufactured from durable materials to maintain integrity under stress.
Technical details
- Category
- Other
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 21.5 × 13 × 15.2 cm
- Shipping weight
- 0.64 kg
Parts diagram & fitment
4 vehiclesReinforcement F Plen Chamber — locate 3D2806269B Volkswagen Reinforcement | Water Box in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(48)
- 1CPlate 3D2805301
- 2Cross MemberRight3D0805554A
- 2Cross MemberLeft3D0805553A
- 3Cross MemberRight3D2806603A
- 3Cross MemberLeft3D1806603
- 4Clos PlatLeft3D1805088A
- 4Clos PlatRight3D2805087A
- 4Clos PlatRight3D2805088
- 4Clos PlatLeft3D1805087B
- 5Water Box 3D0805277B
- 5BReinforceLeft3D1806269F
- 5CReinforceRight3D2806270B
- 5CReinforceLeft3D1806270F
- 6BBolt N90949402
- 7Valve 3D0805271
- 7AClip 4D0805469B
- 8PlateRight3D0805304G
- 8PlateLeft3D0805303G
- 9Estension 3D0806380F
- 10PlateLeft3D1805116
- 10PlateRight3D2805115
- 10PlateRight3D2805116
- 10PlateLeft3D1805115
- 11Wheel HousingLeft3D1806506C
- 11Wheel HousingRight3D2806505
- 11Wheel HousingRight3D2806506
- 11Wheel HousingLeft3D1806505C
- 12ReinforceRight3D0805206B
- 12ReinforceLeft3D0805205B
- 14Clos ElementRight3D0806358A
- 14Clos ElementLeft3D0806357A
- 14ABolt N10063205
- 16Rip PlateRight3D0805812E
- 16Rip PlateLeft3D0805811E
- 17ReinforceRight3D0805454A
- 17ReinforceLeft3D0805453A
- 18SupportRight3D0805678D
- 18SupportLeft3D0805677D
- 20Carrier 3D0805588E
- 21Cover 3D0805983D
- 22Bolt WHT001136
- 22APart N90657701
- 23Bolt N90816301
- 25R BracketRight3D5805658A
- 25R BracketLeft3D5805657
- 30SupportRight3D0805072D
- 30SupportLeft3D0805071D
- 35Frame 4D0000294A
Diagrams & fitment data powered by oemdiagrams.com
3D2806269B Volkswagen Reinforcement | Water Box is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
