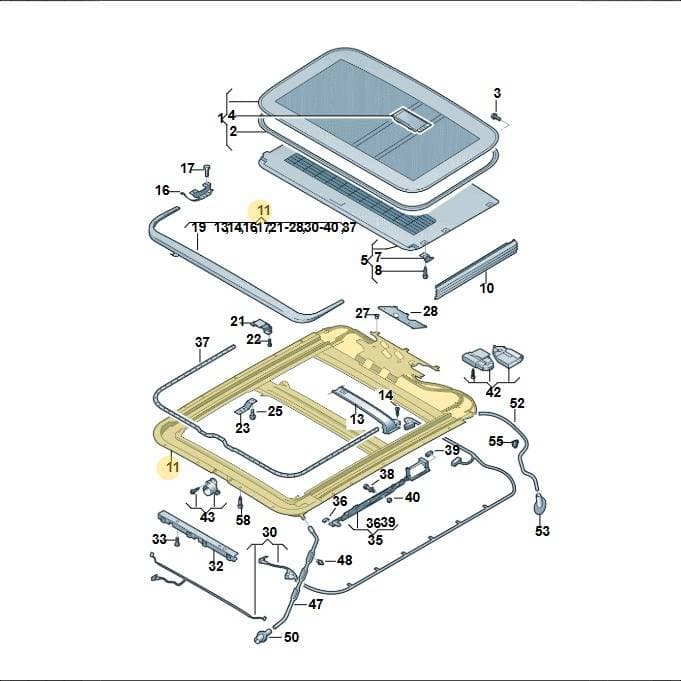

Number 11 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Sliding Roof Frame, part number 3D5877049. This is the structural component that supports and operates the sliding tilt sunroof. It is located at position 11 in the sunroof assembly. Genuine OEM frames are critical for the proper function and sealing of the sunroof, ensuring smooth operation and protection from the elements.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 123.5 × 103 × 5 cm
- Shipping weight
- 17 kg
Parts diagram & fitment
4 vehiclesFrame With Sliding Tilt Actuator — locate 3D5877049 Volkswagen Sliding Roof Frame | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(37)
- 1Glasspanel 3D5877071B
- 1Glasspanel 3D5877071
- 2Seal 3D5877297
- 3Bolt 8D0877721C
- 4Converter 4B0907207A
- 5Frame 3D5877255H
- 5Part 3D5877255C
- 7Glidepiece 3D0877165
- 8Bolt 3D0877721
- 10Trim 3D5877790
- 10Trim 3D5877789
- 11Part 3D5877049A
- 13Channel 3D0877633
- 14Bolt 3D0877722
- 16BearingLeft3D0877485
- 16BearingRight3D0877486
- 17Bolt N0102018
- 19Deflector 3D5877651B
- 19Deflector 3D5877651A
- 21Toggl CtchRight3D0877682
- 21Toggl CtchLeft3D0877681
- 22Bolt 3D0877099
- 23BracketLeft3D0858307A
- 23BracketRight3D0858308A
- 25Bolt N90566602
- 35GuideRight3D0877152
- 35GuideLeft3D0877151
- 38Part 3D0877493
- 40Ut Hexagon Nut Self-locking Hexagon Nut N0111812
- 47HoseRight3D5877202
- 47HoseLeft3D5877201
- 48Bush 3D0867334A
- 50Bungs 3D0877236
- 52Hose 3B7877233
- 52Hose 3D5877233
- 53Drain Tube 1J0877242
- 55Clip 443971847B
Diagrams & fitment data powered by oemdiagrams.com
3D5877049 Volkswagen Sliding Roof Frame | Genuine OEM is fitted on: Phaeton (lang) 2003-2006; PHAETON 08> 2007-; phaeton 4motion 2008-2010; phaeton 4motion 2010-2016.
