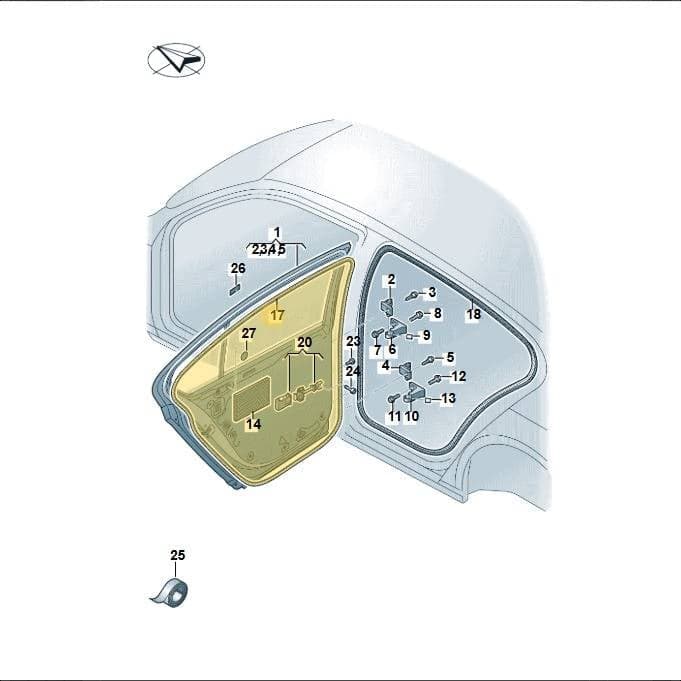

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Door Seal, part number 3J0839701A5AP. This seal is designed to fit around the door frame, preventing water, wind, and noise from entering the cabin. It is positioned on the door frame to create a tight seal when the door is closed. Features a black finish, indicated by the 5AP suffix. Genuine OEM seals ensure exact fitment and long-lasting weather protection.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 40169300
- Manufacturer
- Skoda
- Product Type
- Genuine new auto parts
Parts diagram & fitment
2 vehiclesDoor Seal Outer — locate 3J0839701A5AP Volkswagen Door Seal | Black 5AP in the official exploded view and explore the surrounding assembly.
Parts in this assembly(21)
- 1DoorRight3J0833052A
- 1DoorLeft3J0833051A
- 2HingeRight8X4833408A
- 2HingeLeft8X4833407A
- 3Screw N91247701
- 4HingeRight8X4833406A
- 4HingeLeft8X4833405A
- 6HingeRight8V5833404C
- 6HingeLeft8V5833403C
- 7Screw N91257201
- 9Part 8T0837947
- 14Sound Abs 323863950
- 14Insulation 6X0863886
- 17Door SealRight3J0839702
- 17Door SealLeft3J0839701
- 18Door SealRight3J0867914A
- 18Door SealLeft3J0867913A
- 20Door Catch 3J0839203
- 23Bolt N10833601
- 24Bolt N91278801
- 25Tape D437S40A2
Diagrams & fitment data powered by oemdiagrams.com
3J0839701A5AP Volkswagen Door Seal | Black 5AP is fitted on: passat estate 2023-; Superb Combi 2023-.
