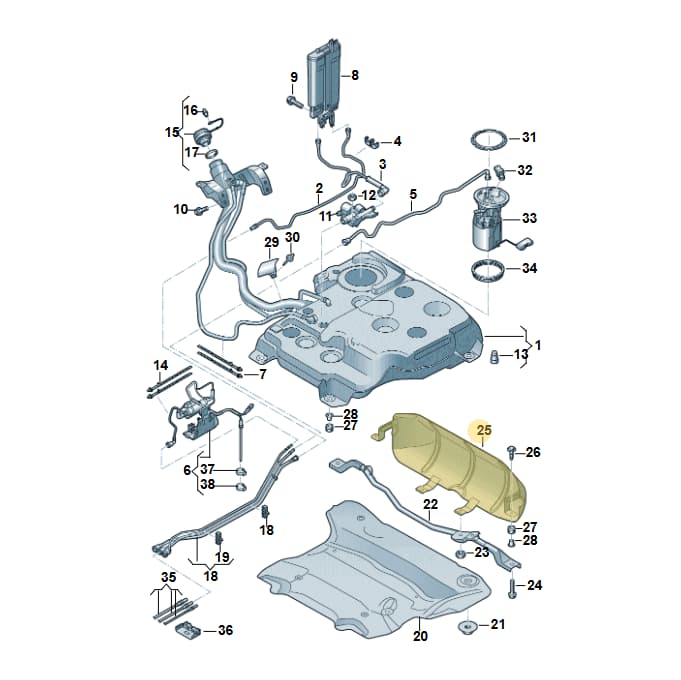

Number 25 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Insulation Sheet, part number 3Q0201307. This part functions to insulate the fuel tank and surrounding components from heat generated by the exhaust or drivetrain. It is located in the fuel system assembly. Genuine OEM heat shields provide effective thermal protection and precise fit.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 83.2 × 26 × 18.5 cm
- Shipping weight
- 3.62 kg
Parts diagram & fitment
4 vehiclesHeat Sh — locate 3Q0201307 Volkswagen Heat Insulation Sheet | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(25)
- 1Fuel Tank 3WA201055B
- 2Line 3WA201931C
- 3Line 3WA201931A
- 4Bracket 3WA201449A
- 5Fuel Line 3WA201293
- 7Bracket N10458501
- 8Container 3WA201797
- 9Bolt N10675602
- 10Bolt N10699801
- 11Regulator 5WA201559
- 12Part N10849001
- 13Insulation 8K0201274B
- 18Fuel Line 3WA201079B
- 19Clip 3WA201449
- 20Heat Sh 3WA201308
- 21Part N91068501
- 22Cross Member 3Q0201259
- 23Collar Nut N10435510
- 26Bolt N91159101
- 27Rubber Bush 3Q0201840
- 28Bush 3Q0201693
- 29Prot Plate 3WA201399
- 30Pop Rivet N90994202
- 31Part 1K0201375
- 32Sensor 5WA201733
Diagrams & fitment data powered by oemdiagrams.com
3Q0201307 Volkswagen Heat Insulation Sheet | Genuine OEM is fitted on: passat estate 2023-; Passat saloon 2014-2024; Arteon 2017-2023; Superb Combi 2015-2024.
