Target · Diagram
Find this reference above

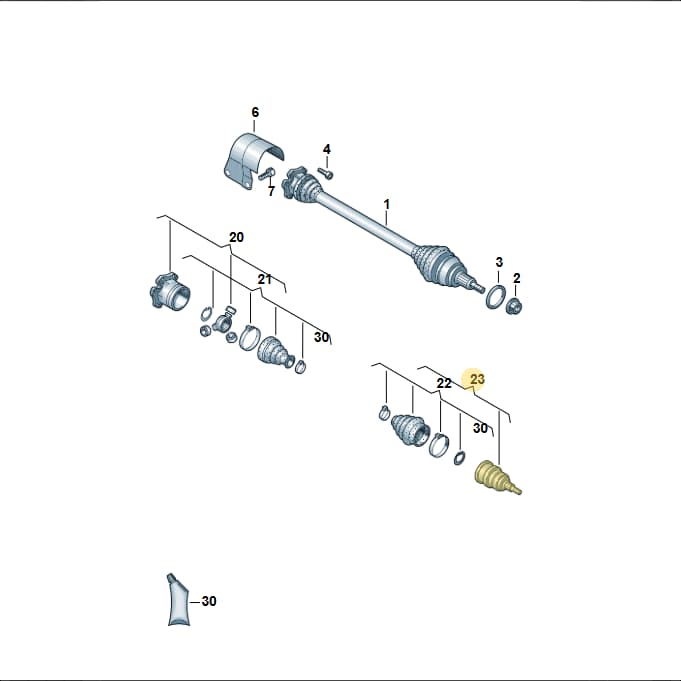

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi/Skoda Outer Joint with Mounting Parts, part number 3Q0498099B. This component is part of the drive axle assembly, specifically the outer joint which connects the driveshaft to the wheel hub. It allows for the transmission of power to the wheels while accommodating suspension movement and steering angles. The part weighs 2.116 kg. Genuine OEM parts ensure precise fitment and durability for smooth power transfer and a comfortable ride.
Technical details
- Category
- Tools & Accessories
- Customs (HS) code
- 87085099
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 16 × 15.5 × 15 cm
- Shipping weight
- 2.12 kg
Parts diagram & fitment

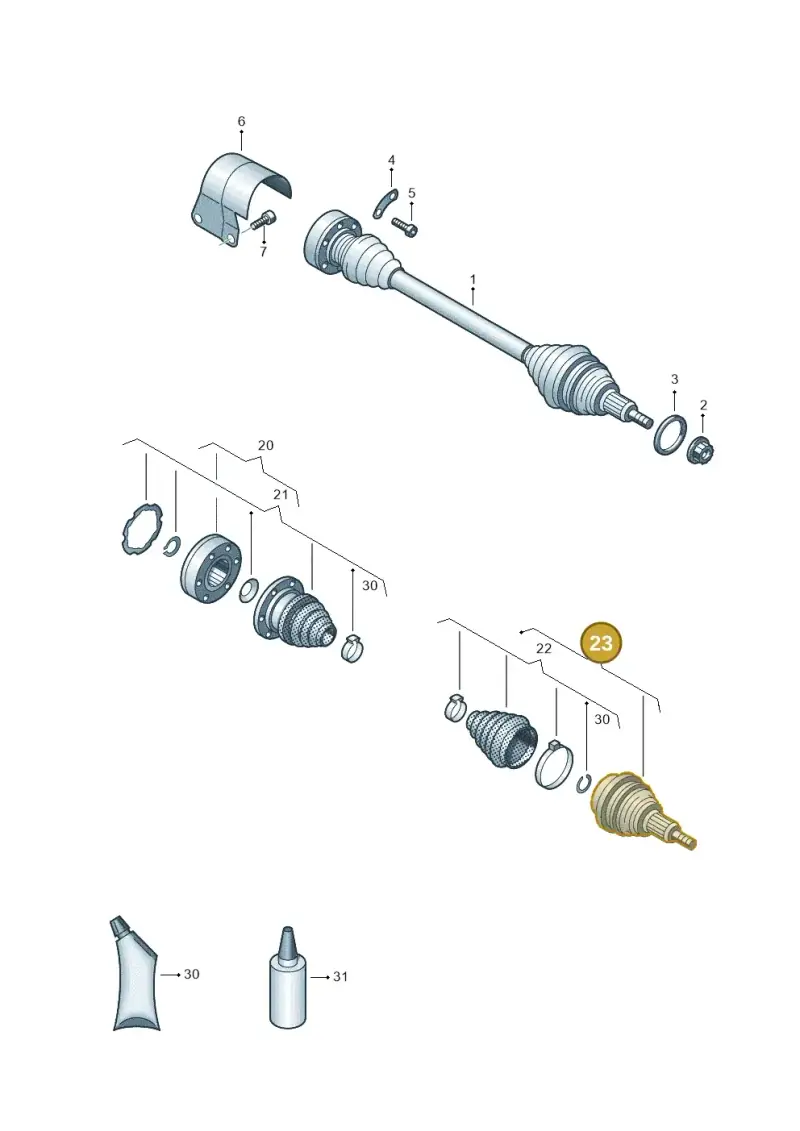

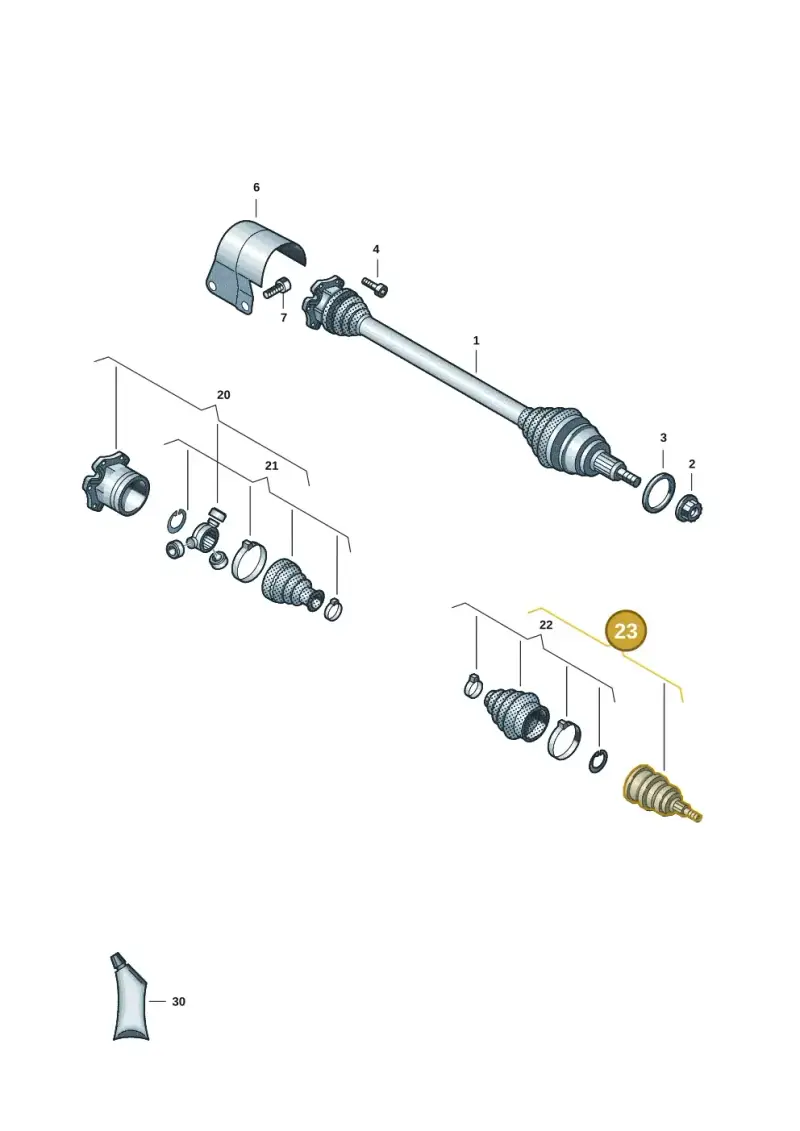

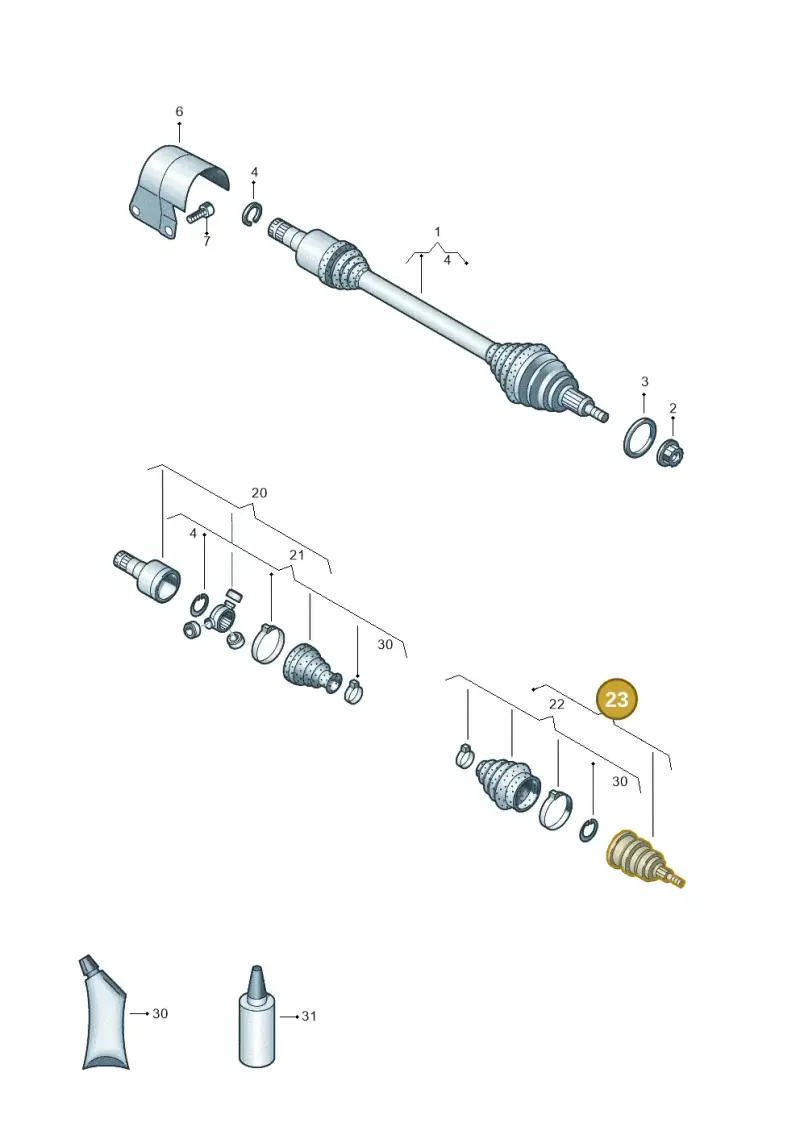

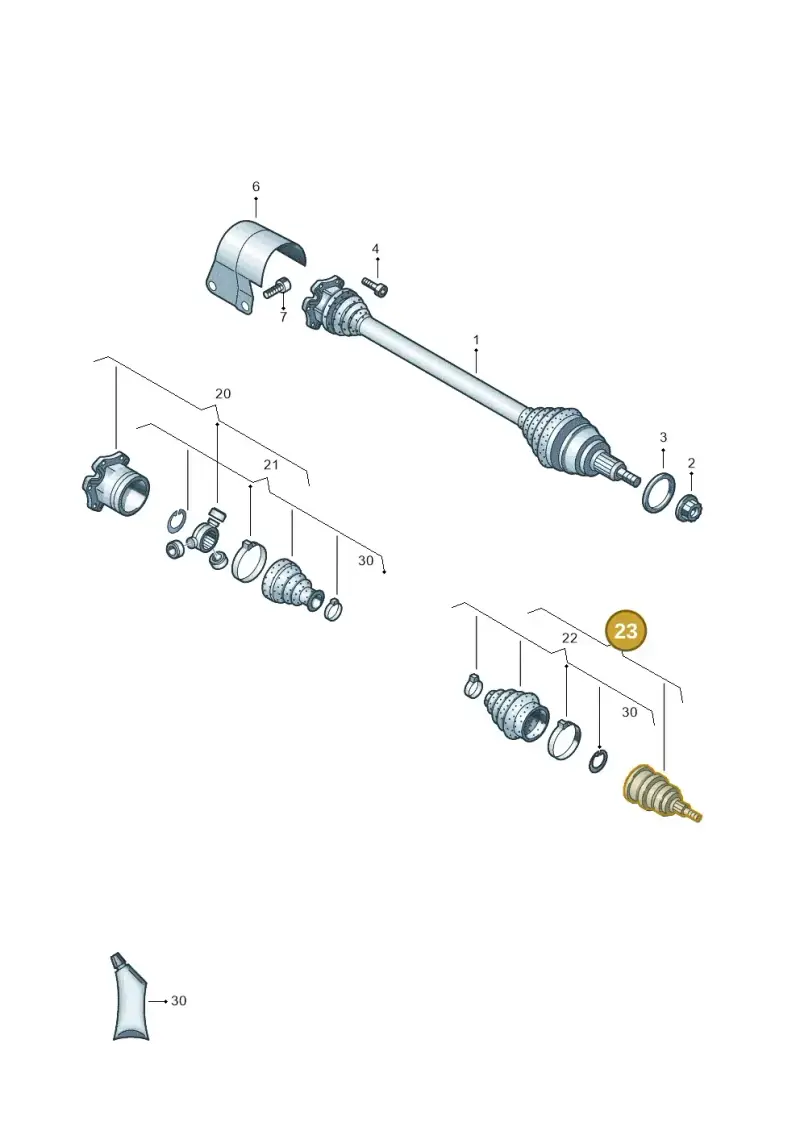

5 vehiclesOuter Joint With Assembly Parts — locate 3Q0498099B Audi/Skoda Drive Axle Joint | Outer in the official exploded view and explore the surrounding assembly.
Parts in this assembly(24)
- 1DriveshaftRight2Q0407272CL
- 1DriveshaftRight2Q0407452JX
- 1DriveshaftLeft2Q0407271BM
- 1JointshaftLeft2Q0407271DD
- 1DriveshaftLeft2Q0407451HX
- 1JointshaftLeft2Q0407451LX
- 2Part 6Q0407396B
- 3Washer 6Q0407623E
- 4Ring 12E407298
- 6Heat Sh 6C0407721
- 7Bolt N10653102
- 20Part 2Q0498103G
- 20Part 2Q0498103GX
- 20Part 2Q0498103J
- 20Part 2Q0498103JX
- 21Part 1EA498201B
- 21Part 2Q0498201J
- 22Part 2Q0498203C
- 22Part 2Q0498203F
- 23Part 2Q0498099H
- 23Part 2Q0498099HX
- 30Grease G052738A2
- 30Grease G052186A3
- 31Lubr Oil G052135A1
Diagrams & fitment data powered by oemdiagrams.com
3Q0498099B Audi/Skoda Drive Axle Joint | Outer is fitted on: Taigo 2021-2024; T-Cross 1,0 2018-2024; Polo 1.0 BlueMotion 2017-2024; Audi A1 sportback 1.0 2018-; Kamiq 2019-.
