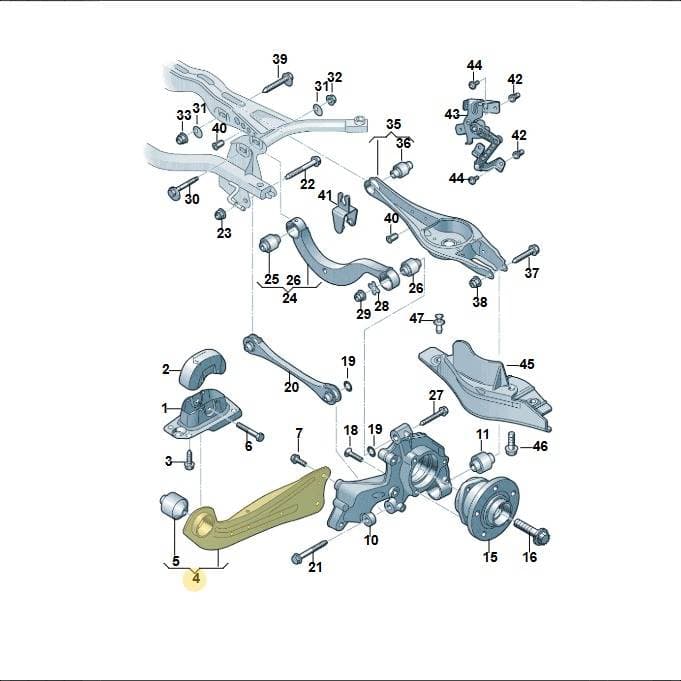

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Rear Axle Guide, part number 3QF505224B. This component is designed to control and guide the movement of the rear axle, ensuring proper alignment. It is positioned at the rear axle assembly. Made from high-strength steel for durability and performance. Genuine OEM axle guides are critical for maintaining vehicle stability and ensuring precise suspension geometry.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87088099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 47.5 × 15 × 7.5 cm
- Shipping weight
- 2.54 kg
Parts diagram & fitment
4 vehiclesAxle Guide — locate 3QF505224B Volkswagen Rear Axle Guide | Genuine OEM in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(45)
- 1Bracket 1K0505130L
- 1Bracket 5QM505130
- 1Bracket 1K0505129L
- 1Bracket 5QM505129
- 2Ap Cover Cap For Bearing Support Cover Cap ForRight5QM501476
- 2Ap Cover Cap For Bearing Support Cover Cap ForLeft5QM501475
- 3Bolt N90648402
- 4Axle GuideLeft3QF505223B
- 5Rubber Bush 3QF505541
- 6Bolt N10769501
- 7Bolt N10628401
- 7Bolt N91268601
- 7Bolt WHT005749
- 10HousingLeft3QF505433A
- 10HousingRight3QF505434A
- 15Wheel Bear 3QF598611
- 15Wheel Bear 3QF598625
- 15Wheel Hub 3QF407621G
- 15Wheel Hub 3QF501611C
- 16Bolt WHT005437A
- 18Ball Screw WHT004835
- 19Ret Washer WHT000724
- 20Track Rod 3QF501529A
- 21Bolt N10640301
- 22Bolt N10628301
- 22Screw N10883401
- 23Collar Nut N10106402
- 24Wishbone 3QF505323B
- 27Bolt N91201301
- 28Washer 1K0505193
- 29Collar Nut N10401801
- 30Bolt WHT000227
- 31Washer WHT000232
- 35Wishbone 3QF505311B
- 37Bolt N10640501
- 39Bolt WHT000228
- 40Part N90920301
- 41Bracket 5Q0614167B
- 42Part N10597701
- 43Sensor 3QG512521
- 44Screw N10569501
- 45Splash GrdRight3QF501734
- 45Splash GrdLeft3QF501733
- 46Bolt N91133501
- 47Spring Rivet 8E0825267
Compatible / alternative parts(3)
- Part 3QF505311B
- Part 3QG505311B
- Part 3QF501529A
Diagrams & fitment data powered by oemdiagrams.com
3QF505224B Volkswagen Rear Axle Guide | Genuine OEM is fitted on: Atlas Cross Sport 2019-2023; Atlas Cross Sport 2023-; Atlas 2023-2024; Atlas 2016-2023.
