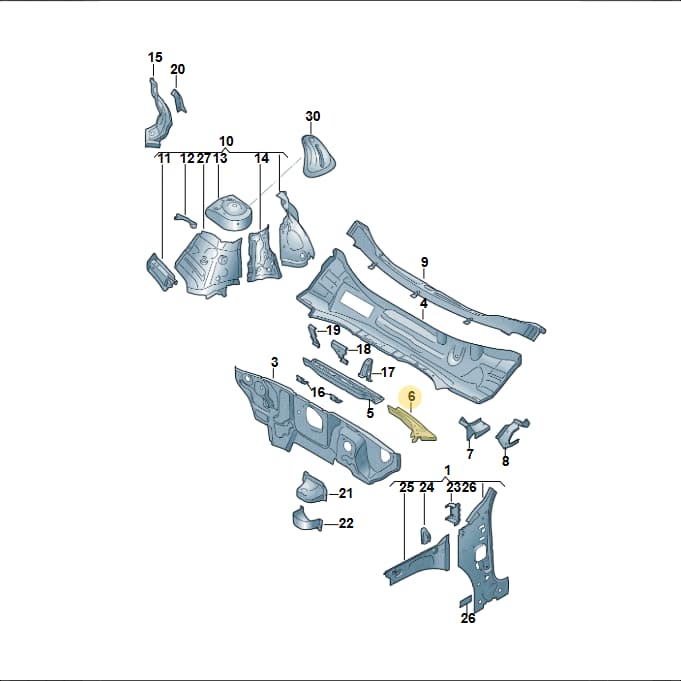

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi Scuttle Panel Support, part number 3QF805398. This structural component is integral to the vehicle's body, providing essential support and reinforcement within the scuttle area, typically located at the base of the windshield. It helps maintain body rigidity and may contribute to the vehicle's rainwater drainage system. Made from robust metal, it weighs approximately 0.626 kg and measures 0.315 meters in length. Choosing a genuine OEM scuttle panel support ensures the correct dimensions, material strength, and precise mounting points for maintaining the vehicle's structural integrity and factory-intended water management.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31.5 × 15 × 9.5 cm
- Shipping weight
- 0.63 kg
Parts diagram & fitment
11 vehiclesWater Box — locate 3QF805398 Audi Scuttle Panel Support | Body Structure in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(41)
- 1Pillar ARight3CN802124
- 1Pillar ALeft3CN802123
- 3Cross Pan 3QF803155
- 4Water Box 3QF805265
- 5Water Box 3QF805277
- 6Water BoxLeft3QF805397
- 7ReinforceRight3QF804912
- 7ReinforceLeft3QF804911
- 8ReinforcementRight3QF803344
- 8ReinforcementLeft3QF803343
- 9Scuttle 3CN802483
- 10Wheel HousingLeft3QF805115
- 10Wheel HousingLeft3QF805115A
- 10Wheel HousingRight3QF805116
- 10Wheel HousingRight3QF805116A
- 11Retainer 3QF810812
- 12Retainer 5QA121409
- 13MountingLeft3QF809121B
- 13MountingRight3QF809122B
- 14ReinforceLeft3QF805077
- 14ReinforceRight3QF805078
- 15Reinforcmt 3QF803489
- 15Reinforcmt 3QF803490
- 16Bracket 1K0805517B
- 17Retainer 3CN805327
- 18Brace 3CN803249
- 19Brace 3CN801337
- 20Clos PlatLeft3QF805085
- 20Clos PlatRight3QF805086
- 21Clos Plat 3QF803177
- 22Clos Plat 3QF803178
- 23ReinforceRight5QA802552
- 23ReinforceLeft5QA802551
- 24Retainer 3CN804413
- 25Side MemberRight3CN805134
- 25Side MemberLeft3CN805133
- 26Bracket 5QA802847
- 27Wheel Housing 3QF805160
- 27Wheel Housing 3QF805160A
- 27Wheel Housing 3QF805159
- 27Wheel Housing 3QF805159A
Diagrams & fitment data powered by oemdiagrams.com
3QF805398 Audi Scuttle Panel Support | Body Structure is fitted on: Atlas Cross Sport 2019-2023; Viloran 2020-2022; Teramont 2021-2023; Teramont X 2021-2023; Viloran 2021-2022; Atlas Cross Sport 2023-; Atlas 2023-2024; Teramont X 2019-2021; Teramont 2016-2021; Atlas 2016-2023; Audi Q6 2022-.
