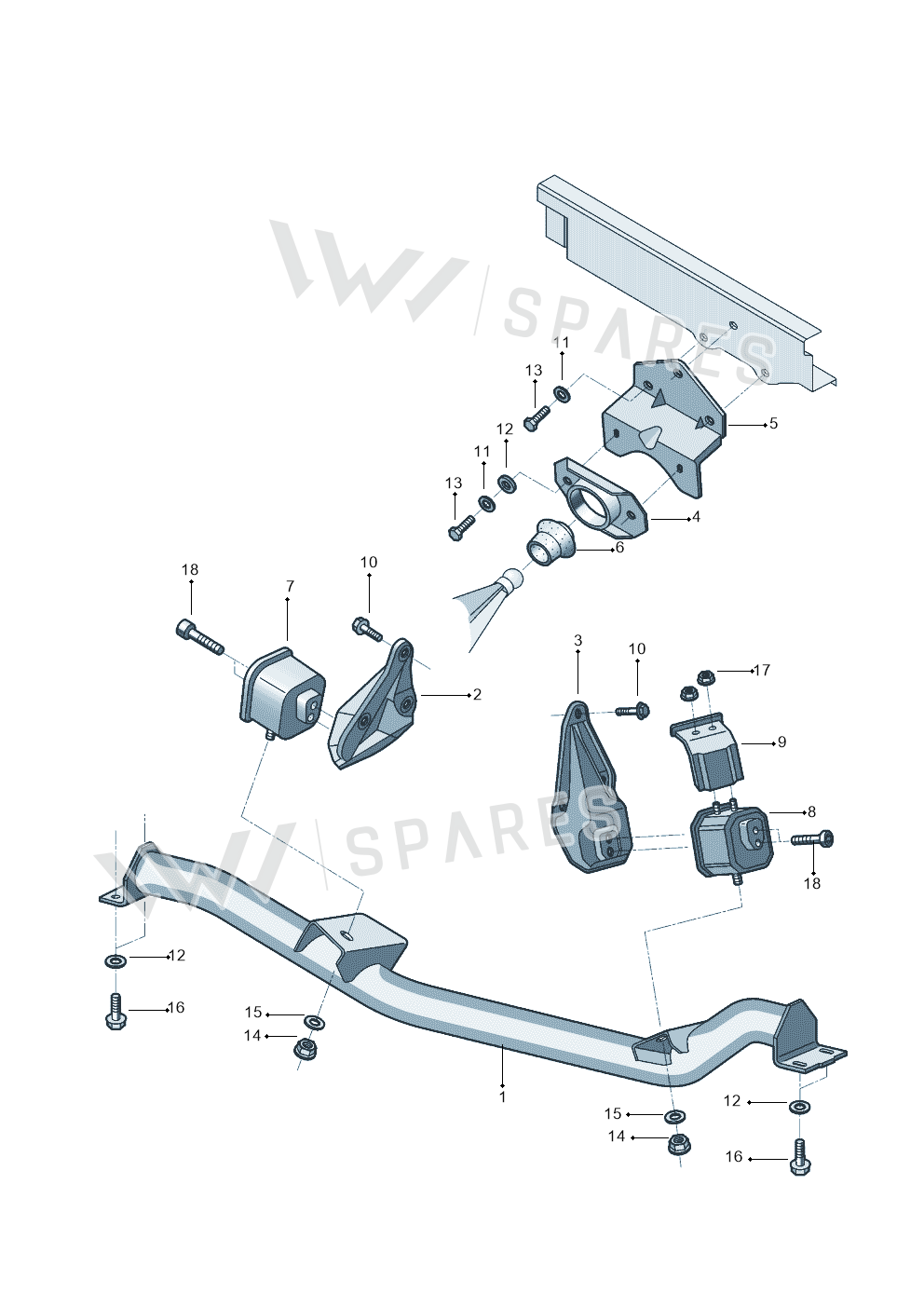

Belleville Spring exploded parts diagram — Kombi · 2011-, position 11
Exploded view
Kombi · 2011- · position 11Full diagram ↓
411399169

411399169 Belleville Spring

€0.10
incl. 21% VAT

€0.08 excl. VAT

Availability: Discontinued — no longer orderable

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

46 vehicles

Belleville Spring — locate Belleville Spring in the official exploded view and explore the surrounding assembly.

Parts in this assembly17
Vehicle fitment table46

Europe (15)

VehicleYearsPos.QtyRemark
Kombi2011-115
KOMBI STANDARD/FURGAO 06>2006-115
Kombi1996-200525
Scirocco1983-19892, 273
CADDY1982-199212, 326
Jetta1981-19842, 273
Scirocco1981-198323
Scirocco1981-198123
PASSAT,-VARIANT/2 811980-19819, 152
Jetta 811980-19812, 273
Scirocco1980-198123
Scirocco1978-198023
Scirocco1976-197824
Scirocco1974-197682
Type 41968-197421, 34

Other markets (29)

VehicleYearsPos.QtyRemark
parati2010-172
GOL 2P/4P M.06>2005-172
SAVEIRO M.06>2005-172
PARATI M.06>2005-172
SANTANA 3000 "CN"04>2004-162
GOL "CN"03>2003-174
GOL 2P/4P2002-2006172
SAVEIRO2002-2006172
PARATI 4P2002-2006172
GOL SPECIAL 2P2002-2005172
CITI GOLF "ZA"M.96>1996-276
SANTANA 2000 "CN"96>041996-2004162
CADDY-PICKUP "ZA" 96>1995-27, 326
TYPE 2 "ZA"1995-200372
NOVA PARATI1995-200217
NOVO GOL/SAVEIRO1994-200216, 172503
Quantum1986-198815, 82
SANTANA/VARIANT "CN"86>1985-162
Quantum syncro1985-198882
Quantum 861985-198615, 82
Quantum 851984-198515, 82
Rabbit Conv./Cabrio1983-19932, 273
Quantum1981-19849, 152
Rabbit Conv.1981-198323
Rabbit Conv. 811980-198123
Rabbit/Jetta1978-19802, 283
Rabbit Conv.1978-198023
Rabbit1976-19782, 384
Rabbit1974-19769, 84

Platform / generic diagrams (2)

VehicleYearsPos.QtyRemark
325 platform7
377 platform172

Diagrams & fitment data powered by oemdiagrams.com

Belleville Spring is fitted on: Kombi 2011-; KOMBI STANDARD/FURGAO 06> 2006-; Kombi 1996-2005; Scirocco 1983-1989; CADDY 1982-1992; Jetta 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; PASSAT,-VARIANT/2 81 1980-1981; Jetta 81 1980-1981; Scirocco 1980-1981; Scirocco 1978-1980; Scirocco 1976-1978; Scirocco 1974-1976; Type 4 1968-1974; parati 2010-; GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; PARATI M.06> 2005-; SANTANA 3000 "CN"04> 2004-; GOL "CN"03> 2003-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; GOL SPECIAL 2P 2002-2005; CITI GOLF "ZA"M.96> 1996-; SANTANA 2000 "CN"96>04 1996-2004; CADDY-PICKUP "ZA" 96> 1995-; TYPE 2 "ZA" 1995-2003; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; Quantum 1986-1988; SANTANA/VARIANT "CN"86> 1985-; Quantum syncro 1985-1988; Quantum 86 1985-1986; Quantum 85 1984-1985; Rabbit Conv./Cabrio 1983-1993; Quantum 1981-1984; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980; Rabbit 1976-1978; Rabbit 1974-1976; 325 platform; 377 platform.
