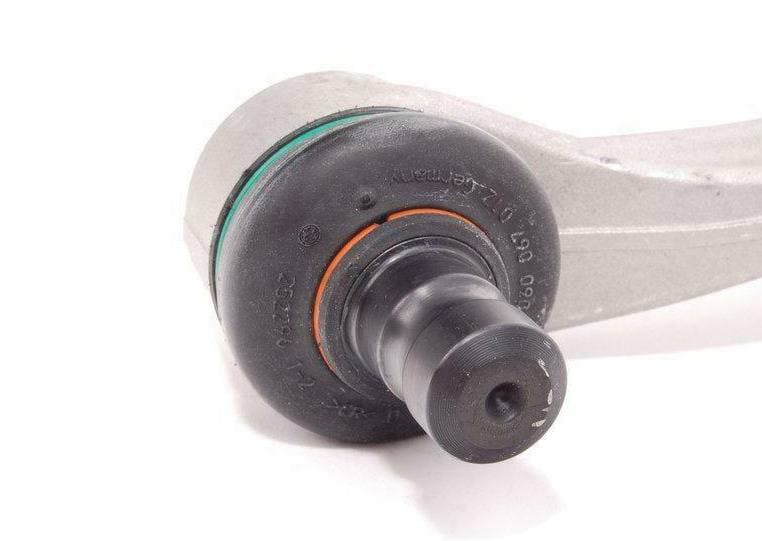

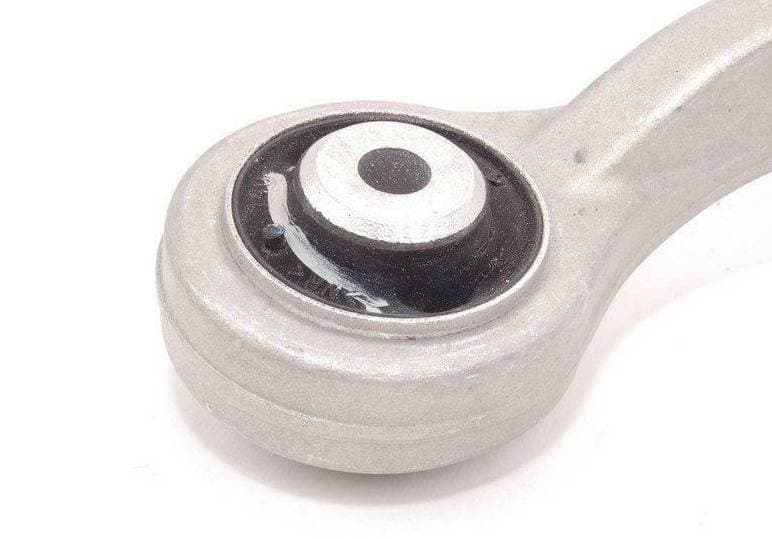

4E0407509F Audi Upper Rear Control Arm Guide
Guides the movement of the control arm.
• Genuine OEM part • Condition: New • Part number: 4E0407509F • Part type: Upper Rear Control Arm Guide • Position: Front • Position: Rear
Verify fitment by VIN or matching the part number before ordering.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87089435
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31 × 8.2 × 5.5 cm
- Shipping weight
- 0.62 kg
Parts diagram & fitment
3 vehiclesGuide — locate 4E0407509F Audi Upper Rear Control Arm Guide in the official exploded view and explore the surrounding assembly.
Parts in this assembly(44)
- 1Wishbone 4E0407151L
- 2Rubber Bush 4E0407181B
- 3Rubber Bush 4E0407182C
- 4Part 4D0407183AC
- 4Rubber Bush 4E0407183J
- 4Part 4E0407183H
- 5Bolt N90625902
- 6Collar Nut N10106402
- 7Bolt N91016602
- 8Screw WHT001480
- 9Collar Nut N10272302
- 9AUt Hexagon Nut Self-locking Hexagon Nut N90892302
- 10Bolt N10576802
- 12HousingRight4E0407254Q
- 12HousingLeft4E0407253Q
- 13WishboneLeft4E0407505F
- 13GuideRight4E0407506E
- 13WishboneRight4E0407506F
- 13GuideLeft4E0407505E
- 14Guide 4E0407510E
- 14Guide 4E0407510F
- 14Guide 4E0407509E
- 15Rubber Bush 4E0407515D
- 15Rubber Bush 8D0407515C
- 16Bolt N10425302
- 17Collar Nut N10286110
- 18Wheel Hub 4E0407613C
- 19Screw 8E0407643A
- 20Part N90965602
- 21GuideLeft4E0407693R
- 21GuideRight4E0407694R
- 22Bolt N90966002
- 23Anti-roll 4E0411305AA
- 23Anti-roll 4E0411305AB
- 23Anti-roll 4E0411305AC
- 24Coupl Rod 4E0411317E
- 25Bolt N10516702
- 27Screw N10563402
- 29Bracket 4E0412383F
- 31Ball Screw WHT000237A
- 33Washer 3D0412145A
- 34Bolt N91001202
- 36Wheel Bear 4E0498625B
- 41Assemb Lub G294421A1
Compatible / alternative parts(3)
Diagrams & fitment data powered by oemdiagrams.com
4E0407509F Audi Upper Rear Control Arm Guide is fitted on: Audi A8/S8/qu. lang 2003-2007; Audi A8/S8/qu. lang 08> 2007-; Audi RS6 Avant qu.5.0 2007-2010.
