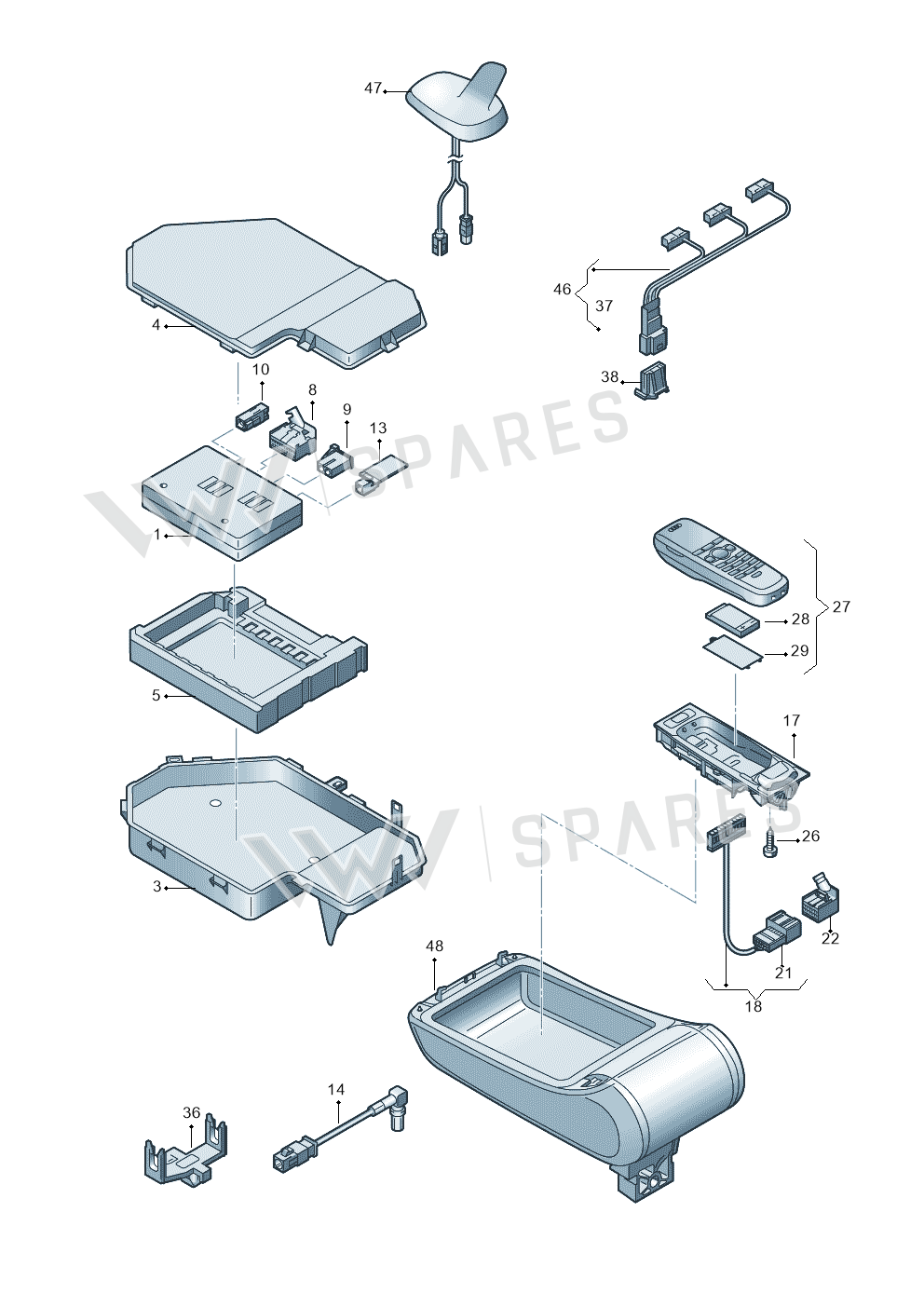

Battery exploded parts diagram — AUDI A6L "CN"05> · 2005-, position 28
Exploded view
AUDI A6L "CN"05> · 2005- · position 28Full diagram ↓
4E0861473

4E0861473 Battery

€77.61
incl. 21% VAT

€64.14 excl. VAT

Supersession roadoldest to newest
  1. 4E0861473This pageNot stocked
    Jan 2009
  2. 4E0861473ANot stocked
    Nov 2012
  3. 4E0861473BCurrent number
Current part number4E0861473BWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Battery — locate Battery in the official exploded view and explore the surrounding assembly.

Parts in this assembly20
Vehicle fitment table1

Other markets (1)

VehicleYearsPos.Qty
AUDI A6L "CN"05>2005-281

Diagrams & fitment data powered by oemdiagrams.com

Battery is fitted on: AUDI A6L "CN"05> 2005-.
