Product overview
Genuine OEM Audi Oil Reservoir, part number 4F0115374F. This reservoir is part of the engine's oil circulation system, storing oil for the lubrication system. It is located in the engine bay, connected to the oil cooler and pump. Genuine OEM ensures correct material and sealing for leak-free operation.
Technical details
- Category
- Fluids & Filters
- Customs (HS) code
- 84099100
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32 × 25 × 35 cm
- Shipping weight
- 5.9 kg

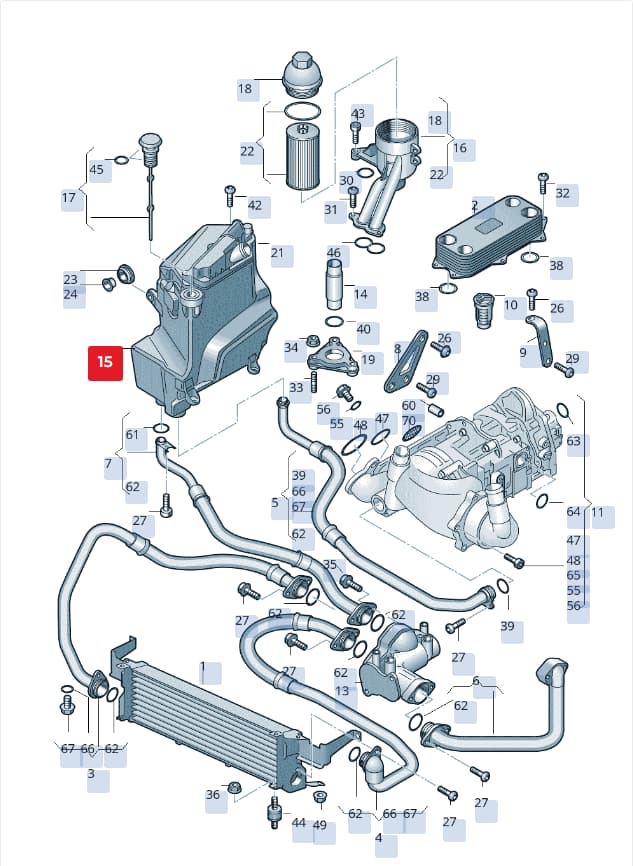

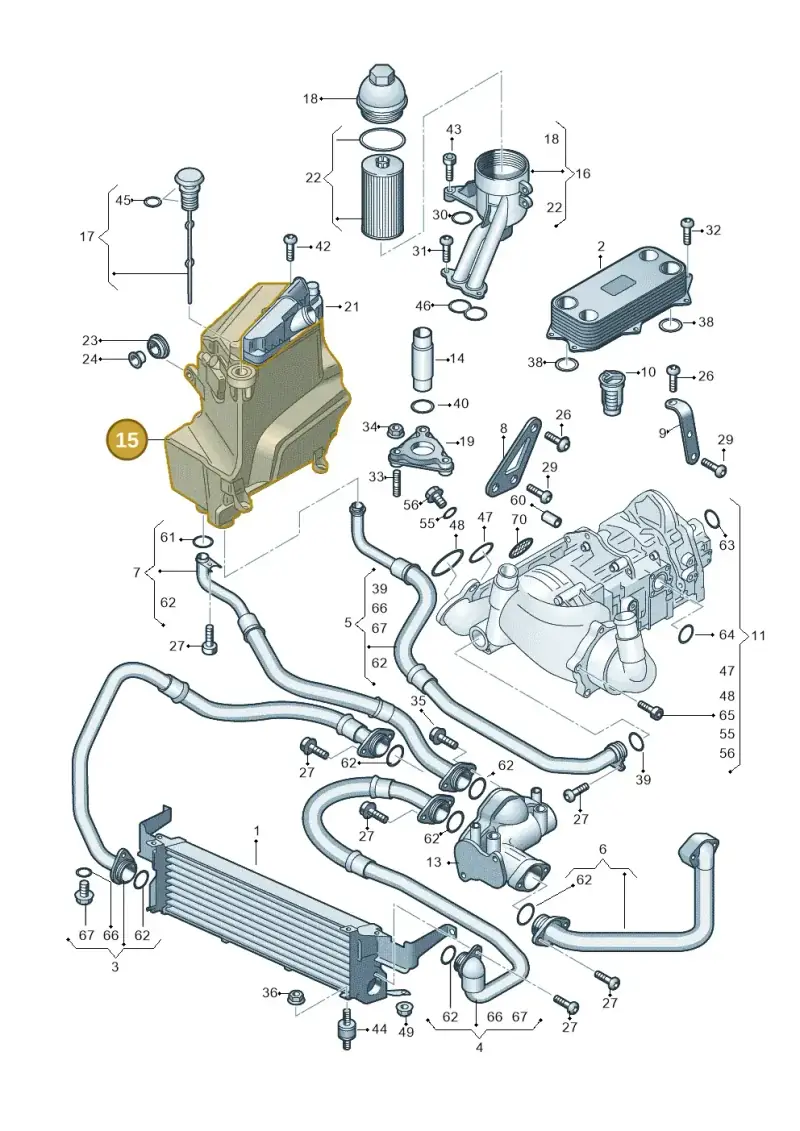

Parts diagram & fitment
1 vehicleOil Container — locate 4F0115374F Audi Oil Reservoir | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Oil Cooler 07L117021L
- 2Oil Cooler 07L117021J
- 3Line 4F0117315A
- 4Line 4F0117316A
- 4Line 4F0117316B
- 5Line 4F0117317A
- 6Line 4F0117318A
- 7Line 4F0117319A
- 7Line 4F0117319B
- 8Bracket 07L115318G
- 9Bracket 07L115318H
- 10Valve 079117409F
- 11Oil Pump 07L115009AD
- 12Clutch 07L115138H
- 13Thermostat 4F0115201B
- 14Pipe 07L115467B
- 16Bracket 07L115401F
- 16Bracket 07L115401E
- 17Oil Dipsti 4F0115607A
- 18Cover 079115433D
- 18Cover 079115433A
- 19Cover 07L103707A
- 21Separator 4F0115099A
- 22Filterelem 079198405E
- 22Filterelem 079198405B
- 23Grommet 8Z0129669A
- 24Spacer 6N0129734
- 25Seal Ring N0138157
- 26Screw N91026802
- 27Bolt N10124408
- 28Screw N10347003
- 29Bolt N10451408
- 30Seal Ring N10538201
- 31Bolt N10622101
- 32Bolt N10124306
- 33Bolt N0145455
- 34Collar Nut N01508213
- 35Screw N90355903
- 36Part N90488005
- 37Bolt N90813202
- 38Seal Ring N90958101
- 39Seal Ring N90969401
- 40Seal Ring N90460801
- 41Seal Ring N91014901
- 42Bolt N91096701
- 43Screw N91124501
- 44Rubber Bush 803121275
- 45Seal Ring WHT002641
Diagrams & fitment data powered by oemdiagrams.com
4F0115374F Audi Oil Reservoir | Genuine OEM is fitted on: Audi RS6 Avant qu.5.0 2007-2010.
